R114720000

Active

Radiall USA, Inc.

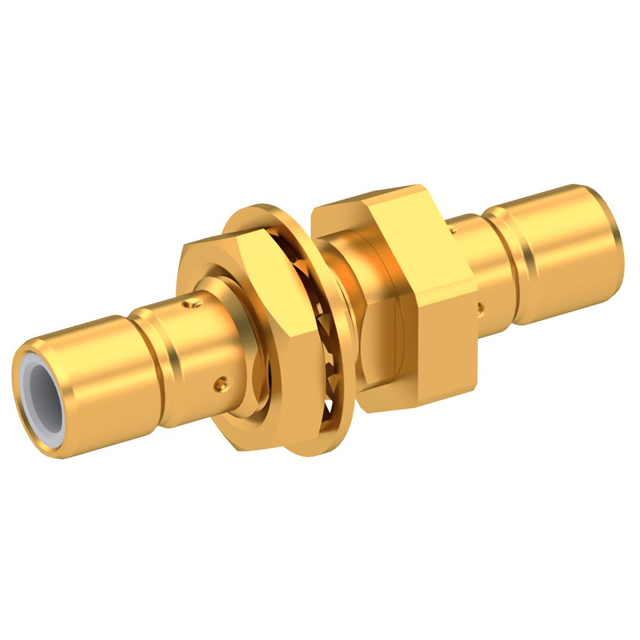

SMB / BULKHEAD MALE-MALE ADAPTER

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMB / BULKHEAD MALE-MALE ADAPTER

Technical Specifications

Parameters and characteristics for this part

Specification	R114720000

Adapter Series	SMB to SMB
Adapter Type	Jack to Jack
Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Center Gender	Male to Male
Conversion Type	Same Series
Convert From (Adapter End)	SMB Jack, Male Pin
Convert To (Adapter End)	Male Pin, SMB Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Operating Temperature [Min]	Operating Temperature [Max]	Adapter Type	Body Material	Fastening Type	Center Gender	Mating Cycles	Conversion Type	Impedance	Body Finish	Frequency - Max [Max]	Mounting Feature	Convert To (Adapter End)	Center Contact Plating	Convert From (Adapter End)	Style	Adapter Series	Dielectric Material	Center Contact Material
Radiall USA, Inc. R114720000	-65 ░C	165 °C	Jack to Jack	Brass	Snap-On	Male to Male	500	Same Series	50 Ohms	Gold	4 GHz	Bulkhead	Male Pin SMB Jack	Gold	SMB Jack Male Pin	Straight	SMB to SMB	Polytetrafluoroethylene (PTFE)	Brass
Radiall USA, Inc. R114720000W	-65 ░C	165 °C	Jack to Jack	Brass	Snap-On	Male to Male	500	Same Series	50 Ohms	Gold	4 GHz	Bulkhead	Male Pin SMB Jack	Gold	SMB Jack Male Pin	Straight	SMB to SMB	Polytetrafluoroethylene (PTFE)	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMB Jack, Male Pin To SMB Jack, Male Pin 50 Ohms
