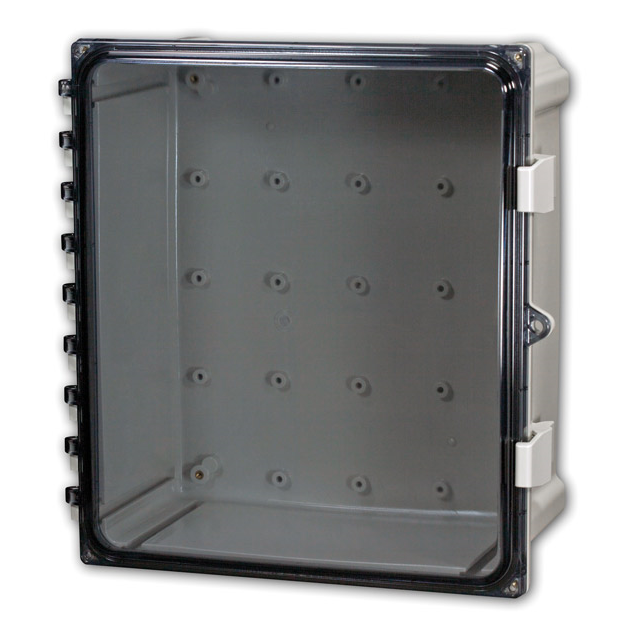

AH10106C

Active

Attabox

ENCLOSURE PC 10.82"L X 10.82"W

Search across all available documentation for this part.

Active

Attabox

ENCLOSURE PC 10.82"L X 10.82"W

Technical Specifications

Parameters and characteristics for this part

Specification	AH10106C

Area (L x W) [custom]	117 in²
Area (L x W) [custom]	755 cm²
Color	Gray, Clear Cover/Door
Container Type	Enclosure
Design	Cover Included
Features	Hinged, Lockable, Latches
Height [z]	6.97 in
Height [z]	177.04 mm
Material	Plastic, Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Ratings	NEMA 1, IP66, NEMA 6P, NEMA 4, NEMA 3R, NEMA 4X, NEMA 12, IP68
Size / Dimension [x]	10.82 in
Size / Dimension [x]	274.83 mm
Size / Dimension [y]	274.83 mm
Size / Dimension [y]	10.82 in
Thickness	0.14 in
Thickness	3.56 mm

ENCLOSURE PC 10.82"L X 10.82"W

Part	Container Type	Thickness	Thickness	Area (L x W) [custom]	Area (L x W) [custom]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Design	Material Flammability Rating	Material	Ratings	Color	Features	Height [z]	Height [z]
Attabox AH10106C	Enclosure	0.14 in	3.56 mm	117 in²	755 cm²	10.82 in	274.83 mm	10.82 in	274.83 mm	Cover Included	UL94 V-0	Plastic, Polycarbonate (PC)	IP66, IP68, NEMA 1, NEMA 12, NEMA 3R, NEMA 4, NEMA 4X, NEMA 6P	Clear Cover/Door, Gray	Hinged, Latches, Lockable	6.97 in	177.04 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 152.85

General part information

Enclosure Plastic, Polycarbonate (PC) Gray, Clear Cover/Door Cover Included 10.820" L x 10.820" W (274.83mm x 274.83mm) X 6.970" (177.04mm)
