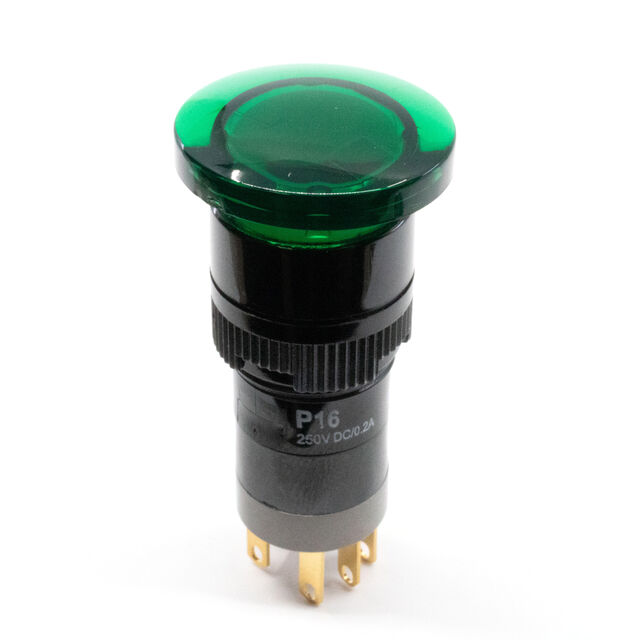

P16OAR1KGRNGRN

Active

E-Switch

SWITCH: PUSH-BUTTON; POS: 2; SPST NC + NO; 5A/250VAC; 6A/24VDC

Search across all available documentation for this part.

Active

E-Switch

SWITCH: PUSH-BUTTON; POS: 2; SPST NC + NO; 5A/250VAC; 6A/24VDC

Technical Specifications

Parameters and characteristics for this part

Specification	P16OAR1KGRNGRN

Actuator Marking	No Marking
Actuator Type	Mushroom, Button, Round
Circuit	SPDT
Color - Actuator/Cap	Green
Current Rating (Amps)	8 A, 6 A
Electrical Life	50000 Cycles
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	24 V
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-Mom
Termination Style	Quick Connect - 0.110" (2.8mm)
Type	Illuminated, Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	24 V

Part	Circuit	Panel Cutout Dimensions [diameter]	Termination Style	Illumination Voltage (Nominal)	Illumination Type, Color	Switch Function	Actuator Marking	Type	Electrical Life	Color - Actuator/Cap	Actuator Type	Voltage Rating - DC	Current Rating (Amps)	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Mechanical Life
E-Switch P16OAR1HREDRED	SPDT	16 mm	Quick Connect - 0.110" (2.8mm)	6 V	LED Red	On-Mom	No Marking	Illuminated Standard	50000 Cycles	Red	Button Mushroom Round	24 V	6 A 8 A	125 V	55 °C	-20 C	Panel Mount Front	100000 Cycles
E-Switch P16OAR1CRED	SPDT	16 mm	Quick Connect - 0.110" (2.8mm)	28 VAC/DC	Incandescent Red	On-Mom	No Marking	Illuminated Standard	50000 Cycles	Red	Button Mushroom Round	24 V	6 A 8 A	125 V	55 °C	-20 C	Panel Mount Front	100000 Cycles
E-Switch P16OAR1KREDRED	SPDT	16 mm	Quick Connect - 0.110" (2.8mm)	24 V	LED Red	On-Mom	No Marking	Illuminated Standard	50000 Cycles	Red	Button Mushroom Round	24 V	6 A 8 A	125 V	55 °C	-20 C	Panel Mount Front	100000 Cycles
E-Switch P16OAR1KGRNGRN	SPDT	16 mm	Quick Connect - 0.110" (2.8mm)	24 V	Green LED	On-Mom	No Marking	Illuminated Standard	50000 Cycles	Green	Button Mushroom Round	24 V	6 A 8 A	125 V	55 °C	-20 C	Panel Mount Front	100000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Front
