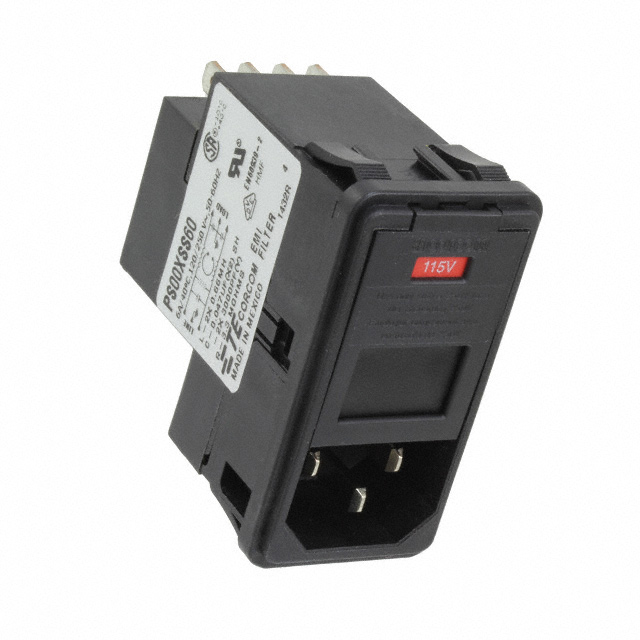

PS00XSS60

Active

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	PS00XSS60

Accomodates a Fuse	True
Approval Agency	UL, VDE, CSA
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	6 A
Current Rating - Filter	6 A
Features	Voltage Selector, Conversion Clip
Filter Type	Filtered (EMI, RFI) - Commercial
Fuse Holder, Drawer	Fuse Holder
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions	Variable Size
Panel Thickness [Max]	2.9 mm
Panel Thickness [Max]	0.114 in
Panel Thickness [Min]	0.79 mm
Panel Thickness [Min]	0.031 "
Termination	0.187 "
Termination	4.7 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	120 VAC

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Approval Agency	Connector Type	Current Rating - Appliance Inlet	Current Rating - Filter	Connector Style	Filter Type	Features	Panel Cutout Dimensions	Accomodates a Fuse	Termination	Termination	Termination	Mounting Type	Voltage Rating - Appliance Inlet	Fuse Holder, Drawer
TE Connectivity Corcom Filters PS00XSS60	2.9 mm	0.114 in	0.79 mm	0.031 "	CSA, UL, VDE	Receptacle, Male Blades - Module	6 A	6 A	IEC 320-C14	Filtered (EMI, RFI) - Commercial	Conversion Clip, Voltage Selector	Variable Size		0.187 "	4.7 mm	Quick Connect	Panel Mount, Snap-In	120 VAC	Fuse Holder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	80	$ 20.80

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
