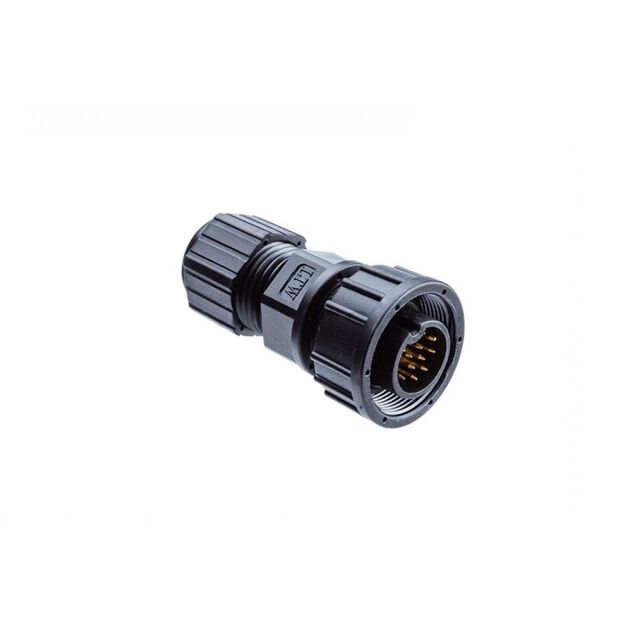

CD-08BFMA-SL7001

Active

Amphenol LTW

CERES, MIDDLE SIZE, PLASTIC, 5A, 08 PINS, FEMALE CONNECTOR, MALE CONTACT, STRAIGHT, SCREW THREAD, SOLDER, FIELD INSTALLABLE, 4.0

Search across all available documentation for this part.

Active

Amphenol LTW

CERES, MIDDLE SIZE, PLASTIC, 5A, 08 PINS, FEMALE CONNECTOR, MALE CONTACT, STRAIGHT, SCREW THREAD, SOLDER, FIELD INSTALLABLE, 4.0

Technical Specifications

Parameters and characteristics for this part

Specification	CD-08BFMA-SL7001

Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	8
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	C
Shielding	Unshielded

Part	Connector Type	Number of Positions	Voltage Rating	Insert Material	Backshell Material, Plating	Features	Color	Contact Finish - Mating	Primary Material	Orientation	Termination	Shielding	Ingress Protection	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Mounting Type	Shell Size - Insert	Contact Type	Contact Shape	Note	Type	Housing Color	Shell Material
Amphenol LTW CD-08BFMA-QL8AP0	Male Pins Plug	8	300 VDC	Thermoplastic	Thermoplastic	Backshell	Black	Gold	Plastic	Keyed	Crimp	Unshielded	IP68 - Dust Tight Waterproof	Copper Alloy	-40 °C	105 ░C	5 A	Free Hanging (In-Line)	C
Amphenol LTW CD-08BFMA-QL8AN0	Plug Housing	8		Thermoplastic		Backshell			Plastic	Keyed		Unshielded	IP68 - Dust Tight Waterproof		-40 °C	105 ░C		Free Hanging (In-Line)	C	Crimp	Circular	Contacts Not Included	For Male Pins	Black
Amphenol LTW CD-08BFMA-SL7001	Male Pins Plug	8		Polyamide (PA) Nylon Glass Filled	Nylon Polyamide (PA)	Backshell Coupling Nut	Black	Gold	Plastic	Keyed		Unshielded	IP67 - Dust Tight Waterproof	Copper Alloy				Free Hanging (In-Line)	C						Glass Filled Nylon Polyamide (PA)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Circular Connector Plug, Male Pins Solder Cup
