3-1393670-9

Active

TE Connectivity AMP Connectors

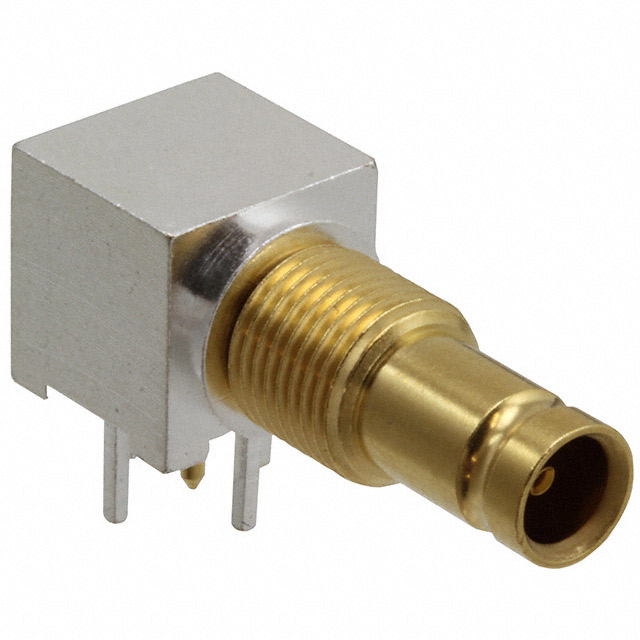

CONN 1.0/2.3 JACK R/A 50 OHM PCB

Deep-Dive with AI

Search across all available documentation for this part.

3-1393670-9

Active

TE Connectivity AMP Connectors

CONN 1.0/2.3 JACK R/A 50 OHM PCB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

1393670 Series

1.0/2.3 Connector Jack, Female Socket 50 Ohms Through Hole, Right Angle Solder

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3-1393670-9	1393670 Series

Body Finish	Silver	Silver, Nickel
Body Material	Brass	Brass
Cable Group	-	2YCY 0.45/2.0, RG-174, RG-189B, RG-179B, 316, RG-179
Center Contact Material	Beryllium Copper	Beryllium Copper, Brass, Bronze
Center Contact Plating	Gold	Gold
Connector Style	1.0/2.3	1.0/2.3
Connector Type	Female Socket, Jack	Male Pin, Plug, Female Socket, Jack
Contact Termination	Solder	Crimp, Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull	Push-Pull, Latch Lock
Frequency - Max [Max]	10 GHz	2 - 10 GHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 - 75 Ohms
Includes	-	1 Ferrule, 1 Contact, 1 Connector, Contact, Nut, Connector, Ferrule, 1 Nut
Mating Cycles	500	500
Mounting Feature	-	Bulkhead - Front Side Nut, Bulkhead
Mounting Type	Through Hole, Right Angle	Free Hanging (In-Line), Through Hole, Right Angle, Right Angle, Through Hole, Panel Mount
Number of Ports	1	1
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Shield Termination	Solder	Crimp, Solder
Voltage Rating	-	350 V

1393670 Series

CONN 1.0/2.3 PLG STR 75OHM CRIMP

Part	Connector Type	Mounting Type	Contact Termination	Mating Cycles	Number of Ports	Frequency - Max [Max]	Connector Style	Includes	Fastening Type	Shield Termination	Impedance	Center Contact Material	Body Finish	Body Material	Center Contact Plating	Housing Color	Dielectric Material	Cable Group	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Feature
TE Connectivity AMP Connectors 8-1393670-4	Male Pin, Plug	Free Hanging (In-Line)	Crimp	500	1	2 GHz	1.0/2.3	1 Connector, 1 Contact, 1 Ferrule	Push-Pull	Crimp	75 Ohms
TE Connectivity AMP Connectors 3-1393670-9	Female Socket, Jack	Through Hole, Right Angle	Solder	500	1	10 GHz	1.0/2.3		Push-Pull	Solder	50 Ohms	Beryllium Copper	Silver	Brass	Gold	Silver	Polytetrafluoroethylene (PTFE)
TE Connectivity AMP Connectors 7-1393670-0	Male Pin, Plug	Free Hanging (In-Line), Right Angle	Solder	500	1	2 GHz	1.0/2.3		Push-Pull	Crimp	75 Ohms	Brass			Gold		Polytetrafluoroethylene (PTFE)	2YCY 0.45/2.0
TE Connectivity AMP Connectors 8-1393670-9	Male Pin, Plug	Free Hanging (In-Line)	Crimp	500	1	2 GHz	1.0/2.3	1 Connector, 1 Contact, 1 Ferrule	Push-Pull	Crimp	75 Ohms	Beryllium Copper			Gold		Polytetrafluoroethylene (PTFE)
TE Connectivity AMP Connectors 6-1393670-0	Male Pin, Plug	Free Hanging (In-Line)	Solder		1	10 GHz	1.0/2.3		Latch Lock	Crimp	75 Ohms	Beryllium Copper	Nickel	Brass	Gold		Polytetrafluoroethylene (PTFE)	RG-174	85 °C	-40 °C
TE Connectivity AMP Connectors 9-1393670-4	Male Pin, Plug	Free Hanging (In-Line)	Crimp	500	1	2 GHz	1.0/2.3	1 Connector, 1 Contact, 1 Ferrule	Push-Pull	Crimp	75 Ohms	Beryllium Copper			Gold		Polytetrafluoroethylene (PTFE)
TE Connectivity AMP Connectors 4-1393670-0	Female Socket, Jack	Through Hole, Right Angle	Solder	500	1	10 GHz	1.0/2.3		Push-Pull	Solder	50 Ohms	Beryllium Copper	Silver	Brass	Gold	Silver	Polytetrafluoroethylene (PTFE)
TE Connectivity AMP Connectors 8-1393670-0	Female Socket, Jack		Solder	500	1	2 GHz	1.0/2.3	Connector, Contact, Ferrule, Nut	Push-Pull	Crimp	75 Ohms	Beryllium Copper			Gold		Polytetrafluoroethylene (PTFE)	RG-189B			Bulkhead - Front Side Nut
TE Connectivity AMP Connectors 6-1393670-2	Male Pin, Plug	Free Hanging (In-Line)	Solder	500	1	2 GHz	1.0/2.3	1 Connector, 1 Contact, 1 Ferrule	Push-Pull	Crimp	75 Ohms	Beryllium Copper, Brass			Gold		Polytetrafluoroethylene (PTFE)	RG-179B
TE Connectivity AMP Connectors 6-1393670-6	Male Pin, Plug	Free Hanging (In-Line)	Crimp	500	1	2 GHz	1.0/2.3	1 Connector, 1 Contact, 1 Ferrule	Push-Pull	Crimp	75 Ohms	Beryllium Copper			Gold		Polytetrafluoroethylene (PTFE)
