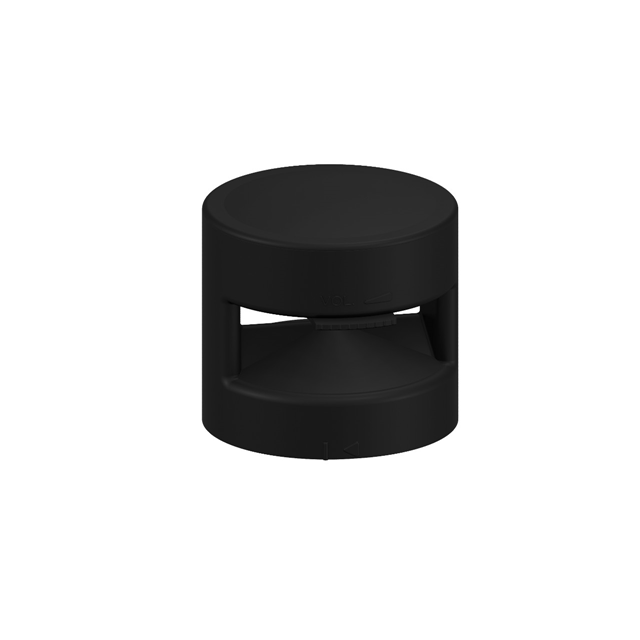

SG-TL70-AL-16

Obsolete

BANNER ENGINEERING

AUDIBLE MODULE, MULTIPLE TONE, 101DB/30V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet +1

SG-TL70-AL-16

Obsolete

BANNER ENGINEERING

AUDIBLE MODULE, MULTIPLE TONE, 101DB/30V

Deep-Dive with AI

DocumentsDatasheet Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SG-TL70-AL-16

Features	Adjustable Volume
Function - Audible	Multiple
Ingress Protection	IP65 - Dust Tight, Water Resistant
Number of Stacks	1
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-40 °C
Termination Style	Wire Leads
Type	Acoustic Element
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	12 V

SG-TL70 Series

Part	Number of Stacks	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Light Color	Features	Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Termination Style	Function - Lighting	Function - Audible
BANNER ENGINEERING SG-TL70-GR	2	-40 °C	50 °C	IP65 - Dust Tight Water Resistant	Green Red	Dip Switch	Complete Unit	12 V	30 VDC	Wire Leads	Flashing Steady
BANNER ENGINEERING SG-TL70-B	1	-40 °C	50 °C	IP65 - Dust Tight Water Resistant			Optical Element	12 V	30 VDC	Wire Leads	Flashing Steady
BANNER ENGINEERING SG-TL70-G	1	-40 °C	50 °C	IP65 - Dust Tight Water Resistant	Green		Optical Element	12 V	30 VDC	Wire Leads	Flashing Steady
BANNER ENGINEERING SG-TL70-AL	1	-40 °C	50 °C	IP65 - Dust Tight Water Resistant		Adjustable Volume	Acoustic Element	12 V	30 VDC	Wire Leads		Multiple
BANNER ENGINEERING SG-TL70-GYR	3	-40 °C	50 °C	IP65 - Dust Tight Water Resistant	Green Red Yellow		Optical Element	12 V	30 VDC	Wire Leads	Flashing Steady
BANNER ENGINEERING SG-TL70-RGB14-16	1	-40 °C	50 °C	IP65 - Dust Tight Water Resistant	Blue Green Red		Optical Element	12 V	30 VDC	Wire Leads	Flashing Steady
BANNER ENGINEERING SG-TL70-DXN2	1	-40 °C	50 °C	IP65 - Dust Tight Water Resistant			Acoustic Element	12 V	30 VDC	Wire Leads
BANNER ENGINEERING SG-TL70-W-L	1	-40 °C	50 °C	IP65 - Dust Tight Water Resistant	White	Dip Switch	Optical Element	12 V	30 VDC	Wire Leads	Flashing Steady
BANNER ENGINEERING SG-TL70-WC	1	-40 °C	50 °C	IP65 - Dust Tight Water Resistant	White	Dip Switch	Optical Element	12 V	30 VDC	Wire Leads	Flashing Steady
BANNER ENGINEERING SG-TL70-AL-16	1	-40 °C	50 °C	IP65 - Dust Tight Water Resistant		Adjustable Volume	Acoustic Element	12 V	30 VDC	Wire Leads		Multiple

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SG-TL70 Series

Stack Light Acoustic Element Adjustable Volume Wire Leads

Documents

Technical documentation and resources

Datasheet

Drawing EN

Datasheet
