Technical Specifications
Parameters and characteristics for this part
| Specification | STEVAL-MKI236A |
|---|---|
| Contents | Board(s) |
| Function | Accelerometer, Gyroscope |
| Interconnect System | DIL24 |
| Platform | Professional MEMS Tool |
| Primary Attributes | ±1000, ±250, ±125, ±4000, ±8, ±4, ±500, ±16, ±2000, ±2 |
| Secondary Attributes | I2C/SPI Interface(s) |
| Suggested Programming Environment | Unico |
| Type | Sensor |
| Utilized IC / Part | ASM330LHB |
STEVAL-MKI243A Series
2xASM330LHBG1 adapter board for a standard DIL24 socket
| Part | Platform | Type | Contents | Suggested Programming Environment | Utilized IC / Part | Function | Interconnect System | Primary Attributes | Secondary Attributes |
|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics | Professional MEMS Tool | Sensor | Board(s) | Unico | ASM330LHBG1 | Accelerometer Gyroscope | DIL24 | ||
STMicroelectronics | Professional MEMS Tool | Sensor | Board(s) | Unico | ASM330LHHXG1 | Accelerometer Gyroscope | DIL24 | ||
STMicroelectronics | Professional MEMS Tool | Sensor | Board(s) | Unico | ASM330LHB | Accelerometer Gyroscope | DIL24 | ±1000 ±125 ±16 ±2 ±2000 ±250 ±4 ±4000 ±500 ±8 | I2C/SPI Interface(s) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 15.96 | |
Description
General part information
STEVAL-MKI243A Series

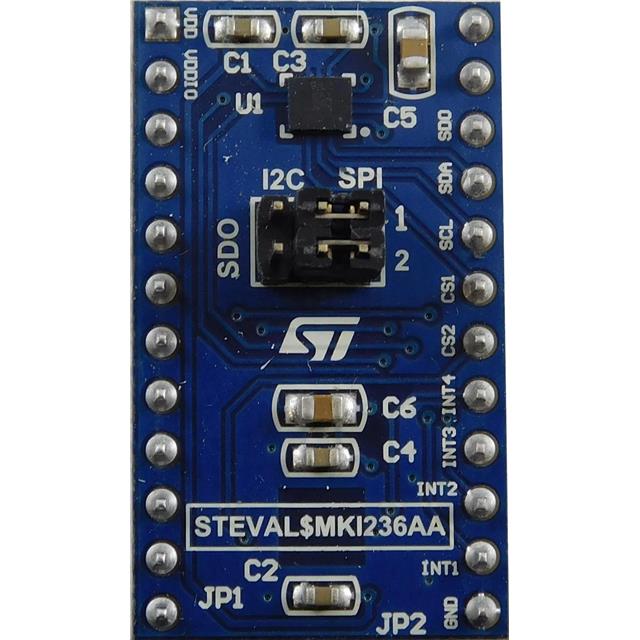

The STEVAL-MKI236A is an adapter board designed to facilitate the evaluation of the ASM330LHB in the MEMS and sensors product portfolio. The board offers an effective solution for fast system prototyping and device evaluation directly within the user’s own application.
The STEVAL-MKI236A can be plugged into a standard DIL24 socket. The adapter provides the complete ASM330LHB pinout and comes ready-to-use with the required decoupling capacitors on the VDD and VDDIO power supply lines.
This adapter is supported by the STEVAL-MKI109V3 motherboard, which includes a high-performance 32-bit microcontroller functioning as a bridge between the sensor and a PC.
