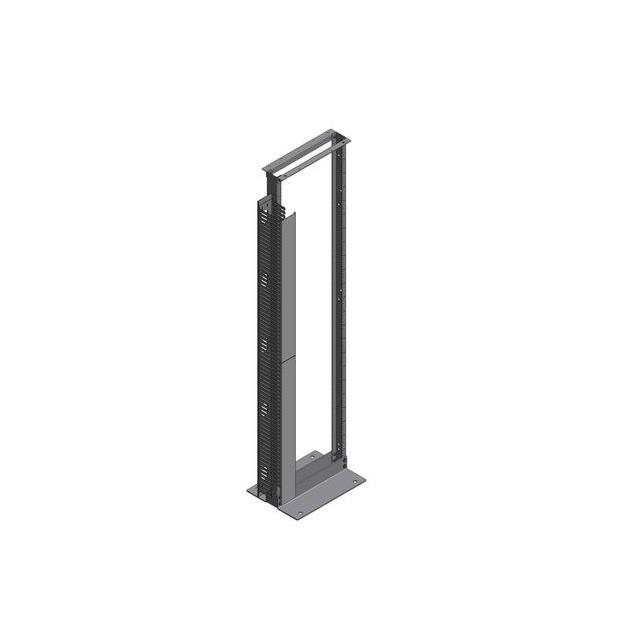

XDR8419-310N1M

Active

Belden Inc.

RELAY RACK 84"X 19" MTG 3"CHAN

Search across all available documentation for this part.

Active

Belden Inc.

RELAY RACK 84"X 19" MTG 3"CHAN

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XDR8419-310N1M	XDR8419 Series

Color	Black	Black
Dimensions - Overall [z]	84 "	84 "
Dimensions - Overall [z]	2133.6 mm	2133.6 mm
Door	Doorless	Doorless
Material	Metal, Steel	Metal, Steel
Mounting Rails	One Pair	One Pair, Two Pair
Number of Units	45 U	45 U
Style	Single Frame, Open Rack	Single Frame, Open Rack, Open Rack, Double Frame
Type	Open Rack	Open Rack

RELAY RACK 84"X 19" MTG 3"CHAN

Part	Color	Number of Units	Type	Mounting Rails	Dimensions - Overall [z]	Dimensions - Overall [z]	Door	Style	Material
Belden Inc. XDR8419-310N2M	Black	45 U	Open Rack	One Pair	84 "	2133.6 mm	Doorless	Open Rack, Single Frame	Metal, Steel
Belden Inc. XDR8419-312N	Black	45 U	Open Rack	One Pair	84 "	2133.6 mm	Doorless	Open Rack, Single Frame	Metal, Steel
Belden Inc. XDR8419-310W	Black	45 U	Open Rack	One Pair	84 "	2133.6 mm	Doorless	Open Rack, Single Frame	Metal, Steel
Belden Inc. XDR8419-3122836	Black	45 U	Open Rack	Two Pair	84 "	2133.6 mm	Doorless	Open Rack, Double Frame	Metal, Steel
Belden Inc. XDR8419-312N1M	Black	45 U	Open Rack	One Pair	84 "	2133.6 mm	Doorless	Open Rack, Single Frame	Metal, Steel
Belden Inc. XDR8419-310-W	Black	45 U	Open Rack	One Pair	84 "	2133.6 mm	Doorless	Open Rack, Single Frame	Metal, Steel
Belden Inc. XDR8419-3102836	Black	45 U	Open Rack	Two Pair	84 "	2133.6 mm	Doorless	Open Rack, Double Frame	Metal, Steel
Belden Inc. XDR8419-312N2M	Black	45 U	Open Rack	One Pair	84 "	2133.6 mm	Doorless	Open Rack, Single Frame	Metal, Steel
Belden Inc. XDR8419-312W	Black	45 U	Open Rack	One Pair	84 "	2133.6 mm	Doorless	Open Rack, Single Frame	Metal, Steel
Belden Inc. XDR8419-310N1M	Black	45 U	Open Rack	One Pair	84 "	2133.6 mm	Doorless	Open Rack, Single Frame	Metal, Steel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 408.86

General part information

Metal, Steel Open Rack Open Rack, Single Frame 84.000" H (2133.60mm) Black
