PHT-123-01-L-S

Active

Samtec Inc.

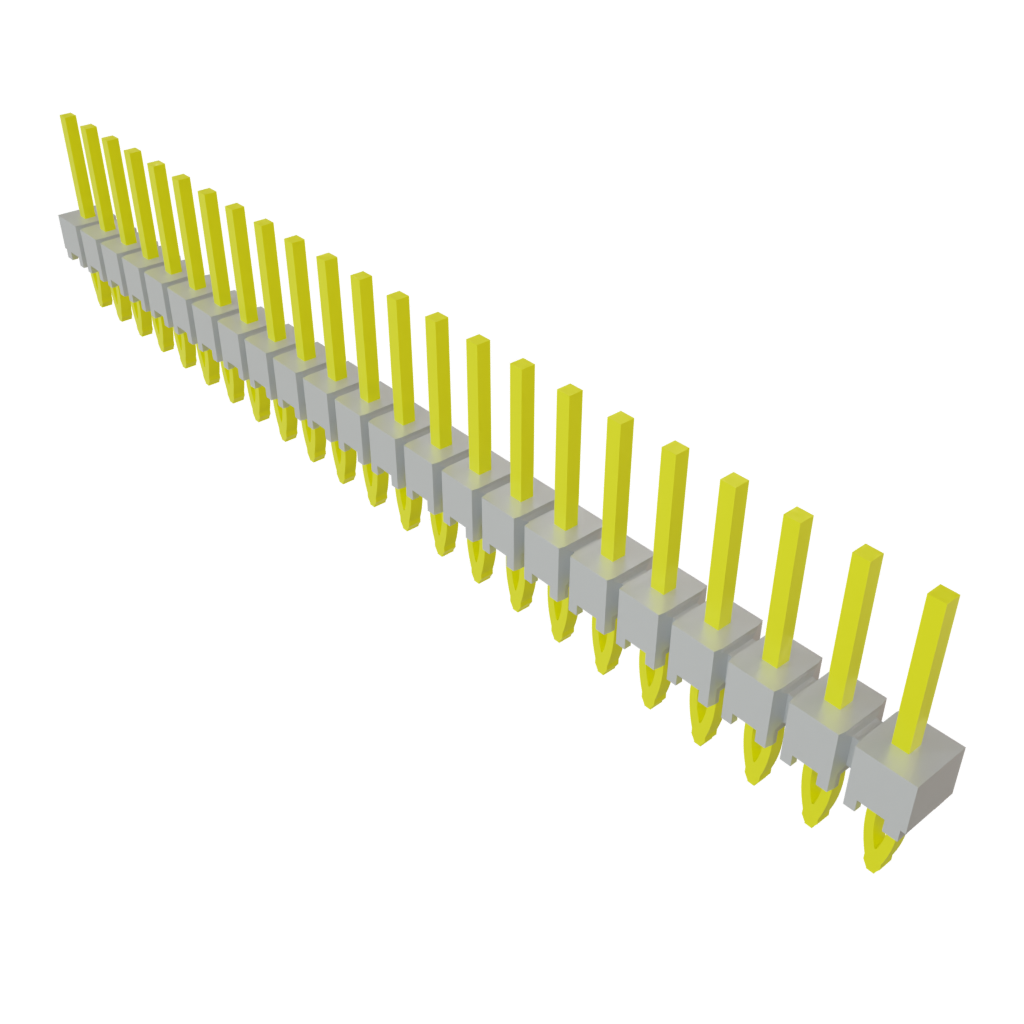

CONN UNSHROUDED HEADER HDR 23 POS 2.54MM PRESS FIT ST TOP ENTRY THRU-HOLE TUBE

Search across all available documentation for this part.

Active

Samtec Inc.

CONN UNSHROUDED HEADER HDR 23 POS 2.54MM PRESS FIT ST TOP ENTRY THRU-HOLE TUBE

Technical Specifications

Parameters and characteristics for this part

Specification	PHT-123-01-L-S

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post	0.122 "
Contact Length - Post	3.1 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	4.8 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	23
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.452 "
Overall Contact Length	11.48 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Termination	Solder, Press-Fit

Part	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating [x]	Contact Length - Mating	Material Flammability Rating	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Insulation Height	Insulation Height	Contact Type	Termination	Insulation Material	Number of Positions Loaded	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length	Number of Positions	Pitch - Mating	Pitch - Mating	Fastening Type	Contact Shape	Insulation Color	Connector Type	Shrouding	Contact Finish - Mating	Mounting Type
Samtec Inc. PHT-123-01-L-S	Phosphor Bronze	10 çin	0.25 çm	0.23 in	5.84 mm	UL94 V-0	1	-55 °C	125 °C	Tin	0.1 in	2.54 mm	Male Pin	Press-Fit Solder	Liquid Crystal Polymer (LCP)	All	4.8 A	0.122 "	3.1 mm	0.452 "	11.48 mm	23	0.1 in	2.54 mm	Push-Pull	Square	Black	Header	Unshrouded	Gold	Through Hole
