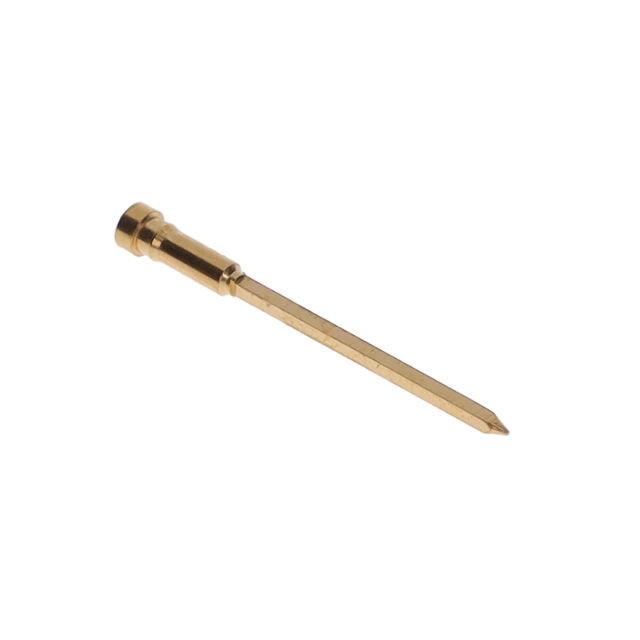

1030-3-17-15-32-27-02-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .015-.025 PRESSFIT

Deep-Dive with AI

Search across all available documentation for this part.

1030-3-17-15-32-27-02-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .015-.025 PRESSFIT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1030-3-17-15-32-27-02-0

Accepts Pin Diameter [Max]	0.025 "
Accepts Pin Diameter [Max]	0.64 mm
Accepts Pin Diameter [Min]	0.015 "
Accepts Pin Diameter [Min]	0.38 mm
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Brass Alloy
Flange Diameter [diameter]	1.83 mm
Flange Diameter [diameter]	0.072 in
Mounting Hole Diameter [diameter]	0.057 "
Mounting Hole Diameter [diameter]	1.45 mm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Socket Depth	0.162 in
Socket Depth	4.12 mm
Tail Diameter	0.64 mm
Tail Diameter	0.025 in
Tail Type	Wire Wrap
Termination	Press-Fit

1030-3 Series

Part	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Termination	Tail Diameter	Tail Diameter	Tail Type	Socket Depth	Socket Depth	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Flange Diameter [diameter]	Flange Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness
Mill-Max Manufacturing Corp. 1030-3-17-01-32-14-02-0	Brass Alloy	-55 °C	125 °C	Gold	Press-Fit	0.64 mm	0.025 in	Wire Wrap	0.162 in	4.12 mm	0.025 "	0.64 mm	0.015 "	0.38 mm	1.83 mm	0.072 in	0.057 "	1.45 mm	10 Áin	0.25 Ám
Mill-Max Manufacturing Corp. 1030-3-05-80-00-00-01-0	Brass Alloy				Press-Fit										1.83 mm	0.072 in	0.057 "	1.45 mm
Mill-Max Manufacturing Corp. 1030-3-17-15-30-27-02-0	Brass Alloy	-55 °C	125 °C	Gold	Press-Fit	0.64 mm	0.025 in	Wire Wrap	0.162 in	4.12 mm	0.025 "	0.64 mm	0.015 "	0.38 mm	1.83 mm	0.072 in	0.057 "	1.45 mm	30 Áin	0.76 Ám
Mill-Max Manufacturing Corp. 1030-3-17-01-30-02-02-0	Brass Alloy	-55 °C	125 °C	Tin-Lead	Press-Fit	0.64 mm	0.025 in	Wire Wrap	0.162 in	4.12 mm	0.025 "	0.64 mm	0.015 "	0.38 mm	1.83 mm	0.072 in	0.057 "	1.45 mm	100 µin	2.54 µm
Mill-Max Manufacturing Corp. 1030-3-17-01-32-02-02-0	Brass Alloy	-55 °C	125 °C	Tin-Lead	Press-Fit	0.64 mm	0.025 in	Wire Wrap	0.162 in	4.12 mm	0.025 "	0.64 mm	0.015 "	0.38 mm	1.83 mm	0.072 in	0.057 "	1.45 mm	100 µin	2.54 µm
Mill-Max Manufacturing Corp. 1030-3-05-21-00-00-01-0	Brass Alloy	-55 °C	125 °C	Unplated	Press-Fit	0.64 mm	0.025 in	Wire Wrap	0.162 in	4.12 mm					1.83 mm	0.072 in	0.057 "	1.45 mm
Mill-Max Manufacturing Corp. 1030-3-05-01-00-00-01-0	Brass Alloy	-55 °C	125 °C	Unplated	Press-Fit	0.64 mm	0.025 in	Wire Wrap	0.162 in	4.12 mm					1.83 mm	0.072 in	0.057 "	1.45 mm
Mill-Max Manufacturing Corp. 1030-3-17-15-32-27-02-0	Brass Alloy	-55 °C	125 °C	Gold	Press-Fit	0.64 mm	0.025 in	Wire Wrap	0.162 in	4.12 mm	0.025 "	0.64 mm	0.015 "	0.38 mm	1.83 mm	0.072 in	0.057 "	1.45 mm	30 Áin	0.76 Ám
Mill-Max Manufacturing Corp. 1030-3-05-15-00-00-01-0	Brass Alloy	-55 °C	125 °C	Unplated	Press-Fit	0.64 mm	0.025 in	Wire Wrap	0.162 in	4.12 mm					1.83 mm	0.072 in	0.057 "	1.45 mm
Mill-Max Manufacturing Corp. 1030-3-17-01-30-14-02-0	Brass Alloy	-55 °C	125 °C	Gold	Press-Fit	0.64 mm	0.025 in	Wire Wrap	0.162 in	4.12 mm	0.025 "	0.64 mm	0.015 "	0.38 mm	1.83 mm	0.072 in	0.057 "	1.45 mm	10 Áin	0.25 Ám
