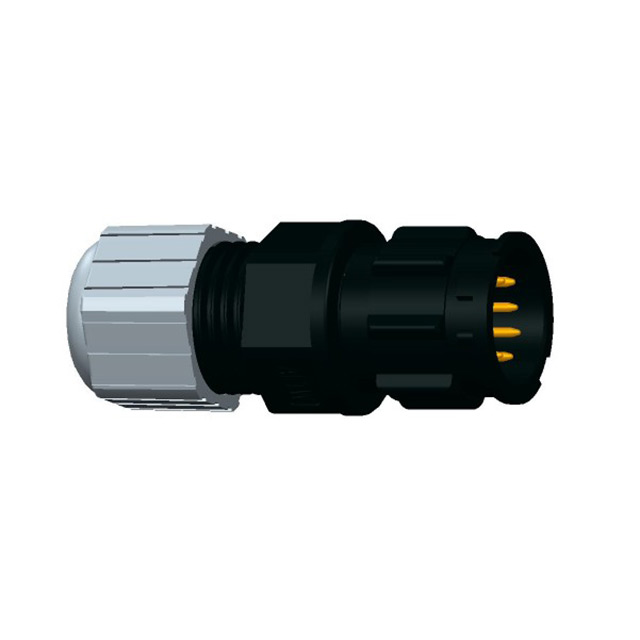

CD-10BMMA-LL7001

Active

Amphenol LTW

CONN RCPT MALE 10P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CD-10BMMA-LL7001

Active

Amphenol LTW

CONN RCPT MALE 10P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CD-10BMMA-LL7001

Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Number of Positions	10
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Size - Insert	C
Shielding	Unshielded

CD-10BMMA Series

Part	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Insert Material	Connector Type	Contact Finish - Mating	Orientation	Number of Positions	Features	Voltage Rating	Ingress Protection	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Termination	Shell Size - Insert	Shielding	Current Rating (Amps)	Contact Material	Material Flammability Rating	Color	Primary Material	Fastening Type	Contact Type	Housing Color	Shell Size, MIL	Type	Contact Shape	Note	Backshell Material, Plating
Amphenol LTW CD-10BMMA-QL8SP0	Glass Filled Nylon Polyamide (PA)	-40 °C	105 ░C	Free Hanging (In-Line)	Polyamide (PA) Nylon Glass Filled	Male Pins Plug	Gold	Keyed	10	Backshell	300 VAC	IP68 - Dust Tight Waterproof	8 mm	6 mm	0.315 in	0.236 in	Crimp	C	Unshielded	5 A	Copper Alloy	UL94 V-0	Black	Plastic	Push-Pull
Amphenol LTW CD-10BMMA-QL8MN0		-40 °C	105 ░C	Free Hanging (In-Line)	Thermoplastic	Plug Housing		Keyed	10	Backshell		IP68 - Dust Tight Waterproof							Unshielded					Plastic	Bayonet Lock	Crimp	Black	C	For Male Pins	Circular	Contacts Not Included
Amphenol LTW CD-10BMMA-QL8AP0		-40 °C	105 ░C	Free Hanging (In-Line)	Thermoplastic	Male Pins Plug	Gold	Keyed	10	Backshell	300 VDC	IP68 - Dust Tight Waterproof					Crimp	C	Unshielded	5 A	Copper Alloy		Black	Plastic	Bayonet Lock							Thermoplastic
Amphenol LTW CD-10BMMA-LL7001		-40 °C	105 ░C	Free Hanging (In-Line)		Male Pins Receptacle	Gold	Keyed	10	Backshell		IP67 - Dust Tight Waterproof						C	Unshielded	5 A	Copper Alloy		Black		Bayonet Lock							Nylon Polyamide (PA)
Amphenol LTW CD-10BMMA-QL8MP0	Glass Filled Nylon Polyamide (PA)	-40 °C	105 ░C	Free Hanging (In-Line)	Polyamide (PA) Nylon Glass Filled	Male Pins Plug	Gold	Keyed	10	Backshell	300 VAC	IP68 - Dust Tight Waterproof	10 mm	8 mm	0.394 in	0.315 in	Crimp	C	Unshielded	5 A	Copper Alloy	UL94 V-0	Black	Plastic	Push-Pull

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.00
		20	$ 7.97
		40	$ 7.36
		100	$ 7.20

Description

General part information

CD-10BMMA Series

10 Position Circular Connector Receptacle, Male Pins Solder Cup
