M85049/38-13A

Active

Amphenol Interconnect India

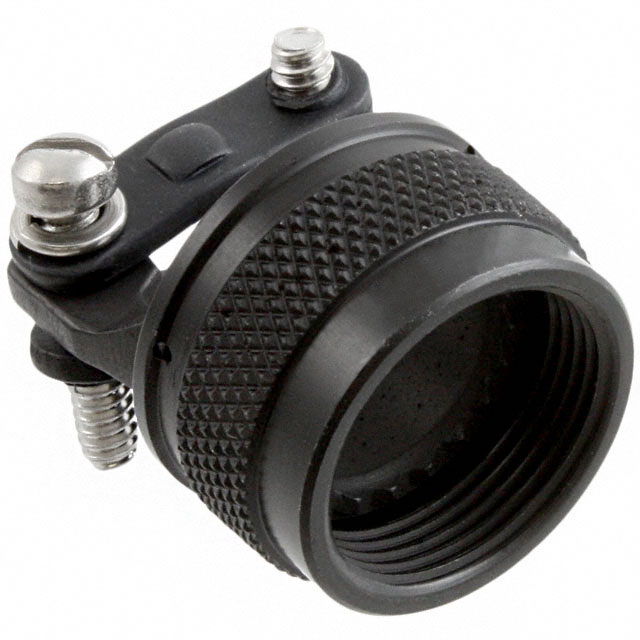

CONN CABLE CLAMP SZ 13 BLACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M85049/38-13A

Active

Amphenol Interconnect India

CONN CABLE CLAMP SZ 13 BLACK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.75
		1	$ 210.57
		10	$ 13.08
		25	$ 12.57
		50	$ 12.07
		100	$ 11.40
		250	$ 10.39
		500	$ 9.72
		1000	$ 8.92

Description

General part information

M85049 Series

Black Connector Cable Clamp 13

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M85049/38-13A	M85049 Series

	-	-
Cable Exit	180 °	45 - 180 °
Cable Opening	-	0.38 - 31.75 mm
Cable Opening	-	0.13 - 1.25 in
Cable Opening	-	0.13 - 1.19 in
Cable Opening	-	5.08 - 44.45 mm
Cable Opening	-	3.3 - 30.23 mm
Cable Opening	-	0.2 - 1.75 in
Cable Opening	-	5.18 - 38.1 mm
Cable Opening	-	3.18 - 23.88 mm
Cable Opening	-	0.42 - 47.75 mm
Cable Opening	-	0.44 - 1.88 in
Cable Opening	-	0.94 - 1.38 in
Cable Opening	-	10.67 - 21.59 mm
Cable Opening	-	12.19 - 19.05 mm
Cable Opening	-	0.82 - 27.43 in
Cable Opening	-	23.88 mm
Cable Opening	-	0.23 in
Cable Opening	-	0.1 in
Cable Opening	-	5.84
Cable Opening [Max]	8.38 mm	8.38 mm
Cable Opening [Max] [diameter]	0.33 in	0.204 - 1.5 in
Cable Opening [Min]	4.83 mm	2.54 - 4.83 mm
Cable Opening [Min] [diameter]	0.19 in	0.125 - 0.94 in
Color	Black	Silver, Olive, Olive Drab, Black
Diameter - Outside	-	41.66 mm
Diameter - Outside [diameter]	1.16 in	0.62 - 3.39 in
Diameter - Outside [diameter]	29.46 mm	1.64 - 86.11 mm
Features	Clamp Screws	Clamp Screws, Self-Locking, Strain Relief, Self Locking, Rotatable
For Use With/Related Products	MIL-DTL-38999 Series III, IV	MIL-DTL-26482 Series II, MIL-DTL-83723 Series I, III, MIL-DTL-5015 Series 3400, MIL-DTL-38999 Series III, IV, MIL-DTL-5015, MIL-DTL-83723 Series III, MIL-DTL-38999 Series I, II, MS "V" Thread General Duty "A" Endbell
Ingress Protection	-	Environment Resistant
Material	Aluminum Alloy	Aluminum Alloy, Stainless Steel
Plating	Anodized	Electroless Nickel, Cadmium Nickel, Cadmium, Anodized
Primary Material	-	Metal
Shell Size - Insert	13	7 - 48
Shell Size - Insert	-	H, C, 12, 14, J, F, D, B, G, 17, E, 27, 18, 10SL, 10S
Shell Size - Insert	-	9
Shell Size - Insert	-	A
Shielding	-	Shielded, Unshielded
Thread Size	-	1-20 UNEF, 1/2-20 UNF, 3/4-20 UNEF, 2 1/2-16 UN, 2 1/4-16 UN, 2-18 UNS, 7/8-20 UNEF, UNEF, 5/8-24 UNEF, 1 7/16-18 UNEF, 1 3/16-18 UNEF, 2 3/4-16 UN, 1 5/16-18 UNEF, 3-16 UN
Thread Size	-	18
Type	Cable Clamp	Cable Clamp, Backshell, Backshell, Heat Shrink Adapter, Banding, E Nut

M85049 Series

CONN CABLE CLAMP SZ16 SIL

...

Part	Shell Size - Insert	Features	Cable Exit	For Use With/Related Products	Thread Size	Type	Plating	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Color	Cable Opening [custom]	Cable Opening [custom]	Material	Shielding	Shell Size - Insert	Ingress Protection	Primary Material	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]
Amphenol Interconnect India A8504951S16N	16	Clamp Screws, Self-Locking	90 °	MIL-DTL-26482 Series II, MIL-DTL-5015 Series 3400, MIL-DTL-83723 Series I, III	1-20 UNEF	Cable Clamp	Electroless Nickel	35.31 mm	1.39 in	Silver	12.7 mm, 16 mm	0.5 in, 0.63 in	Aluminum Alloy
Amphenol Interconnect India A8504939S17W	17	Clamp Screws, Self-Locking	90 °	MIL-DTL-38999 Series III, IV		Cable Clamp	Cadmium Nickel	35.81 mm	1.41 in	Olive	7.11 mm, 15.49 mm	0.28 in, 0.61 in	Aluminum Alloy
Amphenol Interconnect India A8504939S17N	17	Clamp Screws, Self-Locking	90 °	MIL-DTL-38999 Series III, IV		Cable Clamp	Electroless Nickel	35.81 mm	1.41 in	Silver	7.11 mm, 15.49 mm	0.28 in, 0.61 in	Aluminum Alloy
Amphenol Interconnect India A850491823W09	23	Clamp Screws	180 °	MIL-DTL-38999 Series III, IV		Backshell, Cable Clamp	Cadmium	41.91 mm	1.65 "	Olive Drab			Aluminum Alloy	Shielded	H	Environment Resistant	Metal	1 in	28.7 mm	25.4 mm	1.13 in
Amphenol Interconnect India A850491913W02	13	Clamp Screws	180 °	MIL-DTL-38999 Series III, IV		Backshell, Cable Clamp	Cadmium	25.4 mm	1 in	Olive Drab	3.3 mm, 6.35 mm	0.13 in, 0.25 in	Aluminum Alloy	Shielded	C		Metal
Amphenol Interconnect India A8504925150W		Clamp Screws	180 °	MIL-DTL-26482 Series II, MIL-DTL-5015, MIL-DTL-83723 Series III		Backshell, Cable Clamp	Cadmium	24.9 mm	0.98 in	Olive Drab			Aluminum Alloy	Shielded	12, 14		Metal					7.87 mm	0.31 in	3.3 mm	0.13 in
Amphenol Interconnect India A8504952S8A	8	Clamp Screws, Self-Locking	180 °	MIL-DTL-26482 Series II, MIL-DTL-5015 Series 3400, MIL-DTL-83723 Series I, III	1/2-20 UNF	Cable Clamp	Anodized	22.6 mm	0.89 in	Black			Aluminum Alloy					0.13 in	5.08 mm	3.3 mm	0.2 in
Amphenol Interconnect India A8504952112W	12	Clamp Screws	180 °	MIL-DTL-26482 Series II, MIL-DTL-5015 Series 3400, MIL-DTL-83723 Series I, III	3/4-20 UNEF	Cable Clamp	Cadmium Nickel	21.84 mm	0.86 in	Olive			Aluminum Alloy					0.29 in	10.67 mm	7.37 mm	0.42 in
Amphenol Interconnect India A850492411W	16, 19	Clamp Screws	90 °	MIL-DTL-26482 Series II, MIL-DTL-5015, MIL-DTL-83723 Series III		Backshell, Cable Clamp	Cadmium	28.19 mm	1.11 in	Olive Drab			Aluminum Alloy	Shielded			Metal	0.25 in	11.18 mm	6.35 mm	0.44 in
Amphenol Interconnect India A8504952S16N	16	Clamp Screws, Self-Locking	180 °	MIL-DTL-26482 Series II, MIL-DTL-5015 Series 3400, MIL-DTL-83723 Series I, III	1-20 UNEF	Cable Clamp	Electroless Nickel	35.31 mm	1.39 in	Silver	12.7 mm, 16 mm	0.5 in, 0.63 in	Aluminum Alloy
