| Cable Exit | 180 ° | 45 - 180 ° |
| Cable Opening | - | 0.38 - 31.75 mm |
| Cable Opening | - | 0.13 - 1.25 in |
| Cable Opening | - | 5.18 - 38.1 mm |
| Cable Opening | - | 0.204 - 1.5 in |
| Cable Opening | - | 3.18 - 23.88 mm |
| Cable Opening | - | 0.125 - 0.94 in |
| Cable Opening | - | 0.42 - 47.75 mm |
| Cable Opening | - | 0.44 - 1.88 in |
| Cable Opening | - | 0.94 - 1.38 in |
| Cable Opening | - | 10.67 - 21.59 mm |
| Cable Opening | - | 2.54 - 4.83 mm |
| Cable Opening | - | 8.38 mm |
| Cable Opening | - | 12.19 - 19.05 mm |
| Cable Opening | - | 0.82 - 27.43 in |
| Cable Opening | - | 23.88 mm |
| Cable Opening | - | 0.23 in |
| Cable Opening | - | 0.1 in |
| Cable Opening | - | 5.84 |
| Cable Opening [Max] [custom] | 28.7 mm | 5.08 - 44.45 mm |
| Cable Opening [Max] [custom] | 1.13 in | 0.2 - 1.75 in |
| Cable Opening [Min] [custom] | 1 in | 0.13 - 1.19 in |
| Cable Opening [Min] [custom] | 25.4 mm | 3.3 - 30.23 mm |
| Color | Olive Drab | Silver, Olive, Olive Drab, Black |
| Diameter - Outside | - | 41.66 mm |
| Diameter - Outside [diameter] | 41.91 mm | 1.64 - 86.11 mm |
| Diameter - Outside [diameter] | 1.65 " | 0.62 - 3.39 in |
| Features | Clamp Screws | Clamp Screws, Self-Locking, Strain Relief, Self Locking, Rotatable |
| For Use With/Related Products | MIL-DTL-38999 Series III, IV | MIL-DTL-26482 Series II, MIL-DTL-83723 Series I, III, MIL-DTL-5015 Series 3400, MIL-DTL-38999 Series III, IV, MIL-DTL-5015, MIL-DTL-83723 Series III, MIL-DTL-38999 Series I, II, MS "V" Thread General Duty "A" Endbell |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Material | Aluminum Alloy | Aluminum Alloy, Stainless Steel |
| Plating | Cadmium | Electroless Nickel, Cadmium Nickel, Cadmium, Anodized |
| Primary Material | Metal | Metal |
| Shell Size - Insert | H | H, C, 12, 14, J, F, D, B, G, 17, E, 27, 18, 10SL, 10S |
| Shell Size - Insert | 23 | 7 - 48 |
| Shell Size - Insert | - | 9 |
| Shell Size - Insert | - | A |
| Shielding | Shielded | Shielded, Unshielded |
| Thread Size | - | 1-20 UNEF, 1/2-20 UNF, 3/4-20 UNEF, 2 1/2-16 UN, 2 1/4-16 UN, 2-18 UNS, 7/8-20 UNEF, UNEF, 5/8-24 UNEF, 1 7/16-18 UNEF, 1 3/16-18 UNEF, 2 3/4-16 UN, 1 5/16-18 UNEF, 3-16 UN |
| Thread Size | - | 18 |

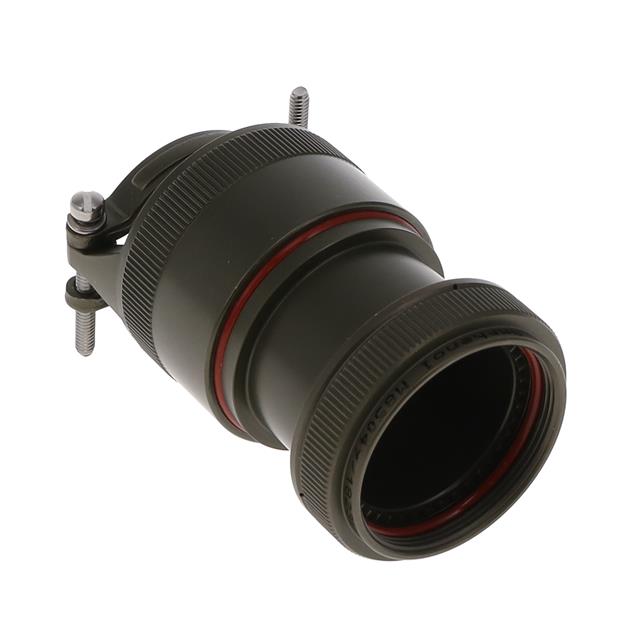

| Type | Backshell, Cable Clamp | Cable Clamp, Backshell, Backshell, Heat Shrink Adapter, Banding, E Nut |
