AXE120224

Obsolete

Panasonic Electric Works

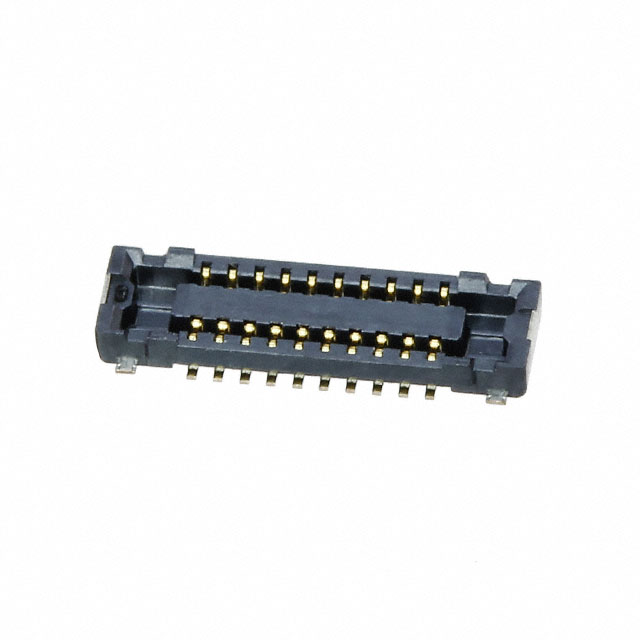

CONN SOCKET 20POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

CONN SOCKET 20POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXE120224

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board	0.97 mm
Height Above Board	0.038 in
Mated Stacking Heights	1.5 mm, 1 mm
Mounting Type	Surface Mount
Number of Positions	20
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Connector Type	Number of Positions	Number of Rows	Pitch [x]	Pitch [x]	Features	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]	Mounting Type	Contact Finish	Height Above Board	Height Above Board
Panasonic Electric Works AXE120527A	Socket Center Strip Contacts	20	2	0.016 in	0.4 mm	Solder Retention	0.8 mm	0.03 in	0.75 mm	Surface Mount	Gold
Panasonic Electric Works AXE120224	Socket Center Strip Contacts	20	2	0.016 in	0.4 mm	Solder Retention	1 mm 1.5 mm			Surface Mount	Gold	0.97 mm	0.038 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

20 Position Connector Socket, Center Strip Contacts Surface Mount Gold
