FFSD-22 Series

Part	Features	Length	Cable Termination	Color	Number of Positions	Contact Finish Thickness	Number of Rows	Contact Finish	Connector Type	Shielding	Pitch - Cable	Pitch - Connector
Samtec Inc. FFSD-22-D-02.36-01-N	Polarizing Key	0.197 ft	IDC	Gray Ribbon	44	10 Ąin	2	Gold	Socket to Socket	Unshielded	0.025 in	0.05 in
Samtec Inc. FFSD-22-S-02.00-01-N	Polarizing Key	2.004 in	IDC	Gray Ribbon	44	10 Ąin	2	Gold	Socket to Cable	Unshielded	0.025 in	0.05 in
Samtec Inc. FFSD-22-D-04.50-01-N	Polarizing Key	0.375 ft	IDC	Gray Ribbon	44	10 Ąin	2	Gold	Socket to Socket	Unshielded	0.025 in	0.05 in
Samtec Inc. FFSD-22-S-15.00-01-N	Polarizing Key	1.25 ft	IDC	Gray Ribbon	44	10 Ąin	2	Gold	Socket to Cable	Unshielded	0.025 in	0.05 in
Samtec Inc. FFSD-22-D-12.01-01-N	Polarizing Key	12 in	IDC	Gray Ribbon	44	10 Ąin	2	Gold	Socket to Socket	Unshielded	0.025 in	0.05 in
Samtec Inc. FFSD-22-D-03.40-01-N	Polarizing Key	0.283 ft	IDC	Gray Ribbon	44	10 Ąin	2	Gold	Socket to Socket	Unshielded	0.025 in	0.05 in
Samtec Inc. FFSD-22-D-36.00-01-N	Polarizing Key	3 ft	IDC	Gray Ribbon	44	10 Ąin	2	Gold	Socket to Socket	Unshielded	0.025 in	0.05 in
Samtec Inc. FFSD-22-D-07.88-01-N	Polarizing Key	0.657 ft	IDC	Gray Ribbon	44	10 Ąin	2	Gold	Socket to Socket	Unshielded	0.025 in	0.05 in

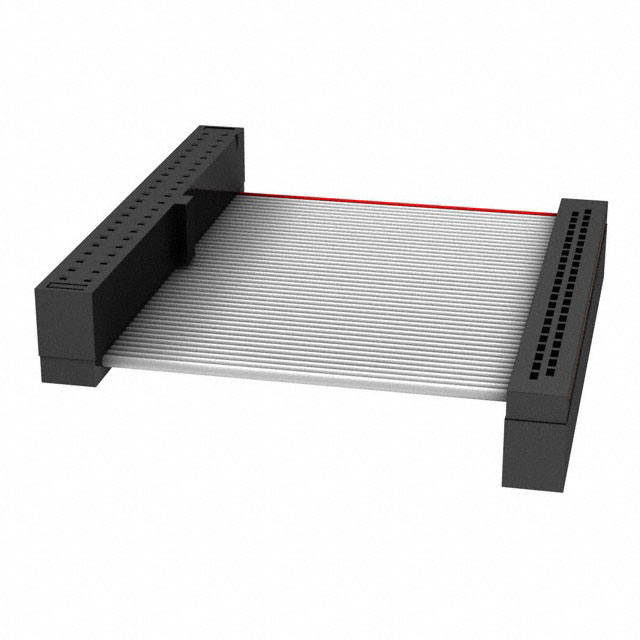

Samtec Inc. FFSD-22-D-02.36-01-N-R	Polarizing Key Reverse Wiring	0.197 ft	IDC	Gray Ribbon	44	10 Ąin	2	Gold	Reversed Socket to Socket	Unshielded	0.025 in	0.05 in
Samtec Inc. FFSD-22-S-03.00-01-N	Polarizing Key	3 "	IDC	Gray Ribbon	44	10 Ąin	2	Gold	Socket to Cable	Unshielded	0.025 in	0.05 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
