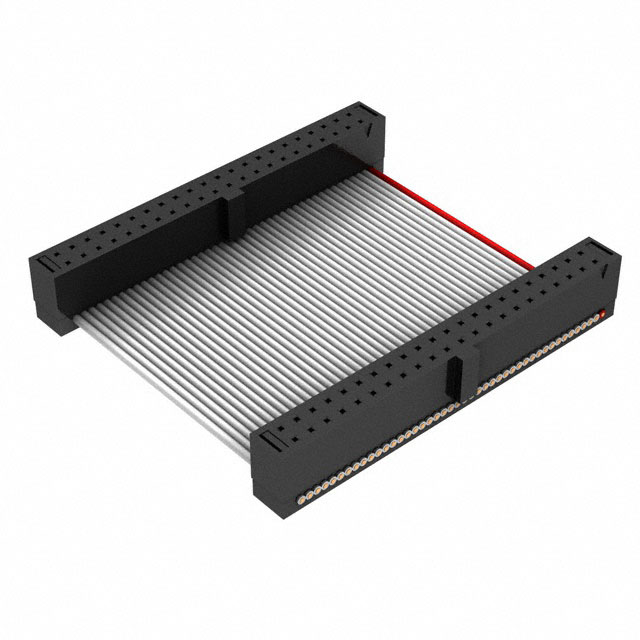

FFSD-22-D-04.50-01-N

Active

Samtec Inc.

.050 X .050 C.L. FEMALE IDC ASSE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet FFSD Datasheet

FFSD-22-D-04.50-01-N

Active

Samtec Inc.

.050 X .050 C.L. FEMALE IDC ASSE

Deep-Dive with AI

DocumentsDatasheet FFSD Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FFSD-22-D-04.50-01-N

Cable Termination	IDC
Connector Type	Socket to Socket
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Polarizing Key
Length	4.5 in
Length	114.3 mm
Length	0.375 ft
Number of Positions	44
Number of Rows	2
Pitch - Cable	0.64 mm
Pitch - Cable [x]	0.025 in
Pitch - Connector	0.05 in
Pitch - Connector	1.27 mm
Shielding	Unshielded

FFSD-22 Series

Part	Shielding	Length	Length	Length	Features	Pitch - Cable [x]	Pitch - Cable	Number of Rows	Pitch - Connector	Pitch - Connector	Connector Type	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Positions	Length [x]	Length [x]
Samtec Inc. FFSD-22-D-02.36-01-N	Unshielded	0.197 ft	2.36 in	59.94 mm	Polarizing Key	0.025 in	0.64 mm	2	0.05 in	1.27 mm	Socket to Socket	IDC	10 Áin	0.25 Ám	Gold	44
Samtec Inc. FFSD-22-S-02.00-01-N	Unshielded	0.167 '	2 "	50.8 mm	Polarizing Key	0.025 in	0.64 mm	2	0.05 in	1.27 mm	Socket to Cable	IDC	10 Áin	0.25 Ám	Gold	44
Samtec Inc. FFSD-22-D-04.50-01-N	Unshielded	0.375 ft	4.5 in	114.3 mm	Polarizing Key	0.025 in	0.64 mm	2	0.05 in	1.27 mm	Socket to Socket	IDC	10 Áin	0.25 Ám	Gold	44
Samtec Inc. FFSD-22-D-12.00-01-N	Unshielded	1 ft		304.8 mm	Polarizing Key	0.025 in	0.64 mm	2	0.05 in	1.27 mm	Socket to Socket	IDC	10 Áin	0.25 Ám	Gold	44
Samtec Inc. FFSD-22-S-15.00-01-N	Unshielded			381 mm	Polarizing Key	0.025 in	0.64 mm	2	0.05 in	1.27 mm	Socket to Cable	IDC	10 Áin	0.25 Ám	Gold	44	15 in
Samtec Inc. FFSD-22-D-12.01-01-N	Unshielded	1 ft		305.05 mm	Polarizing Key	0.025 in	0.64 mm	2	0.05 in	1.27 mm	Socket to Socket	IDC	10 Áin	0.25 Ám	Gold	44
Samtec Inc. FFSD-22-D-36.00-01-N	Unshielded				Polarizing Key	0.025 in	0.64 mm	2	0.05 in	1.27 mm	Socket to Socket	IDC	10 Áin	0.25 Ám	Gold	44	3 ft	914.4 mm
Samtec Inc. FFSD-22-D-07.88-01-N	Unshielded	0.657 ft	7.88 in	200.15 mm	Polarizing Key	0.025 in	0.64 mm	2	0.05 in	1.27 mm	Socket to Socket	IDC	10 Áin	0.25 Ám	Gold	44
Samtec Inc. FFSD-22-D-02.36-01-N-R	Unshielded	0.197 ft	2.36 in	59.94 mm	Polarizing Key Reverse Wiring	0.025 in	0.64 mm	2	0.05 in	1.27 mm	Socket to Socket Reversed	IDC	10 Áin	0.25 Ám	Gold	44
Samtec Inc. FFSD-22-S-03.00-01-N	Unshielded	0.25 ft	3 "	76.2 mm	Polarizing Key	0.025 in	0.64 mm	2	0.05 in	1.27 mm	Socket to Cable	IDC	10 Áin	0.25 Ám	Gold	44

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 25.63
		10	$ 19.81
		25	$ 18.95

Description

General part information

FFSD-22 Series

44 Position Cable Assembly Rectangular Socket to Socket 0.375' (114.30mm, 4.50")
