Q1501437

Obsolete

Panasonic Electronic Components

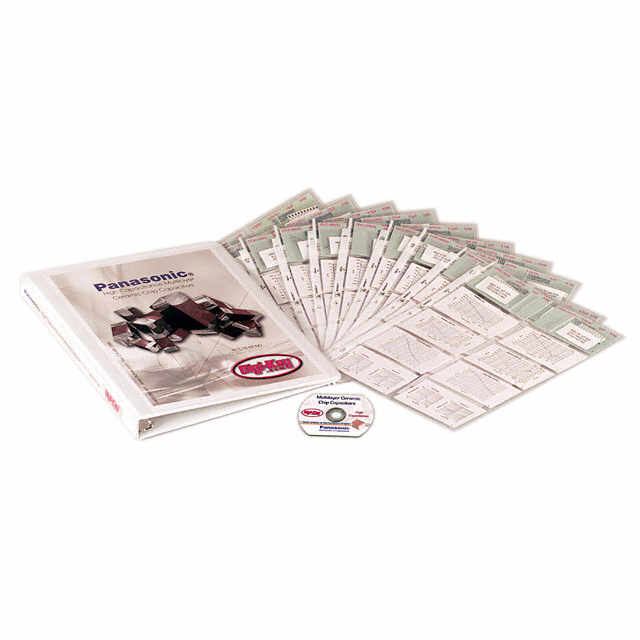

CAP KIT CERAMIC 1UF-10UF 400PCS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

Q1501437

Obsolete

Panasonic Electronic Components

CAP KIT CERAMIC 1UF-10UF 400PCS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	Q1501437	- Series

Applications	General Purpose	General Purpose, Switching, High Frequency, RFI Suppression, EMI, Microwave, RF
Capacitance Range [Max]	10 µF	0.01 - 8200 µF
Capacitance Range [Min]	1 µF	0.01 - 4700 µF
Features	-	X2 Safety Rated, Low Loss, High Q
Inductance Range	-	1 - 1.5 nH
Inductance Range	-	39 - 100 nH
Inductance Range	-	10 nH
Inductance Range	-	1 µH
Kit Type	Ceramic	Film, Fixed, Ceramic, Aluminum, Trimmer
Material - Core	-	Non-Magnetic
Mounting Type	Surface Mount, MLCC	Through Hole, Surface Mount, MLCC
Number of Turns	-	1
Packages Included	1206, 0805, 0402, 0603	Radial, 0402 (1005 Metric), 1206, 0805, 0402, 0603, 0402 ~ 1206, 0805 (2012 Metric), 3216, 2012, 1913, 3225, 1210, 4833 Metric, 0603 (1608 Metric), 0201 (0603 Metric)
Packages Included	1005, 1608, 3216, 2012	1005, 1608, 3216, 2012, 3216 Metric, 1005 ~ 3216
Packages Included	-	2917
Packages Included	-	7343 Metric
Power (Watts)	-	1 W
Power (Watts)	-	20 W
Quantity	20 Each, 400 Pieces	20 - 600 Pieces
Resistance (Ohms)	-	220 Ohms
Resistance (Ohms)	-	1M
Resistive Material	-	Cermet
Style	-	Multilayer, Wirewound
Termination Style	-	J Lead
Tolerance	10 %, 20 %	0.05 - 25 %
Voltage - Rated	-	25 - 400 V
Voltage - Rated [Max]	25 V	16 - 200 V
Voltage - Rated [Min]	6.3 V	2 - 50 V

- Series

CAP KIT FILM 0.01UF-1UF 170PCS

Part	Capacitance Range [Max]	Capacitance Range [Min]	Applications	Mounting Type	Voltage - Rated	Quantity	Tolerance	Packages Included	Kit Type	Inductance Range [Min]	Inductance Range [Max]	Style	Material - Core	Voltage - Rated [Min]	Voltage - Rated [Max]	Packages Included
Panasonic Electronic Components Q20902	1 µF	0.01 µF	General Purpose	Through Hole	250 V	170 Pieces	10 %	Radial	Film
Panasonic Electronic Components Q17863	8200 pF	1000 pF	General Purpose	Through Hole	50 VDC	300 Pieces	5 %	Radial	Film
Panasonic Electronic Components Q16080	0.33 µF	100 pF	High Frequency, Switching	Through Hole	50 VDC	150 Pieces	2 %, 5 %	Radial	Film
Panasonic Electronic Components Q26058	0.1 µF	1000 pF	General Purpose	Through Hole	400 V	150 Pieces	10 %	Radial	Film
Panasonic Electronic Components Q333186				Surface Mount		200 Pieces		0402 (1005 Metric)	Fixed	1 nH	39 nH	Multilayer	Non-Magnetic
Panasonic Electronic Components Q1501437	10 µF	1 µF	General Purpose	MLCC, Surface Mount		20 Each, 400 Pieces	10 %, 20 %	0402, 0603, 0805, 1206	Ceramic					6.3 V	25 V	1005, 1608, 2012, 3216
Panasonic Electronic Components Q109306	100 µF	0.1 µF	General Purpose	Through Hole		180 Pieces	20 %	Radial	Aluminum					6.3 V	50 V
Panasonic Electronic Components Q1158089	0.01 µF	470 pF	General Purpose	MLCC, Surface Mount		140 Pieces	5 %	1206	Ceramic					50 V	200 V	3216 Metric
Panasonic Electronic Components Q1936058	22 µF	1 µF	General Purpose	MLCC, Surface Mount		20 Each, 400 Pieces	10 %, 20 %	0402, 0603, 0805, 1206	Ceramic					6.3 V	25 V	1005, 1608, 2012, 3216
Panasonic Electronic Components Q2636043	22 µF	1 µF	General Purpose	MLCC, Surface Mount		20 Each, 400 Pieces	10 %, 20 %	0402 ~ 1206	Ceramic					6.3 V	25 V	1005 ~ 3216

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

- Series

Ceramic Capacitor Kit 1µF ~ 10µF 6.3 ~ 25V Surface Mount, MLCC 400 Pieces (20 Values - 20 Each)

Documents

Technical documentation and resources
