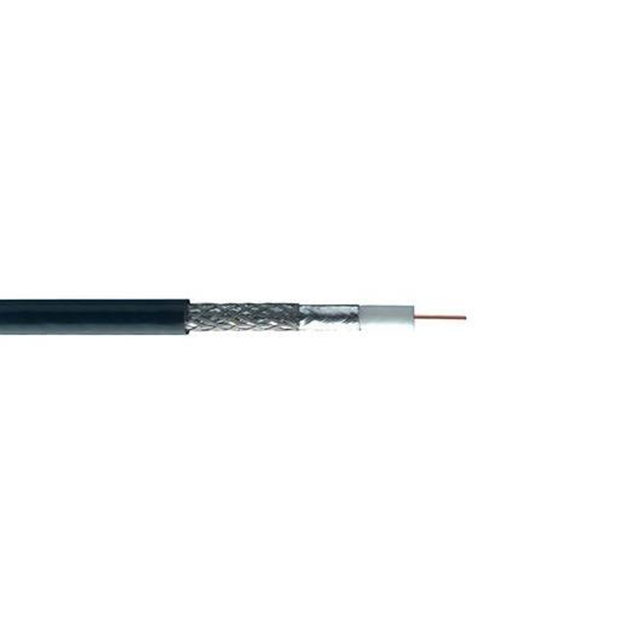

9248 010500

Active

Belden Inc.

#18 PE/GIFHDPE SH FRPVC

Search across all available documentation for this part.

Active

Belden Inc.

#18 PE/GIFHDPE SH FRPVC

Technical Specifications

Parameters and characteristics for this part

Specification	9248 010500

Cable Group	RG-6
Cable Type	Coaxial
Conductor Material	Copper, Bare
Conductor Strand	Solid
Dielectric Diameter [diameter]	0.18 in
Dielectric Diameter [diameter]	4.57 mm
Dielectric Material	Foam Polyethylene (FPE)
Impedance	75 Ohms
Jacket (Insulation) Diameter [diameter]	6.86 mm
Jacket (Insulation) Diameter [diameter]	0.27 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	152.4 m
Length	6000 in
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Shield Coverage	60%, 100%
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Analog Video
VoP, Velocity of Propagation	82
Wire Gauge	18 AWG

Part	Jacket (Insulation) Material	Shield Material	Wire Gauge	Cable Type	Dielectric Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Usage	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand	Length	Length	Conductor Material	Impedance	VoP, Velocity of Propagation	Shield Type	Shield Coverage	Jacket Color	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Cable Group
Belden Inc. 9248 010U1000	Poly-Vinyl Chloride (PVC)	Aluminum Copper Tinned	18 AWG	Coaxial	Foam Polyethylene (FPE)	6.86 mm	0.27 in	Analog Video	-40 °C	80 C	Solid	304.8 m	1000 ft	Copper Bare	75 Ohms	82	Braid Foil	100% 60%	Black	0.18 in	4.57 mm	RG-6
Belden Inc. 9248 0101000	Poly-Vinyl Chloride (PVC)	Aluminum Copper Tinned	18 AWG	Coaxial	Foam Polyethylene (FPE)	6.86 mm	0.27 in	Analog Video	-40 °C	80 C	Solid	304.8 m	1000 ft	Copper Bare	75 Ohms	82	Braid Foil	100% 60%	Black	0.18 in	4.57 mm	RG-6
Belden Inc. 9248 0101640	Poly-Vinyl Chloride (PVC)	Aluminum Copper Tinned	18 AWG	Coaxial	Foam Polyethylene (FPE)	6.86 mm	0.27 in	Analog Video	-40 °C	80 C	Solid	304.8 m	1000 ft	Copper Bare	75 Ohms	82	Braid Foil	100% 60%	Black	0.18 in	4.57 mm	RG-6
Belden Inc. 9248 010500	Poly-Vinyl Chloride (PVC)	Aluminum Copper Tinned	18 AWG	Coaxial	Foam Polyethylene (FPE)	6.86 mm	0.27 in	Analog Video	-40 °C	80 C	Solid	152.4 m	6000 in	Copper Bare	75 Ohms	82	Braid Foil	100% 60%	Black	0.18 in	4.57 mm	RG-6

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 1.11

General part information

Coaxial Cable 18 AWG RG-6 500.0' (152.40m) 75 Ohms
