345-078-524-204

Active

EDAC Inc.

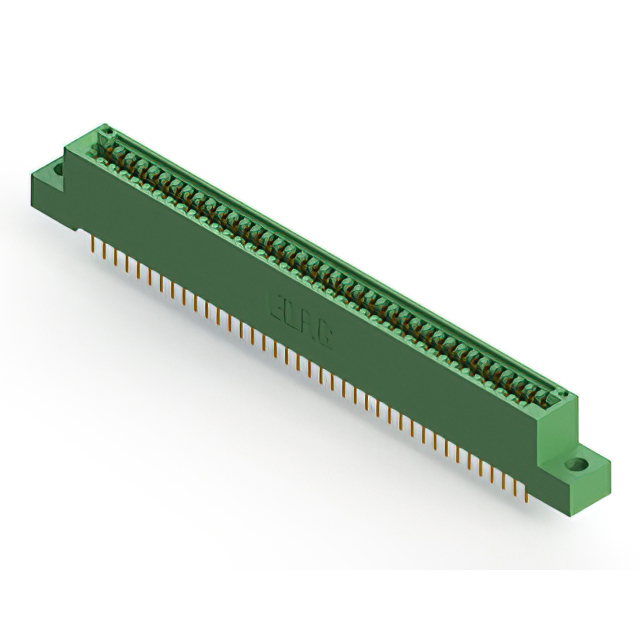

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 78 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

345-078-524-204

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 78 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	345-078-524-204

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.96 mm
Flange Feature [diameter]	0.156 in
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	78
Number of Positions/Bay/Row [custom]	39
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2

345-078 Series

...

Part	Number of Rows	Color	Contact Finish	Number of Positions/Bay/Row [custom]	Contact Material	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Read Out	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Flange Feature	Flange Feature	Termination Rows	Pitch [x]	Pitch [x]	Material - Insulation	Card Type	Contact Type	Termination	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Features	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 345-078-525-512	2	Green	Gold	39	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Female	-40 °C	105 ░C	Side Mount Opening Unthreaded	3.25 mm	0.128 in	2	2.54 mm	0.1 in	Polyester Thermoplastic	Non Specified - Dual Edge	Cantilever	Solder	78	10 Áin	0.25 Ám	Through Hole
EDAC Inc. 345-078-524-802	2	Green	Gold	39	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Female	-40 °C	105 ░C		3.25 mm	0.128 in	2	2.54 mm	0.1 in	Polyester Thermoplastic	Non Specified - Dual Edge	Cantilever	Solder	78	10 Áin	0.25 Ám	Through Hole
EDAC Inc. 345-078-525-888	2	Green	Gold	39	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Female	-40 °C	105 ░C	4-40 Threaded Insert Top Mount Opening			2	2.54 mm	0.1 in	Polyester Thermoplastic	Non Specified - Dual Edge	Cantilever	Solder	78	10 Áin	0.25 Ám	Through Hole	Card Guides
EDAC Inc. 345-078-555-208	2	Green	Gold	39	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Female	-40 °C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening			2	2.54 mm	0.1 in	Polyester Thermoplastic	Non Specified - Dual Edge	Cantilever	Solder Eyelet(s)	78	10 Áin	0.25 Ám	Board Edge Straddle Mount	Card Extender
EDAC Inc. 345-078-542-888	2	Green	Gold	39	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Female	-40 °C	105 ░C	4-40 Threaded Insert Top Mount Opening			2	2.54 mm	0.1 in	Polyester Thermoplastic	Non Specified - Dual Edge	Cantilever	Wire Wrap	78	10 Áin	0.25 Ám	Through Hole	Card Guides
EDAC Inc. 345-078-560-812	2	Green	Gold	39	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Female	-40 °C	105 ░C	Side Mount Opening Unthreaded	3.25 mm	0.128 in	2	2.54 mm	0.1 in	Polyester Thermoplastic	Non Specified - Dual Edge	Cantilever	Solder	78	10 Áin	0.25 Ám	Board Edge Straddle Mount	Card Extender
EDAC Inc. 345-078-525-878	2	Green	Gold	39	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Female	-40 °C	105 ░C	4-40 Threaded Insert Top Mount Opening			2	2.54 mm	0.1 in	Polyester Thermoplastic	Non Specified - Dual Edge	Cantilever	Solder	78	10 Áin	0.25 Ám	Through Hole	Card Guides
EDAC Inc. 345-078-524-204	2	Green	Gold	39	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Female	-40 °C	105 ░C	Flush Mount Top Opening Unthreaded			2	2.54 mm	0.1 in	Polyester Thermoplastic	Non Specified - Dual Edge	Cantilever	Solder	78	10 Áin	0.25 Ám	Through Hole		3.96 mm	0.156 in
EDAC Inc. 345-078-521-507	2	Green	Gold	39	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Female	-40 °C	105 ░C	M3 Threaded Insert Top Mount Opening			2	2.54 mm	0.1 in	Polyester Thermoplastic	Non Specified - Dual Edge	Cantilever	Solder	78	10 Áin	0.25 Ám	Through Hole
EDAC Inc. 345-078-558-278	2	Green	Gold	39	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Female	-40 °C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening			2	2.54 mm	0.1 in	Polyester Thermoplastic	Non Specified - Dual Edge	Cantilever	Wire Wrap	78	10 Áin	0.25 Ám	Through Hole Right Angle	Card Guides

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 12.78
LCSC	Piece	1	$ 6.56
		200	$ 2.54
		500	$ 2.45
		1000	$ 2.41
Newark	Each	1	$ 11.80
		100	$ 8.95
		250	$ 7.56
		500	$ 6.17
		1000	$ 4.69

Description

General part information

345-078 Series

78 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
