FI-J40S-VF15N

Obsolete

JAE Electronics

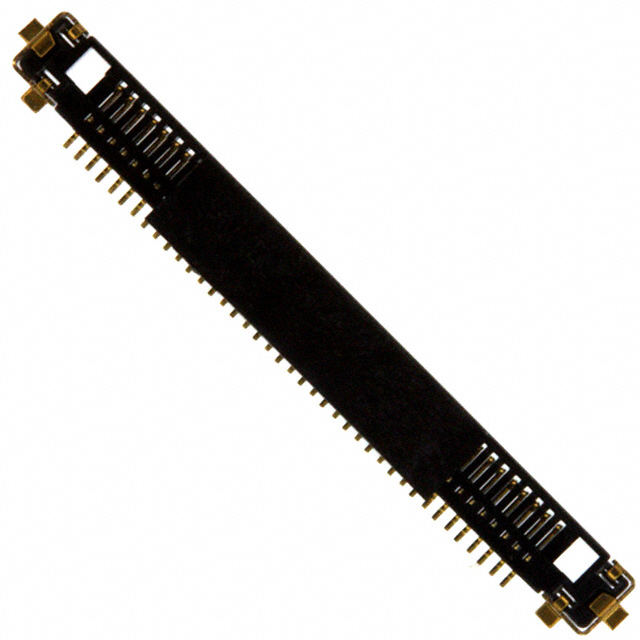

CONN RCPT 40POS 0.016 GOLD SMD

Search across all available documentation for this part.

Obsolete

JAE Electronics

CONN RCPT 40POS 0.016 GOLD SMD

Technical Specifications

Parameters and characteristics for this part

Specification	FI-J40S-VF15N

Applications	General Purpose
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.099 µm
Contact Finish Thickness - Mating	3.9 µin
Contact Finish Thickness - Post	Flash
Contact Material	Copper Alloy
Contact Type	Non-Gendered
Current Rating (Amps)	0.3 A
Fastening Type	Friction Lock
Features	Pick and Place, Solder Retention
Insulation Color	Black
Insulation Height	1.16 mm
Insulation Height	0.046 in
Insulation Material	Plastic
Mated Stacking Heights	1.58 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.016 in
Pitch - Mating	0.4 mm
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	50 V

Part	Number of Rows	Pitch [x]	Pitch [x]	Contact Type	Connector Type	Cable Termination	Mounting Type	Number of Positions	Wire Gauge [Max]	Wire Gauge [Min]	Contact Finish	Color	Mated Stacking Heights	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Applications	Contact Finish - Post	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions Loaded	Current Rating (Amps)	Style	Contact Finish - Mating	Voltage Rating	Contact Material	Termination	Insulation Material	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Insulation Color
JAE Electronics FI-J40C5-T3000	1	0.016 in	0.4 mm	Non-Gender Specific	Plug	Solder	Free Hanging (In-Line)	40	46 AWG	42 AWG	Gold	Black
JAE Electronics FI-J40C5	1	0.016 in	0.4 mm	Non-Gender Specific	Plug	Solder	Free Hanging (In-Line)	40	46 AWG	42 AWG	Gold	Black
JAE Electronics FI-J40S-VF15N-R3000	1			Non-Gendered	Receptacle		Surface Mount	40					1.58 mm	1.16 mm	0.046 in	Flash	Pick and Place Solder Retention	0.099 µm	3.9 µin	Friction Lock	General Purpose	Gold	85 °C	-40 °C	All	0.3 A	Board to Cable/Wire	Gold	50 V	Copper Alloy	Solder	Plastic	0.016 in	0.4 mm	UL94 V-0	Black
JAE Electronics FI-J40S-VF15N	1			Non-Gendered	Receptacle		Surface Mount	40					1.58 mm	1.16 mm	0.046 in	Flash	Pick and Place Solder Retention	0.099 µm	3.9 µin	Friction Lock	General Purpose	Gold	85 °C	-40 °C	All	0.3 A	Board to Cable/Wire	Gold	50 V	Copper Alloy	Solder	Plastic	0.016 in	0.4 mm	UL94 V-0	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

40 Position Receptacle Connector 0.016" (0.40mm) Surface Mount Gold
