1-794066-1

Active

TE Connectivity AMP Connectors

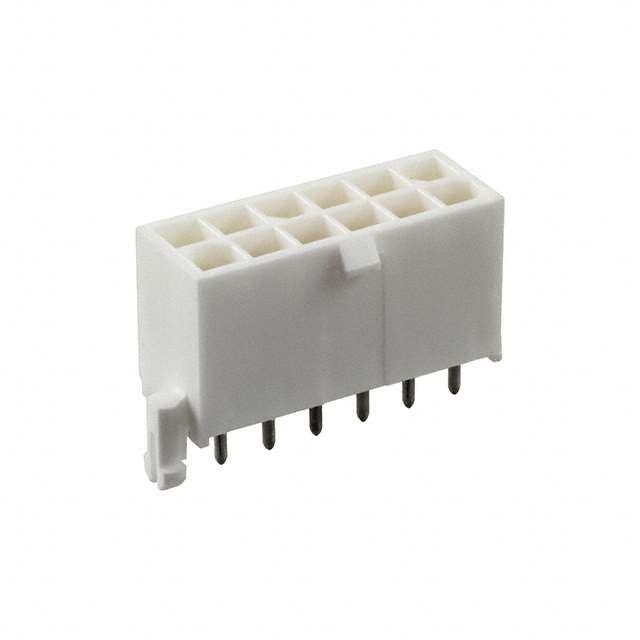

CONN HEADER VERT 12POS 4.14MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1-794066-1

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 12POS 4.14MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.10
		10	$ 5.19
		200	$ 4.20
		600	$ 3.88
		1000	$ 3.75

Description

General part information

794066 Series

Connector Header Through Hole 12 position 0.163" (4.14mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-794066-1	794066 Series

Applications	General Purpose	General Purpose
Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold, Tin-Lead
Contact Finish - Post	Tin	Tin, Tin-Lead
Contact Finish Thickness - Mating	30 Áin	30 - 150 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 - 3.81 Ám
Contact Finish Thickness - Post	150 Áin	150 Áin
Contact Finish Thickness - Post	3.81 Ám	3.81 Ám
Contact Length - Post	4.45 mm	4.45 mm
Contact Length - Post	0.175 in	0.175 in
Contact Material	Brass	Brass
Contact Shape	Circular	Circular
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Locking Ramp	Locking Ramp
Insulation Color	White	White
Insulation Height	13.5 mm	13.5 mm
Insulation Height	0.531 in	0.531 in
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	12	12
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	85 - 105 ░C
Operating Temperature [Min]	-20 C	-20 C
Pitch - Mating	4.14 mm	4.14 mm
Pitch - Mating	0.163 in	0.163 in
Row Spacing - Mating	4.14 mm	4.14 mm
Row Spacing - Mating	0.163 in	0.163 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	600 VAC	600 VAC

794066 Series

CONN HEADER VERT 12POS 4.14MM

Part	Voltage Rating	Number of Positions	Mounting Type	Insulation Height	Insulation Height	Insulation Material	Contact Shape	Current Rating (Amps)	Number of Positions Loaded	Style	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Contact Finish - Mating	Shrouding	Contact Length - Post	Contact Length - Post	Connector Type	Row Spacing - Mating	Row Spacing - Mating	Applications	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Fastening Type	Contact Type	Contact Finish - Post	Number of Rows
TE Connectivity AMP Connectors 1-794066-1	600 VAC	12	Through Hole	13.5 mm	0.531 in	Nylon, Polyamide (PA)	Circular	Varies by Wire Gauge	All	Board to Cable/Wire	-20 C	105 ░C	UL94 V-0	Gold	Shrouded - 4 Wall	4.45 mm	0.175 in	Header	4.14 mm	0.163 in	General Purpose	Brass	30 Áin	0.76 Ám	Solder	4.14 mm	0.163 in	150 Áin	3.81 Ám	White	Locking Ramp	Male Pin	Tin	2
TE Connectivity AMP Connectors 794066-2	600 VAC	12	Through Hole	13.5 mm	0.531 in	Nylon, Polyamide (PA)	Circular	Varies by Wire Gauge	All	Board to Cable/Wire	-20 C	105 ░C	UL94 V-0	Gold	Shrouded - 4 Wall	4.45 mm	0.175 in	Header	4.14 mm	0.163 in	General Purpose	Brass	30 Áin	0.76 Ám	Solder	4.14 mm	0.163 in	150 Áin	3.81 Ám	White	Locking Ramp	Male Pin	Tin-Lead	2
TE Connectivity AMP Connectors 794066-1	600 VAC	12	Through Hole	13.5 mm	0.531 in	Nylon, Polyamide (PA)	Circular	Varies by Wire Gauge	All	Board to Cable/Wire	-20 C	85 °C	UL94 V-0	Tin-Lead	Shrouded - 4 Wall	4.45 mm	0.175 in	Header	4.14 mm	0.163 in	General Purpose	Brass	150 Áin	3.81 Ám	Solder	4.14 mm	0.163 in	150 Áin	3.81 Ám	White	Locking Ramp	Male Pin	Tin-Lead	2
