EN2P4F22P

Active

Switchcraft Inc.

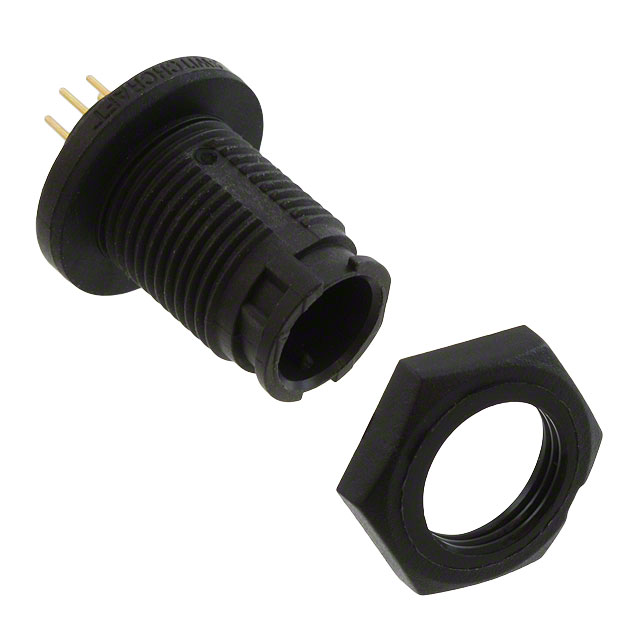

CONN CIRCULAR SKT 4 POS SOLDER ST PANEL MOUNT 4 TERMINAL 1 PORT BULK

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN CIRCULAR SKT 4 POS SOLDER ST PANEL MOUNT 4 TERMINAL 1 PORT BULK

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Female Sockets Solder

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	EN2P4F22P	EN2P4F Series

Applications	Marine, Communication Systems, Medical, Industrial	Marine, Communication Systems, Medical, Industrial
Color	Black	Black
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	1.5 A	1.5 A
Fastening Type	Bayonet Lock	Bayonet Lock
Ingress Protection	IP68, IP66, IP67	IP68, IP66, IP67
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Number of Positions	4	4
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Solder	Crimp, Solder Cup, Solder
Voltage Rating	125 VAC	125 VAC

CONN RCPT FMALE 4POS GOLD CRIMP

Part	Operating Temperature [Max]	Operating Temperature [Min]	Insert Material	Connector Type	Termination	Ingress Protection	Fastening Type	Contact Material	Orientation	Applications	Current Rating (Amps)	Mounting Feature	Voltage Rating	Material Flammability Rating	Color	Primary Material	Number of Positions	Contact Finish - Mating	Shielding	Mounting Type
Switchcraft Inc. EN2P4F22	85 °C	-40 °C	Elastomer	Receptacle, Female Sockets	Crimp, Solder Cup	IP66, IP67, IP68	Bayonet Lock	Copper Alloy	Keyed	Communication Systems, Industrial, Marine, Medical	1.5 A	Bulkhead - Front Side Nut	125 VAC	UL94 V-0	Black	Plastic	4	Gold	Unshielded
Switchcraft Inc. EN2P4F22P	85 °C	-40 °C	Elastomer	Receptacle, Female Sockets	Solder	IP66, IP67, IP68	Bayonet Lock	Copper Alloy	Keyed	Communication Systems, Industrial, Marine, Medical	1.5 A	Bulkhead - Front Side Nut	125 VAC	UL94 V-0	Black	Plastic	4	Gold	Unshielded	Panel Mount, Through Hole
