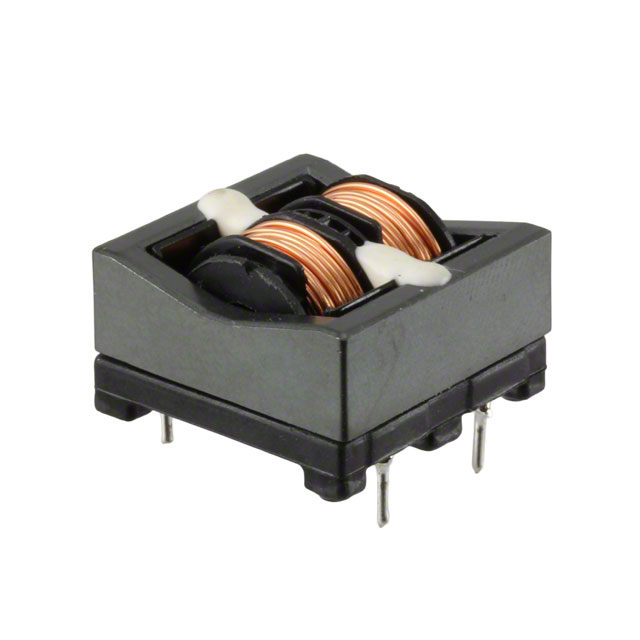

SSR21H-15083 - SSR21H-15083

SSR21H-15083

Active
KEMET

COMMON MODE CHOKES DUAL 8300UH 10KHZ 1.5A 0.16OHM DCR THRU-HOLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
SSR21H-15083 - SSR21H-15083

SSR21H-15083

Active
KEMET

COMMON MODE CHOKES DUAL 8300UH 10KHZ 1.5A 0.16OHM DCR THRU-HOLE

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationSSR21H-15083
Current Rating (Max) [Max]1.5 A
DC Resistance (DCR) (Max) [Max]160 mOhm
Filter TypePower Line
Height (Max)14.5 mm
Height (Max) [Max]0.571 in
Inductance @ Frequency10 kHz, 8.3 mH
Mounting TypeThrough Hole
Number of Lines2
Operating Temperature [Max]120 °C
Operating Temperature [Min]-25 °C
Package / Case4 Lead
Package / CaseVertical
Size / Dimension [x]23 mm
Size / Dimension [x]0.906 in
Size / Dimension [y]23 mm
Size / Dimension [y]0.906 in
Voltage Rating - DC250 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
ArrowN/A 25$ 2.53
DigikeyBulk 1$ 2.08
10$ 1.69
25$ 1.36
50$ 1.28
100$ 1.26
NewarkEach 100$ 1.80
500$ 1.64
1000$ 1.45
2500$ 1.35

Description

General part information

SSR21H Series

8.3 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 1.5A DCR 160mOhm
