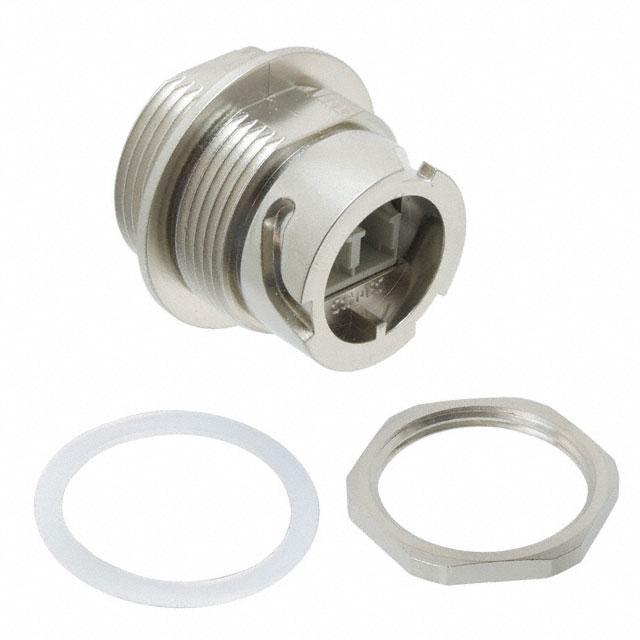

17-300070

Active

Amphenol CONEC

CONN COUPLER RCPT LC-LC DUPLEX

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

17-300070

Active

Amphenol CONEC

CONN COUPLER RCPT LC-LC DUPLEX

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	17-300070

Color	Silver
Convert From (Adapter End)	LC Receptacle
Convert To (Adapter End)	LC Receptacle
Housing Material	Zinc Die Cast
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mode	Multimode
Mounting Type	Bulkhead, Panel Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Simplex/Duplex	Duplex
Type	Coupler

17-3000 Series

Part	Ingress Protection	Simplex/Duplex	Mode	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Convert From (Adapter End)	Ferrule Material	Convert To (Adapter End)	Color	Housing Material	Material Flammability Rating	Type	For Use With/Related Products	Accessory Type	Material	Specifications	Features	Cable Diameter [diameter]	Boot Color	Fastening Type	Connector Style	Body Material	Connector Type	Housing Color
Amphenol CONEC 17-300060	IP67 - Dust Tight Waterproof	Duplex	Singlemode	Bulkhead Panel Mount	85 °C	-40 °C	LC Receptacle	Ceramic	LC Receptacle	Silver	Zinc Die Cast	UL94 V-0	Coupler
Amphenol CONEC 17-300050	IP67 - Dust Tight Waterproof				85 °C	-40 °C				Black		UL94 V-0		LC Connectors	Protective Cap	Polyester	Duplex
Amphenol CONEC 17-300010	IP67 - Dust Tight Waterproof	Duplex	Singlemode	Bulkhead Panel Mount	85 °C	-40 °C	LC Receptacle	Ceramic	LC Receptacle	Black	Polyester	UL94 V-0	Coupler
Amphenol CONEC 17-300040	IP67 - Dust Tight Waterproof	Duplex	Multimode	Free Hanging (In-Line)	85 °C	-40 °C		Zirconia			Polyester							Dust Cap Strain Relief	8 mm	Black	Bayonet Lock	LC	Polyether Imide (PEI)	Plug	Black
Amphenol CONEC 17-300030	IP67 - Dust Tight Waterproof	Duplex	Singlemode	Free Hanging (In-Line)	85 °C	-40 °C		Zirconia			Polyester							Dust Cap Strain Relief	8 mm	Black	Bayonet Lock	LC	Polyether Imide (PEI)	Plug	Black
Amphenol CONEC 17-300020	IP67 - Dust Tight Waterproof	Duplex	Multimode	Bulkhead Panel Mount	85 °C	-40 °C	LC Receptacle		LC Receptacle	Black	Polyester	UL94 V-0	Coupler
Amphenol CONEC 17-300070	IP67 - Dust Tight Waterproof	Duplex	Multimode	Bulkhead Panel Mount	85 °C	-40 °C	LC Receptacle		LC Receptacle	Silver	Zinc Die Cast	UL94 V-0	Coupler

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 34.59
		10	$ 30.29
		25	$ 28.98
		50	$ 28.04
		100	$ 27.11
		250	$ 25.61

Description

General part information

17-3000 Series

Coupler Fiber Optic Connector LC Receptacle To LC Receptacle Panel Mount, Bulkhead
