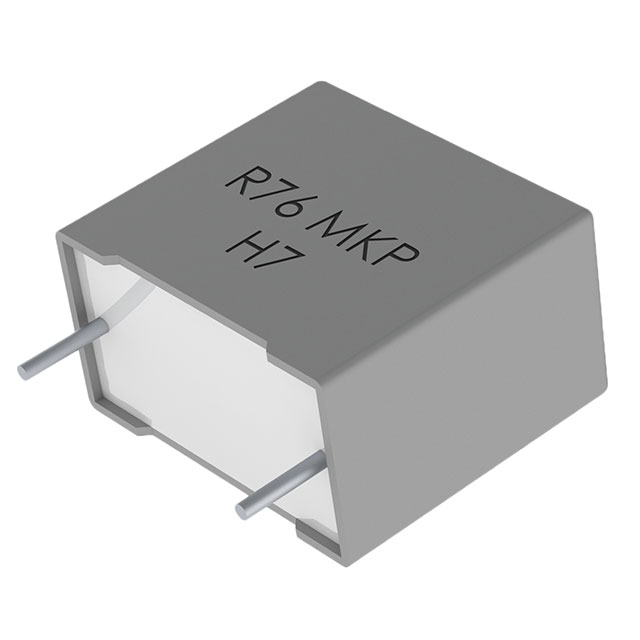

R76QW4100SE30K

Active

KEMET

CAP FILM 1UF 10% 1KVDC RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP FILM 1UF 10% 1KVDC RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	R76QW4100SE30K

Applications	Switching, DV/DT, High Frequency, High Pulse
Capacitance	1 µF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max) [Max] [z]	1.575 in
Height - Seated (Max) [Max] [z]	40 mm
Lead Spacing	37.5 mm
Lead Spacing	1.476 in
Mounting Type	Through Hole
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [x]	1.634 "
Size / Dimension [x]	41.5 mm
Size / Dimension [y]	20 mm
Size / Dimension [y]	0.787 in
Termination	PC Pins
Tolerance	10 %
Voltage Rating - AC	600 V
Voltage Rating - DC	1 kVDC
Voltage Rating - DC	1 kV

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Voltage Rating - DC	Voltage Rating - DC	Package / Case	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Lead Spacing	Lead Spacing	Capacitance	Voltage Rating - AC	Applications	Mounting Type	Dielectric Material	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	ESR (Equivalent Series Resistance)	Ratings	Height - Seated (Max) [Max] [z]
KEMET R76QW41004030J	1.634 "	20 mm	41.5 mm	0.787 in	1 kVDC	1 kV	Radial	PC Pins	-55 °C	110 °C	5 %	37.5 mm	1.476 in	1 µF	600 V	DV/DT High Frequency High Pulse Switching	Through Hole	Metallized Polypropylene (PP)	1.579 in	40.1 mm
KEMET R76QW410050H3J	1.634 "	20 mm	41.5 mm	0.787 in	1 kVDC	1 kV	Radial	PC Pins	-55 °C	125 °C	5 %	37.5 mm	1.476 in	1 µF	600 V	Automotive High Frequency Switching High Pulse DV/DT	Through Hole	Metallized Polypropylene (PP)	1.579 in	40.1 mm	7 mOhms	AEC-Q200
KEMET R76QW4100SE30K	1.634 "	20 mm	41.5 mm	0.787 in	1 kVDC	1 kV	Radial	PC Pins	-55 °C	110 °C	10 %	37.5 mm	1.476 in	1 µF	600 V	DV/DT High Frequency High Pulse Switching	Through Hole	Metallized Polypropylene (PP)	1.575 in				40 mm
