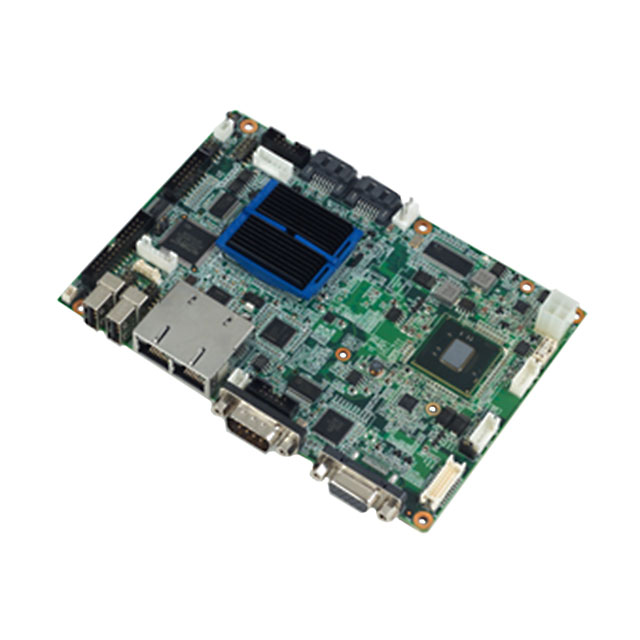

PCM-9363D-S8A1E

Active

Advantech Corp

SBC 1.8GHZ 2 CORE 4GB/0GB RAM

Search across all available documentation for this part.

Active

Advantech Corp

SBC 1.8GHZ 2 CORE 4GB/0GB RAM

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Expansion Site/Bus	Core Processor	Number of Cores	Digital I/O Lines	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	USB	Video Outputs	RS-232 (422, 485)	Cooling Type	Ethernet	Form Factor	RAM Capacity/Installed	Speed	Power (Watts)	Storage Interface
Advantech Corp PCM-9363N-S6A1E	60 °C	mPCIe	Intel Atom N455	1	8	101.6 mm	4 "	5.7 "	144.78 mm	USB 2.0 (6)	HDMI LVDS VGA	3	Heat Sink	10 Mbps 100 Mbps 1000 Mbps	3.5 in	0 GB 2 GB	1.66 GHz	8.88 W	CompactFlash SATA2
Advantech Corp PCM-9363N-S6A1E	60 °C	mPCIe	Intel Atom N455	1	8	101.6 mm	4 "	5.7 "	144.78 mm	USB 2.0 (6)	HDMI LVDS VGA	3	Heat Sink	10 Mbps 100 Mbps 1000 Mbps	3.5 in	0 GB 2 GB	1.66 GHz	8.88 W	CompactFlash SATA2
Advantech Corp PCM-9363NZ-1GS6A1E	60 °C	mPCIe	Intel Atom N455	1	8	101.6 mm	4 "	5.7 "	144.78 mm	USB 2.0 (6)	HDMI LVDS VGA	3	Heat Sink	10 Mbps 100 Mbps 1000 Mbps	3.5 in	0 GB 2 GB	1.66 GHz	8.88 W	CompactFlash SATA2
Advantech Corp PCM-9363D-S8A1E	60 °C	mPCIe	Intel Atom D525	2	8	101.6 mm	4 "	5.7 "	144.78 mm	USB 2.0 (6)	HDMI LVDS VGA	3	Fan	10 Mbps 100 Mbps 1000 Mbps	3.5 in	0 GB 4 GB	1.8 GHz	10.32 W	CompactFlash SATA2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Single Board Computer 1.8GHz 2 Core 4GB/0GB RAM Intel Atom D525
