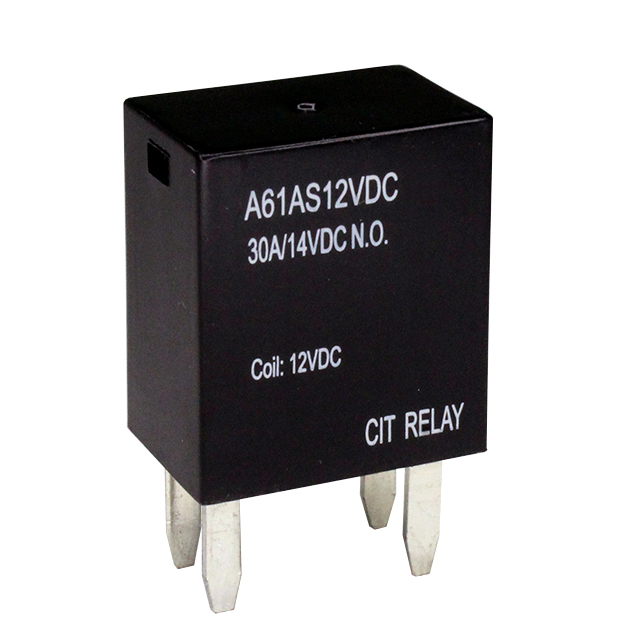

A61AS12VDC.9D

Active

CIT Relay and Switch

RELAY AUTOMOTIVE SPST 30A 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsLawn Care & Maintenance Applications Datasheet +1

A61AS12VDC.9D

Active

CIT Relay and Switch

RELAY AUTOMOTIVE SPST 30A 12V

Deep-Dive with AI

DocumentsLawn Care & Maintenance Applications Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A61AS12VDC.9D

Coil Current	75 mA
Coil Power	900 mW
Coil Resistance	160 Ohms
Coil Type	Non Latching
Coil Voltage	12 VDC
Contact Form	SPST-NO (1 Form A)
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	30 A
Features	Sealed - Fully, Diode
Mounting Type	Through Hole
Must Operate Voltage	8.4 VDC
Must Release Voltage	1.2 VDC
Operate Time	5 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Release Time	2 ms
Switching Voltage	75 VDC
Termination Style	PC Pin

A61AS Series

Part	Termination Style	Coil Type	Operating Temperature [Max]	Operating Temperature [Min]	Features	Mounting Type	Switching Voltage	Operate Time	Contact Form	Coil Voltage	Must Release Voltage	Release Time	Must Operate Voltage	Coil Resistance	Coil Current	Coil Power	Contact Rating (Current)	Contact Material
CIT Relay and Switch A61AS24VDC1.3D	PC Pin	Non Latching	85 °C	-40 °C	Diode Sealed - Fully	Through Hole	75 VDC	5 ms	SPST-NO (1 Form A)	24 VDC	2.4 VDC	2 ms	16.8 VDC	436 Ohms	55 mA	1.3 W	30 A	Silver Tin Oxide (AgSnO)
CIT Relay and Switch A61AS24VDC1.3R	PC Pin	Non Latching	85 °C	-40 °C	Resistor Sealed - Fully	Through Hole	75 VDC	5 ms	SPST-NO (1 Form A)	24 VDC	2.4 VDC	2 ms	16.8 VDC	436 Ohms	55 mA	1.3 W	30 A	Silver Tin Oxide (AgSnO)
CIT Relay and Switch A61AS12VDC1.3R	PC Pin	Non Latching	85 °C	-40 °C	Resistor Sealed - Fully	Through Hole	75 VDC	5 ms	SPST-NO (1 Form A)	12 VDC	1.2 VDC	2 ms	8.4 VDC	109 Ohms	110.1 mA	1.3 W	30 A	Silver Tin Oxide (AgSnO)
CIT Relay and Switch A61AS12VDC1.3	PC Pin	Non Latching	85 °C	-40 °C	Sealed - Fully	Through Hole	75 VDC	5 ms	SPST-NO (1 Form A)	12 VDC	1.2 VDC	2 ms	8.4 VDC	109 Ohms	110.1 mA	1.3 W	30 A	Silver Tin Oxide (AgSnO)
CIT Relay and Switch A61AS12VDC.9D	PC Pin	Non Latching	85 °C	-40 °C	Diode Sealed - Fully	Through Hole	75 VDC	5 ms	SPST-NO (1 Form A)	12 VDC	1.2 VDC	2 ms	8.4 VDC	160 Ohms	75 mA	900 mW	30 A	Silver Tin Oxide (AgSnO)
CIT Relay and Switch A61AS24VDC.9R	PC Pin	Non Latching	85 °C	-40 °C	Micro 280 ISO Resistor Sealed - Fully	Through Hole	75 VDC	5 ms	SPST-NO (1 Form A)	24 VDC	2.4 VDC	2 ms	16.8 VDC	640 Ohms	37.5 mA	900 mW	30 A	Silver Tin Oxide (AgSnO)
CIT Relay and Switch A61AS24VDC1.3	PC Pin	Non Latching	85 °C	-40 °C	Micro 280 ISO Sealed - Fully	Through Hole	75 VDC	5 ms	SPST-NO (1 Form A)	24 VDC	2.4 VDC	2 ms	16.8 VDC	436 Ohms	55 mA	1.3 W	30 A	Silver Tin Oxide (AgSnO)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.55
		10	$ 2.39
		25	$ 2.12
		50	$ 2.02
		100	$ 1.91
		250	$ 1.70
		450	$ 1.59
		950	$ 1.48
		4900	$ 1.43

Description

General part information

A61AS Series

RELAY AUTOMOTIVE SPST 30A 12V

Documents

Technical documentation and resources

Lawn Care & Maintenance Applications

Datasheet

A Series Relays

Datasheet
