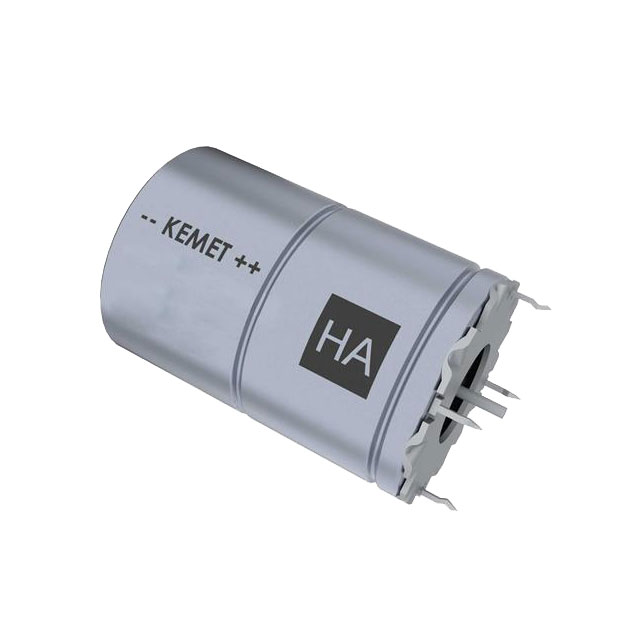

PHH227HKP4360ME4

Active

KEMET

HYBRID ALUMINIUM ELECTROLYTIC CAPACITOR, VIBRATION-PROOF, 3600 ΜF, ± 20%, 25 V, RADIAL LEADED

Search across all available documentation for this part.

Active

KEMET

HYBRID ALUMINIUM ELECTROLYTIC CAPACITOR, VIBRATION-PROOF, 3600 ΜF, ± 20%, 25 V, RADIAL LEADED

Technical Specifications

Parameters and characteristics for this part

Specification	PHH227HKP4360ME4

Applications	Automotive
Capacitance	3600 µF
ESR (Equivalent Series Resistance)	72 mOhms
Features	High Vibration
Height - Seated (Max) [Max] [z]	1.398 in
Height - Seated (Max) [Max] [z]	35.7 mm
Lead Spacing	15.24 mm
Lead Spacing	0.6 in
Lifetime @ Temp.	3000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Ratings	AEC-Q200
Ripple Current @ High Frequency	36.7 A
Ripple Current @ Low Frequency	7.34 A
Size / Dimension [diameter]	16.2 mm
Size / Dimension [diameter]	0.638 in
Tolerance	20 %
Type	Hybrid
Voltage - Rated	25 VDC

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	ESR (Equivalent Series Resistance)	Voltage - Rated	Ripple Current @ Low Frequency	Type	Features	Capacitance	Ratings	Lead Spacing	Lead Spacing	Size / Dimension [diameter]	Size / Dimension [diameter]	Tolerance	Ripple Current @ High Frequency	Package / Case	Lifetime @ Temp.	Applications	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET PHH227HLL4370ME4	27.7 mm	1.091 in	125 °C	-40 °C	65 mOhm	25 VDC	7.9 A	Hybrid	High Vibration	3700 µF	AEC-Q200	15.24 mm	0.6 in	0.717 in	18.2 mm	20 %	39.5 A	Radial Can	3000 Hrs	Automotive	Through Hole
KEMET PHH227HKP4360ME4			125 °C	-40 °C	72 mOhms	25 VDC	7.34 A	Hybrid	High Vibration	3600 µF	AEC-Q200	15.24 mm	0.6 in	0.638 in	16.2 mm	20 %	36.7 A	Radial Can	3000 Hrs	Automotive	Through Hole	1.398 in	35.7 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3600 µF 25 V Aluminum - Polymer Capacitors Radial, Can 72mOhm 3000 Hrs @ 125°C
