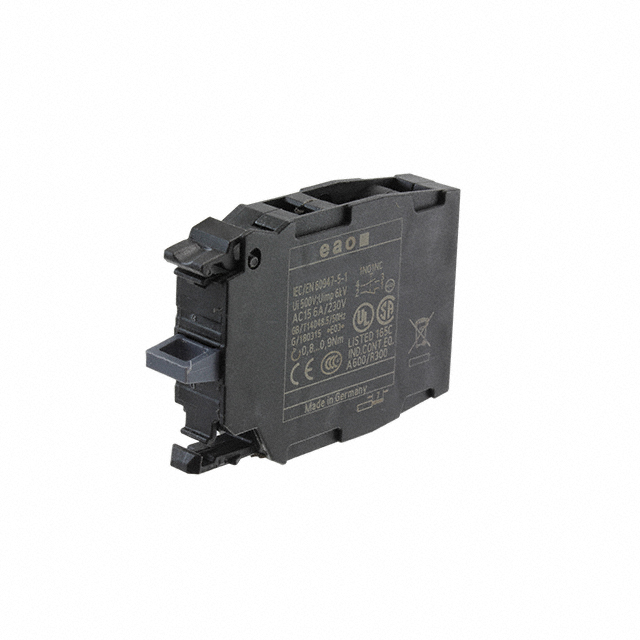

45-315.1Z10

Active

EAO

CONTACT BLK DPST-NO/NC 10A 230V

Search across all available documentation for this part.

Active

EAO

CONTACT BLK DPST-NO/NC 10A 230V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	45-315.1Z10	45-315 Series

(Select First, Then Apply Filters) Compatible Series	45, EAO	45, EAO
Circuit	DPST-NO/NC	DPST-NO/NC
Contact Rating @ Voltage	10 A	10 A
Requires	Switch Body	Switch Body
Termination Style	Screw Terminal	Spring Terminal, Screw Terminal

CONTACT BLK DPST-NO/NC 10A 230V

Part	Termination Style	Circuit	Requires	(Select First, Then Apply Filters) Compatible Series	Contact Rating @ Voltage
EAO 45-315.1Z40	Spring Terminal	DPST-NO/NC	Switch Body	45, EAO	10 A
EAO 45-315.1Z10	Screw Terminal	DPST-NO/NC	Switch Body	45, EAO	10 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Configurable Contact Block DPST-NO/NC 10A @ 230VAC

Technical documentation and resources
