EEG.1K.305.CLV

Active

LEMO

CONN RCPT FMALE 5POS GOLD SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

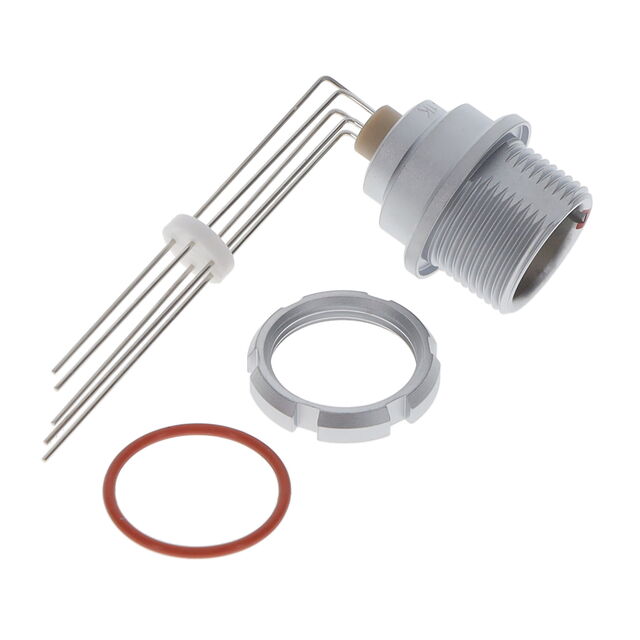

EEG.1K.305.CLV

Active

LEMO

CONN RCPT FMALE 5POS GOLD SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 51.99
		10	$ 47.71
		25	$ 45.87
		50	$ 44.34
		100	$ 41.90

Description

General part information

EEG.1K Series

5 Position Circular Connector Receptacle, Female Sockets Solder

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EEG.1K.305.CLV	EEG.1K Series

Color	Silver	Silver, Black
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Current Rating (Amps)	6 A	1.5 - 15 A
Fastening Type	Push-Pull	Push-Pull
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Right Angle, Panel Mount
Number of Positions	-	2 - 14
Number of Positions	-	16
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	G	G
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	305	302 - 316
Shielding	Shielded	Shielded
Termination	Solder	Solder, Crimp

EEG.1K Series

CIRCULAR CONNECTORS &AMP; CABLE CONNECTORS ROHS

Part	Current Rating (Amps)	Fastening Type	Orientation	Contact Finish - Mating	Shielding	Material Flammability Rating	Ingress Protection	Shell Material	Mounting Type	Insert Material	Termination	Primary Material	Shell Finish	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Connector Type	Color	Shell Size - Insert	Number of Positions	Mounting Feature	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions
LEMO EEG.1K.308.CLV	5 A	Push-Pull	G	Gold	Shielded	UL94 V-0	IP66/IP68	Brass	Panel Mount, Right Angle, Through Hole	Polyetheretherketone (PEEK)	Solder	Metal	Chrome	-55 °C	200 °C	Bronze	Receptacle, Female Sockets	Silver	308	8	Bulkhead - Front Side Nut	59 Áin	1.5 Ám
LEMO EEG.1K.316.CLN	1.5 A	Push-Pull	G	Gold	Shielded	UL94 V-0	IP66/IP68	Brass	Panel Mount, Through Hole	Polyetheretherketone (PEEK)	Solder	Metal	Chrome	-55 °C	200 °C	Bronze	Receptacle, Female Sockets	Silver	316		Bulkhead - Front Side Nut	59 Áin	1.5 Ám	16
LEMO EEG.1K.305.CLL	9 A	Push-Pull	G	Gold	Shielded	UL94 V-0	IP66/IP68	Brass		Polyetheretherketone (PEEK)		Metal	Chrome	-55 °C	200 °C	Bronze	Receptacle, Female Sockets	Silver	305		Bulkhead - Front Side Nut	59 Áin	1.5 Ám
LEMO EEG.1K.304.CYM	10 A	Push-Pull	G	Gold	Shielded	UL94 V-0	IP66/IP68	Brass		Polyetheretherketone (PEEK)	Crimp	Metal	Chrome	-55 °C	200 °C	Bronze	Receptacle, Female Sockets	Silver	304	4	Bulkhead - Front Side Nut	59 Áin	1.5 Ám
LEMO EEG.1K.304.CLL	10 A	Push-Pull	G	Gold	Shielded	UL94 V-0	IP66/IP68	Brass		Polyetheretherketone (PEEK)		Metal	Chrome	-55 °C	200 °C	Bronze	Receptacle, Female Sockets	Silver	304	4	Bulkhead - Front Side Nut	59 Áin	1.5 Ám
LEMO EEG.1K.305.CLV	6 A	Push-Pull	G	Gold	Shielded	UL94 V-0	IP66/IP68	Brass	Panel Mount, Right Angle, Through Hole	Polyetheretherketone (PEEK)	Solder	Metal	Chrome	-55 °C	200 °C	Bronze	Receptacle, Female Sockets	Silver	305		Bulkhead - Front Side Nut	59 Áin	1.5 Ám
LEMO EEG.1K.308.CLL	5 A	Push-Pull	G	Gold	Shielded	UL94 V-0	IP66/IP68	Brass		Polyetheretherketone (PEEK)		Metal	Chrome	-55 °C	200 °C	Bronze	Receptacle, Female Sockets	Silver	308	8	Bulkhead - Front Side Nut	59 Áin	1.5 Ám
LEMO EEG.1K.302.CLL	15 A	Push-Pull	G	Gold	Shielded	UL94 V-0	IP66/IP68	Brass		Polyetheretherketone (PEEK)		Metal	Chrome	-55 °C	200 °C	Bronze	Receptacle, Female Sockets	Silver	302	2	Bulkhead - Front Side Nut	59 Áin	1.5 Ám
LEMO EEG.1K.308.CLN	5 A	Push-Pull	G	Gold	Shielded	UL94 V-0	IP66/IP68	Brass	Panel Mount, Through Hole	Polyetheretherketone (PEEK)	Solder	Metal	Chrome	-55 °C	200 °C	Bronze	Receptacle, Female Sockets	Silver	308	8	Bulkhead - Front Side Nut	59 Áin	1.5 Ám
LEMO EEG.1K.302.CLN	15 A	Push-Pull	G	Gold	Shielded	UL94 V-0	IP66/IP68	Brass	Panel Mount, Through Hole	Polyetheretherketone (PEEK)	Solder	Metal	Chrome	-55 °C	200 °C	Bronze	Receptacle, Female Sockets	Silver	302	2	Bulkhead - Front Side Nut	59 Áin	1.5 Ám
