R115666000

Active

Radiall USA, Inc.

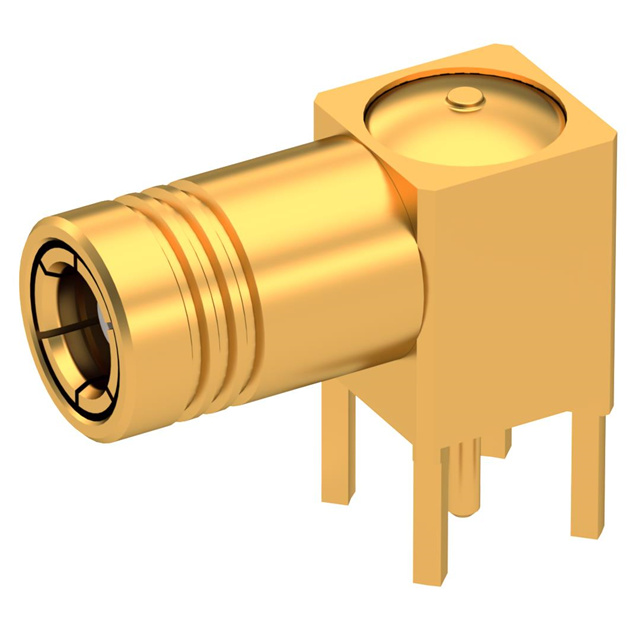

SMB / RIGHT ANGLE PLUG RECEPTACL

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMB / RIGHT ANGLE PLUG RECEPTACL

Technical Specifications

Parameters and characteristics for this part

Specification	R115666000

Body Finish	Gold
Body Material	Beryllium Copper, Brass
Center Contact Material	Bronze, Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Receptacle, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Frequency - Max [Max]	Body Material	Impedance	Connector Style	Center Contact Material	Center Contact Plating	Fastening Type	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Dielectric Material	Mounting Type	Mating Cycles	Body Finish	Contact Termination	Number of Ports	Housing Color
Radiall USA, Inc. R115666000	4 GHz	Beryllium Copper Brass	50 Ohms	SMB	Beryllium Copper Bronze	Gold	Snap-On	Solder	-65 ░C	165 °C	Female Socket Receptacle	Polytetrafluoroethylene (PTFE)	Through Hole Right Angle	500	Gold	Solder	1	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 33.08

General part information

SMB Connector Receptacle, Female Socket 50 Ohms Through Hole, Right Angle Solder
