R4HBLKBLKAF0

Active

E-Switch

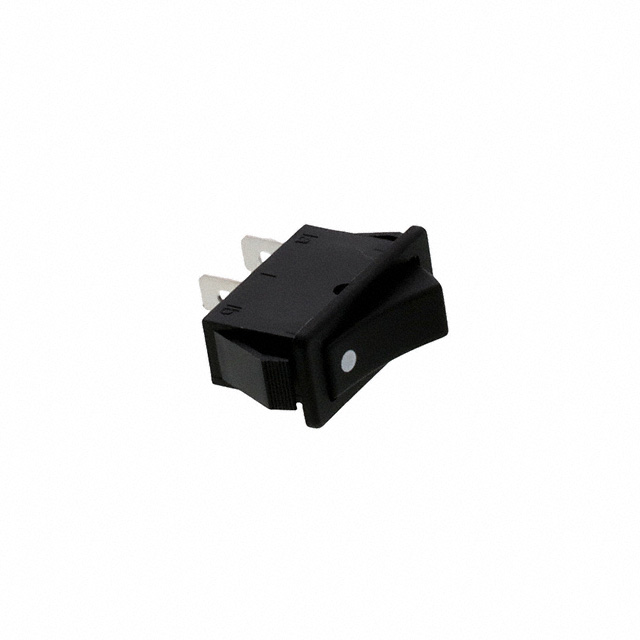

ROCKER; SPST; POS: 2; ON-(OFF); 16A/250VAC; R4; RCONT MAX: 20MΩ

Deep-Dive with AI

Search across all available documentation for this part.

R4HBLKBLKAF0

Active

E-Switch

ROCKER; SPST; POS: 2; ON-(OFF); 16A/250VAC; R4; RCONT MAX: 20MΩ

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R4HBLKBLKAF0

Actuator Marking	Dot
Actuator Type	Concave (Curved)
Approval Agency	UL
Circuit	SPST-NC
Color - Actuator/Cap	Black
Current Rating (Amps)	20 A
Electrical Life	6000 Cycles
Mechanical Life	30000 Steps
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [x]	30.1 mm
Panel Cutout Dimensions [y]	11.1 mm
Switch Function	On-Mom
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V

R4JBLKRI Series

Part	Color - Actuator/Cap	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Type, Color	Termination Style	Circuit	Actuator Marking	Current Rating (Amps)	Electrical Life	Switch Function	Mechanical Life	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Illumination Voltage (Nominal)	Approval Agency	Voltage Rating - AC	Actuator Type	Mounting Type
E-Switch R4JBLKRILEF4	Red	55 °C	-20 C	Incandescent Red	Quick Connect - 0.250" (6.3mm)	SPST	No Marking	20 A	6000 Cycles	On-Off	30000 Steps	30.1 mm	11.1 mm	24 V	UL	125 V	Concave (Curved) - Illuminated	Panel Mount Snap-In
E-Switch R4JBLKRILIF1	Red	55 °C	-20 C	Neon Red	Quick Connect - 0.250" (6.3mm)	SPST	ON OFF Vertical	20 A	6000 Cycles	On-Off	30000 Steps	30.1 mm	11.1 mm	125 VAC	UL	125 V	Concave (Curved) - Illuminated	Panel Mount Snap-In
E-Switch R4HBLKBLKAF0	Black	55 °C	-20 C		Quick Connect - 0.250" (6.3mm)	SPST-NC	Dot	20 A	6000 Cycles	On-Mom	30000 Steps	30.1 mm	11.1 mm		UL	125 V	Concave (Curved)	Panel Mount Snap-In
E-Switch R4JBLKRILFF2	Red	55 °C	-20 C	Neon Red	Quick Connect - 0.250" (6.3mm)	SPST	O -	20 A	6000 Cycles	On-Off	30000 Steps	30.1 mm	11.1 mm	250 VAC	UL	125 V	Concave (Curved) - Illuminated	Panel Mount Snap-In
E-Switch R4JBLKRILEF3	Red	55 °C	-20 C	Incandescent Red	Quick Connect - 0.250" (6.3mm)	SPST	No Marking	20 A	6000 Cycles	On-Off	30000 Steps	30.1 mm	11.1 mm	12 VDC	UL	125 V	Concave (Curved) - Illuminated	Panel Mount Snap-In
E-Switch R4JBLKRILEF2	Red	55 °C	-20 C	Neon Red	Quick Connect - 0.250" (6.3mm)	SPST	No Marking	20 A	6000 Cycles	On-Off	30000 Steps	30.1 mm	11.1 mm	250 VAC	UL	125 V	Concave (Curved) - Illuminated	Panel Mount Snap-In
E-Switch R4JBLKRILFF1	Red	55 °C	-20 C	Neon Red	Quick Connect - 0.250" (6.3mm)	SPST	O -	20 A	6000 Cycles	On-Off	30000 Steps	30.1 mm	11.1 mm	125 VAC	UL	125 V	Concave (Curved) - Illuminated	Panel Mount Snap-In

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.82
		10	$ 1.57
		25	$ 1.48
		50	$ 1.42
		100	$ 1.35
		300	$ 1.26
		500	$ 1.22
		1000	$ 1.17
TME	N/A	100	$ 1.75

Description

General part information

R4JBLKRI Series

Rocker Switch SPST-NC 20A (AC) 125 V Panel Mount, Snap-In
