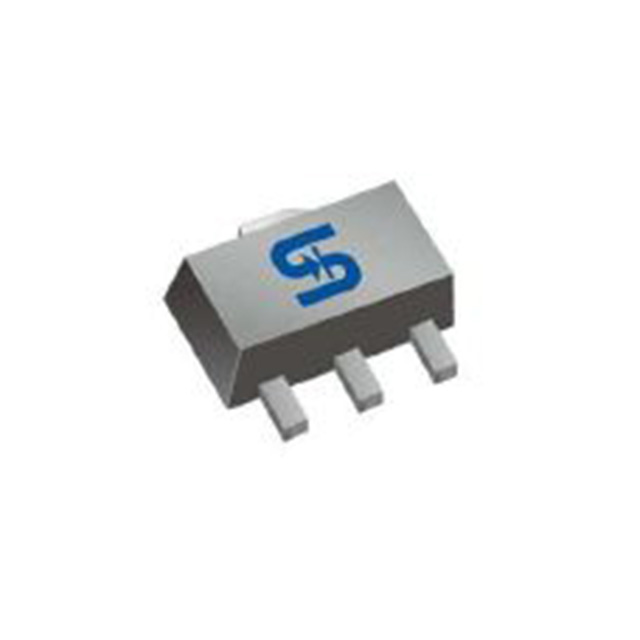

TS9011PCY RMG

Obsolete

Taiwan Semiconductor Corporation

IC REG LINEAR 3V 250MA SOT89

Search across all available documentation for this part.

Obsolete

Taiwan Semiconductor Corporation

IC REG LINEAR 3V 250MA SOT89

Technical Specifications

Parameters and characteristics for this part

Part	Number of Regulators	Package / Case	Voltage Dropout (Max) [Max]	Output Configuration	PSRR	Voltage - Output (Min/Fixed)	Control Features	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Supplier Device Package	Output Type	Protection Features	Current - Quiescent (Iq)	Current - Output	Mounting Type
Taiwan Semiconductor Corporation TS9011DCX RFG	1	SC-59 SOT-23-3 TO-236-3	0.75 V	Positive	30 dB	1.8 V	Current Limit Reset	85 °C	-40 °C	12 V	SOT-23	1.81 mOhm	Over Temperature	5 µA	250 mA	Surface Mount
Taiwan Semiconductor Corporation TS9011KCX RFG	1	SC-59 SOT-23-3 TO-236-3	0.7 V	Positive	30 dB	2.5 V	Current Limit Reset	85 °C	-40 °C	12 V	SOT-23	1.81 mOhm	Over Temperature	5 µA	250 mA	Surface Mount
Taiwan Semiconductor Corporation TS9011SCX RFG	1	SC-59 SOT-23-3 TO-236-3	0.65 V	Positive	30 dB	3.3 V	Current Limit Reset	85 °C	-40 °C	12 V	SOT-23	1.81 mOhm	Over Temperature	5 µA	250 mA	Surface Mount
Taiwan Semiconductor Corporation TS9011PCY RMG	1	TO-243AA	0.7 V	Positive	30 dB		Current Limit Reset	85 °C	-40 °C	12 V		1.81 mOhm	Over Temperature	5 µA	250 mA	Surface Mount
Taiwan Semiconductor Corporation TS9011KCY RMG	1	TO-243AA	0.7 V	Positive	30 dB	2.5 V	Current Limit Reset	85 °C	-40 °C	12 V		1.81 mOhm	Over Temperature	5 µA	250 mA	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Linear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-89

Technical documentation and resources

No documents available
