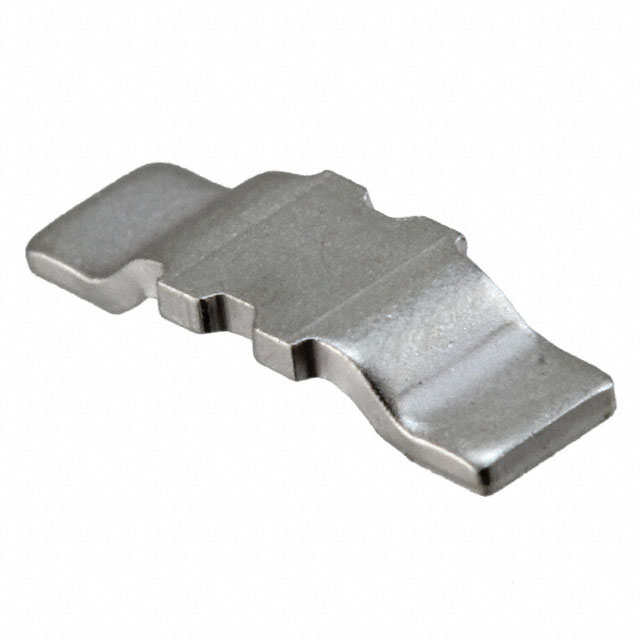

5102TR
ActiveKeystone Electronics
MICRO-MINIATURE SMT JUMPER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5102TR
ActiveKeystone Electronics
MICRO-MINIATURE SMT JUMPER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 5102TR |
|---|---|
| Contact Finish | Silver |
| Current Rating (Amps) | 20 A |
| Gender | Non-Gendered |
| Height [z] | 0.039 in |
| Height [z] | 1 mm |
| Number of Positions or Pins (Grid) [custom] | 1 x 2 |
| Number of Positions or Pins (Grid) [custom] | 2 |
| Pitch [x] | 0.114 in |
| Pitch [x] | 2.9 mm |
| Type | Non-Insulated |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.36 | |
| 25 | $ 0.31 | |||
| 100 | $ 0.23 | |||
| 250 | $ 0.22 | |||
| Digi-Reel® | 1 | $ 0.36 | ||
| 25 | $ 0.31 | |||
| 100 | $ 0.23 | |||
| 250 | $ 0.22 | |||
| Tape & Reel (TR) | 500 | $ 0.21 | ||
| 1000 | $ 0.16 | |||
| 1500 | $ 0.15 | |||
| 2500 | $ 0.14 | |||
| 3500 | $ 0.14 | |||
| 5000 | $ 0.13 | |||
| 12500 | $ 0.13 | |||
Description
General part information
5102 Series
2 (1 x 2) Position Shunt Connector Non-Insulated 0.114" (2.90mm) Silver
