USB4520-03-0-A

Active

GCT

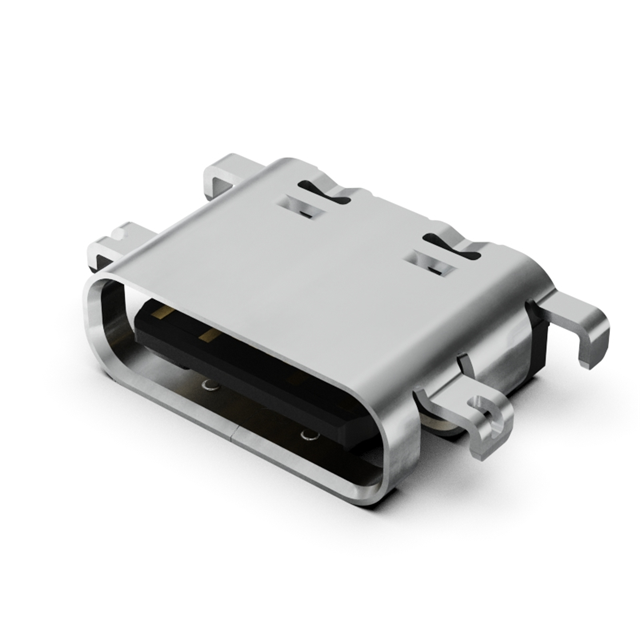

USB C REC 16P 3U" MID MNT 2.1MM

Search across all available documentation for this part.

Active

GCT

USB C REC 16P 3U" MID MNT 2.1MM

Technical Specifications

Parameters and characteristics for this part

Specification	USB4520-03-0-A

Connector Type	USB-C (USB TYPE-C)
Contact Finish	Gold
Current Rating (Amps)	5 A
Features	Solder Retention Tab
Gender	Receptacle
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mating Cycles	10000
Mounting Feature	Horizontal, Mid Mount
Mounting Type	Board Edge, Cutout, Through Hole, Right Angle, Surface Mount
Number of Contacts	24
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell/Shielding Material	Steel (SUS304)
Shielding	Shielded
Specifications	USB 2.0
Termination	Solder
Voltage - Rated [custom]	48 VDC

USB C REC 16P 3U" MID MNT 2.1MM

Part	Connector Type	Shell/Shielding Material	Voltage - Rated [custom]	Termination	Current Rating (Amps)	Mating Cycles	Number of Contacts	Material Flammability Rating	Specifications	Shielding	Features	Mounting Feature	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Number of Ports	Mounting Type	Gender
GCT USB4520-03-0-A	USB-C (USB TYPE-C)	Steel (SUS304)	48 VDC	Solder	5 A	10000	24	UL94 V-0	USB 2.0	Shielded	Solder Retention Tab	Horizontal, Mid Mount	Black	-25 °C	85 °C	Gold	1	Board Edge, Cutout, Surface Mount, Through Hole, Right Angle	Receptacle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB-C (USB TYPE-C) USB 2.0 Receptacle Connector 24 (16+8 Dummy) Position Board Edge, Cutout; Surface Mount; Through Hole, Right Angle
