EVALM12ED2106STOBO1
ActiveHIGH AND LOW SIDE GATE DRIVER EVALUATION BOARD WITH 650 V IGBT6
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EVALM12ED2106STOBO1 |
|---|---|
| Contents | Board(s) |
| Type | Power Management |
| Utilized IC / Part | M12ED2106S |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
EVALM12 Series

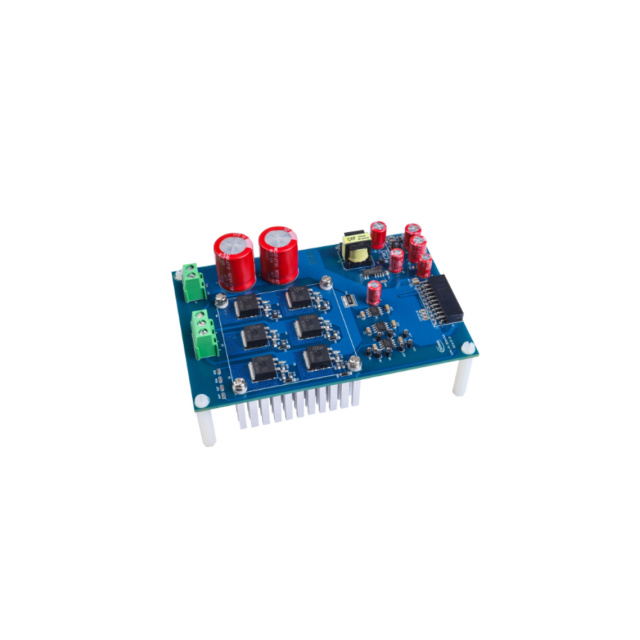

The EVAL-M1-2ED2106S board is a power drive board including the gate driver ICs, IGBTs, power connector and signal interface. The board is intended to drive a BLDC (Brush-less Direct Current) motor by connecting to an external controller board such asEVAL-M1-101T. The board aims to boost the promoted 650 V high and low side gate driver2ED2106S06Fusing theSOI (Silicon-on-Isolator) technology.
