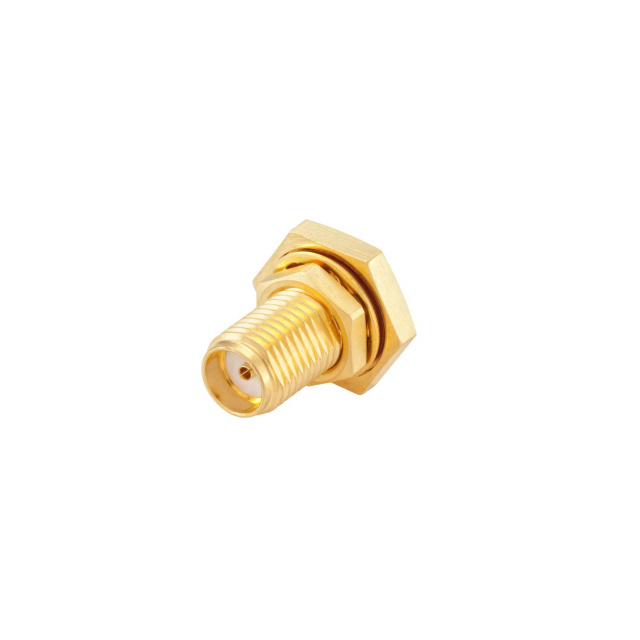

32K601-271L5

Active

Rosenberger

CONN SMA JACK STR 50OHM SOLDER

Search across all available documentation for this part.

Active

Rosenberger

CONN SMA JACK STR 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	32K601-271L5

Body Finish	Gold
Body Material	Beryllium Copper
Cable Group	RG-405 (.085" Semi Rigid)
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	480 V

Part	Center Contact Material	Dielectric Material	Convert To (Adapter End)	Impedance	Center Contact Plating	Center Gender	Frequency - Max [Max]	Body Finish	Body Material	Includes	Mounting Feature	Style	Conversion Type	Operating Temperature [Min]	Operating Temperature [Max]	Adapter Type	Mating Cycles	Adapter Series	Convert From (Adapter End)	Housing Color	Contact Termination	Shield Termination	Number of Ports	Voltage Rating	Connector Type	Connector Style	Cable Group
Rosenberger 32K601-K00L5	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Female Socket SMA Jack	50 Ohms	Gold	Female to Female	18 GHz	Gold	Beryllium Copper	1 Connector 1 Lockwasher 1 Nut	Bulkhead	Straight	Same Series	-65 ░C	165 °C	Jack to Jack	500	SMA to SMA	Female Socket SMA Jack
Rosenberger 32K601-272L5	Beryllium Copper	Polytetrafluoroethylene (PTFE)		50 Ohms	Gold		18 GHz	Gold	Beryllium Copper	1 Connector 1 Lockwasher 1 Nut	Bulkhead - Front Side Nut			-65 ░C	165 °C		500			Gold	Solder	Solder	1	480 V	Female Socket Jack	SMA
Rosenberger 32K601-271L5	Beryllium Copper	Polytetrafluoroethylene (PTFE)		50 Ohms	Gold		18 GHz	Gold	Beryllium Copper	1 Connector 1 Lockwasher 1 Nut	Bulkhead - Front Side Nut			-65 ░C	165 °C		500			Gold	Solder	Solder	1	480 V	Female Socket Jack	SMA	RG-405 (.085" Semi Rigid)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Jack, Female Socket 50 Ohms Panel Mount Solder
