Description

General part information

0805J Series

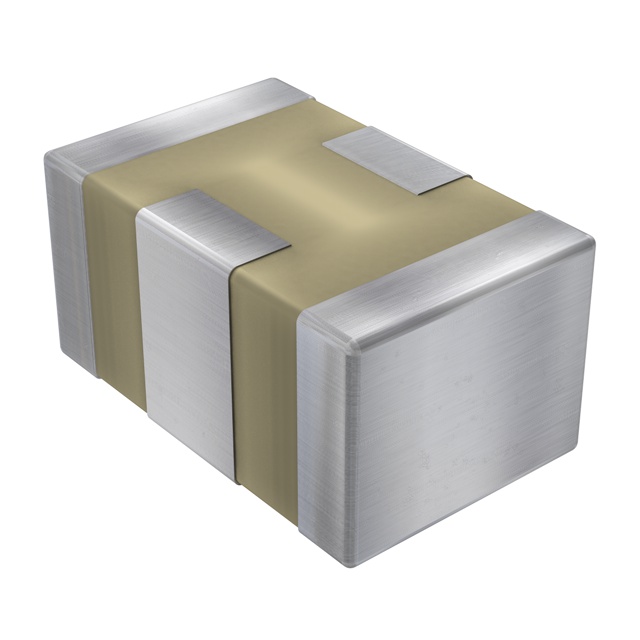

2200 pF Feed Through Capacitor 100V 300 mA 0805 (2012 Metric)

Technical Specifications

Parameters and characteristics for this part

Specification	0805J1000222MXTE01

Capacitance	2200 pF
Current	300 mA
Height (Max)	0.045 in
Insertion Loss	34 dB
Mounting Type	Surface Mount
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Package / Case	0805 (2012 Metric)
Size / Dimension Height	0.045 in
Size / Dimension Length	0.079 in
Size / Dimension Width	0.049 in
Temperature Coefficient	X7R
Tolerance	20 %
Voltage - Rated	100 VAC/DC

0805J Series

...

Part	Temperature Coefficient	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Applications	Tolerance	Capacitance	Thickness (Max)	Size / Dimension Length	Size / Dimension Width	Voltage - Rated	Package / Case	Features	Insertion Loss	Size / Dimension Height	Current	Height (Max)
Knowles Syfer 0805J0250223KXT	X7R	125 °C	-55 °C	MLCC Surface Mount	General Purpose	10 %	0.022 µF	0.051 in	0.079 in	0.049 in	25 VAC	0805 (2012 Metric)
Knowles Syfer 0805J0500102MXT	X7R	125 °C	-55 °C	MLCC Surface Mount	General Purpose	20 %	1000 pF	0.051 in	0.079 in	0.049 in	50 V	0805 (2012 Metric)
Knowles Syfer 0805J0630222KDT	X7R	125 °C	-55 °C	MLCC Surface Mount	High Reliability	10 %	2200 pF	0.051 in	0.079 in	0.049 in	63 V	0805 (2012 Metric)	High Temperature
Knowles Syfer 0805J0160121MXT	X7R	125 °C	-55 °C	MLCC Surface Mount	General Purpose	20 %	120 pF	0.051 in	0.079 in	0.049 in	16 V	0805 (2012 Metric)
Knowles Syfer 0805J2000332MDT	X7R	125 °C	-55 °C	MLCC Surface Mount	High Reliability	20 %	3300 pF	0.051 in	0.079 in	0.049 in	200 VDC	0805 (2012 Metric)	High Temperature
Knowles Syfer 0805J0638P20CCT	C0G NP0 (1B)	125 °C	-55 °C	MLCC Surface Mount	General Purpose	0.25 pF	8.2 pF	0.051 in	0.079 in	0.049 in	63 V	0805 (2012 Metric)
Knowles Syfer 0805J5000181KXT	X7R	125 °C	-55 °C	MLCC Surface Mount	General Purpose	10 %	180 pF	0.051 in	0.079 in	0.049 in	500 V	0805 (2012 Metric)
Knowles Syfer 0805J1K00152MXT	X7R	125 °C	-55 °C	MLCC Surface Mount	General Purpose	20 %	1500 pF	0.051 in	0.079 in	0.049 in	1000 V	0805 (2012 Metric)
Knowles Syfer 0805J0506P80CFT	C0G NP0	125 °C	-55 °C	MLCC Surface Mount	High Reliability	0.25 pF	6.8 pF	0.051 in	0.079 in	0.049 in	50 V	0805 (2012 Metric)	High Temperature
Knowles Syfer 0805J1000222MXTE01	X7R	125 °C	-55 °C	Surface Mount		20 %	2200 pF		0.079 in	0.049 in	100 VAC/DC	0805 (2012 Metric)		34 dB	0.045 in	300 mA	0.045 in
