926299-3

Active

TE Connectivity AMP Connectors

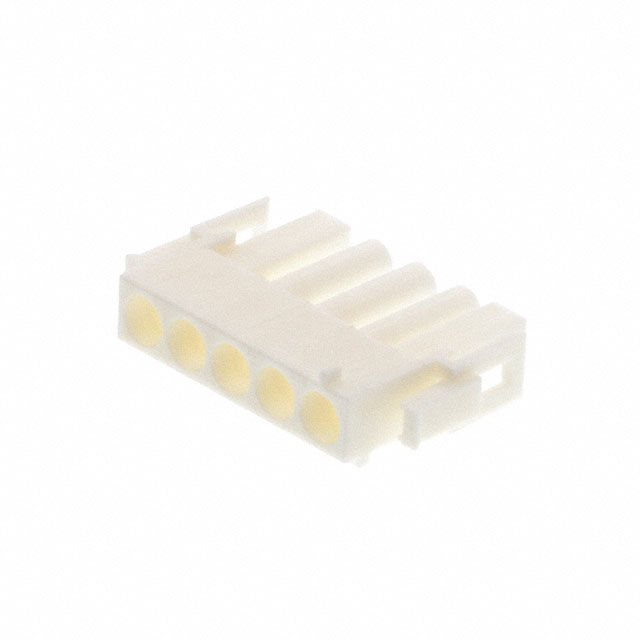

CONN PLUG HSG 5POS 6.35MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG HSG 5POS 6.35MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Rectangular Connectors - Housings Plug Natural 0.250" (6.35mm)

Technical documentation and resources

Specification	926299-3	926299 Series

Color	Natural	Natural
Connector Type	Plug	Plug
Contact Termination	Crimp	Crimp
Contact Type	Male Pin	Male Pin
Fastening Type	Latch Lock	Latch Lock
Insulation Material	Polyamide (PA6), Nylon 6	Polyamide (PA6), Nylon 6, Polyamide (PA), Nylon
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Rows	1	1
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch [x]	0.25 in	0.25 in
Pitch [x]	6.35 mm	6.35 mm

Part	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Note	Contact Type	Contact Termination	Connector Type	Pitch [x]	Pitch [x]	Color	Mounting Type	Insulation Material	Number of Rows
TE Connectivity AMP Connectors 926299-3	Latch Lock	-55 °C	125 °C	Contacts Not Included	Male Pin	Crimp	Plug	0.25 in	6.35 mm	Natural	Free Hanging (In-Line)	Polyamide (PA6), Nylon 6	1
TE Connectivity AMP Connectors 926299-1	Latch Lock	-55 °C	125 °C	Contacts Not Included	Male Pin	Crimp	Plug	0.25 in	6.35 mm	Natural	Free Hanging (In-Line)	Nylon, Polyamide (PA)	1
