Connectors, Interconnects
794537-1
ActiveTE Connectivity Raychem Cable Protection

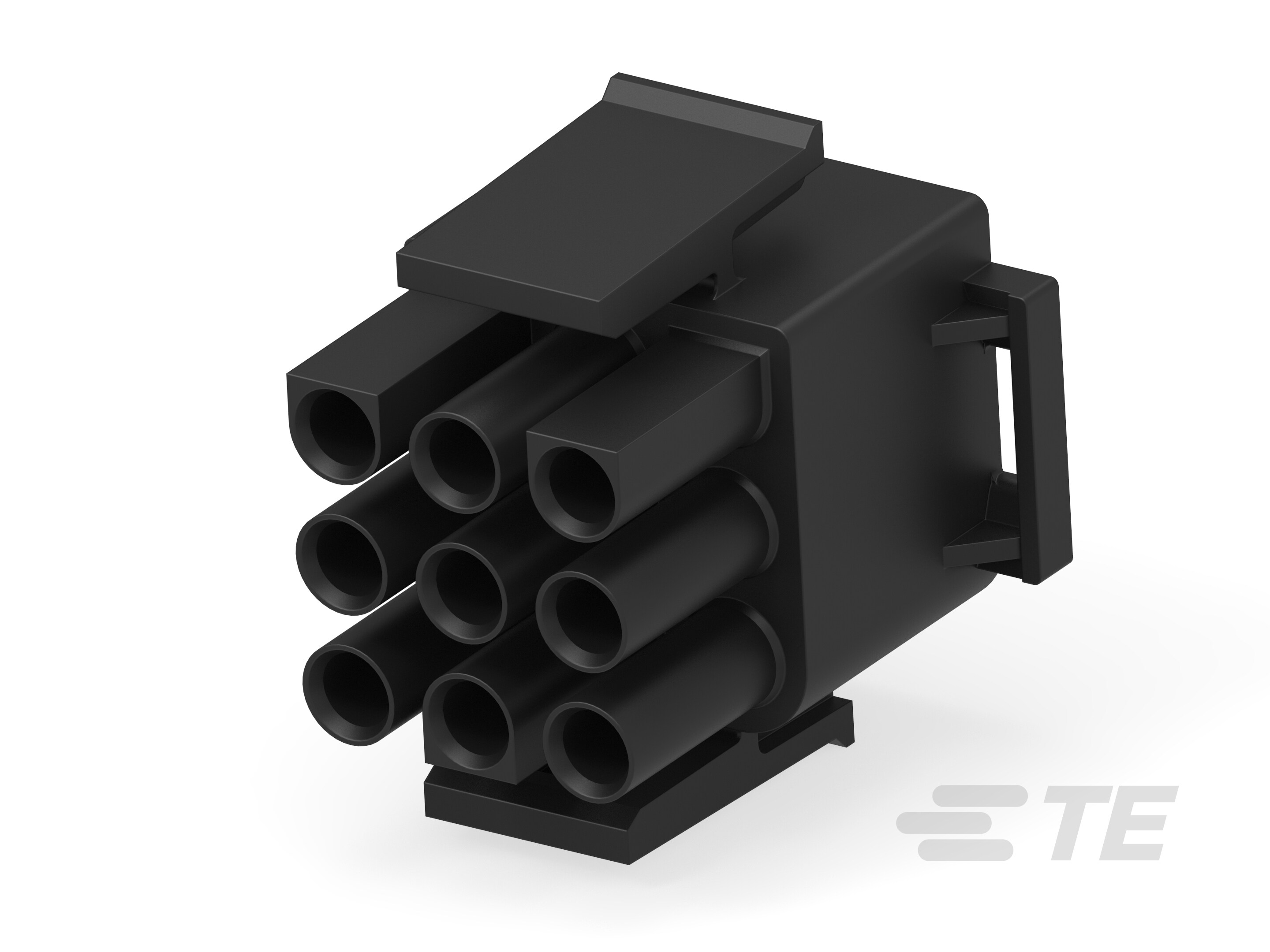

CONN PLUG HSG 9POS 150C BLK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 794537-1 |
|---|---|
| Color | Black |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Male or Female |
| Fastening Type | Latch Lock |
| Insulation Material | Polyamide (PA), Nylon |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 9 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Row Spacing | 6.35 mm |
| Row Spacing | 0.25 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
794537 Series
9 Rectangular Connectors - Housings Plug Black
