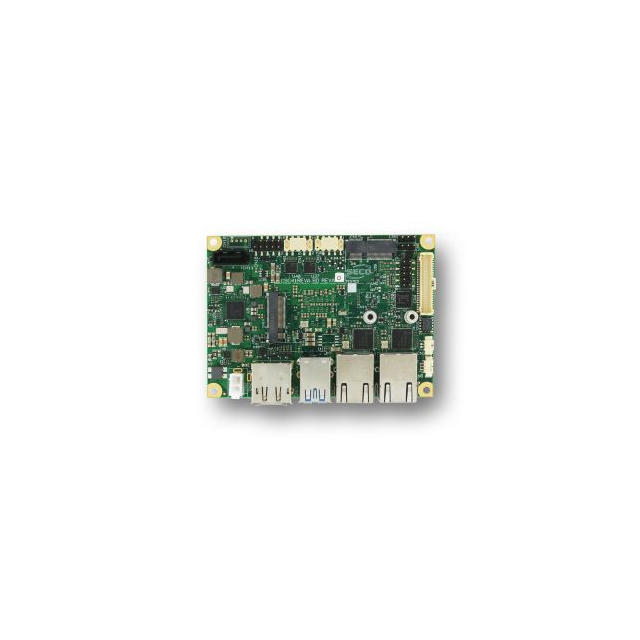

SC41-1741-2121-C0

UDOO

SBC 2.4GHZ 4 CORE 8GB/0GB RAM

Search across all available documentation for this part.

UDOO

SBC 2.4GHZ 4 CORE 8GB/0GB RAM

Technical Specifications

Parameters and characteristics for this part

Specification	SC41-1741-2121-C0

Contents	HDMI Cable
Cooling Type	Fan
Core Processor	Intel Celeron N3350
Ethernet	GbE (2)
Form Factor	Pico-ITX
Number of Cores	4
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	0 °C
RAM Capacity/Installed [custom]	8 GB
RAM Capacity/Installed [custom]	0 GB
RS-232 (422, 485)	2
Size / Dimension [x]	3.93 in
Size / Dimension [x]	99.82 mm
Size / Dimension [y]	2.83 in
Size / Dimension [y]	71.88 mm
Storage Interface	SATA, eMMC, microSD, SSD
USB	2, 2
Video Outputs	HDMI, LVDS, DP++
Watchdog Timer	False

SBC 2.4GHZ 4 CORE 8GB/0GB RAM

Part	Storage Interface	Video Outputs	Contents	Core Processor	RS-232 (422, 485)	USB	RAM Capacity/Installed [custom]	RAM Capacity/Installed [custom]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Number of Cores	Watchdog Timer	Operating Temperature [Max]	Operating Temperature [Min]	Ethernet	Form Factor	Cooling Type
UDOO SC41-1741-2121-C0	eMMC, microSD, SATA, SSD	DP++, HDMI, LVDS	HDMI Cable	Intel Celeron N3350	2	2, 2	8 GB	0 GB	2.83 in	71.88 mm	3.93 in	99.82 mm	4		60 °C	0 °C	GbE (2)	Pico-ITX	Fan

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	10	$ 389.74

General part information

Single Board Computer 2.4GHz 4 Core 8GB/0GB RAM Intel Celeron N3350
