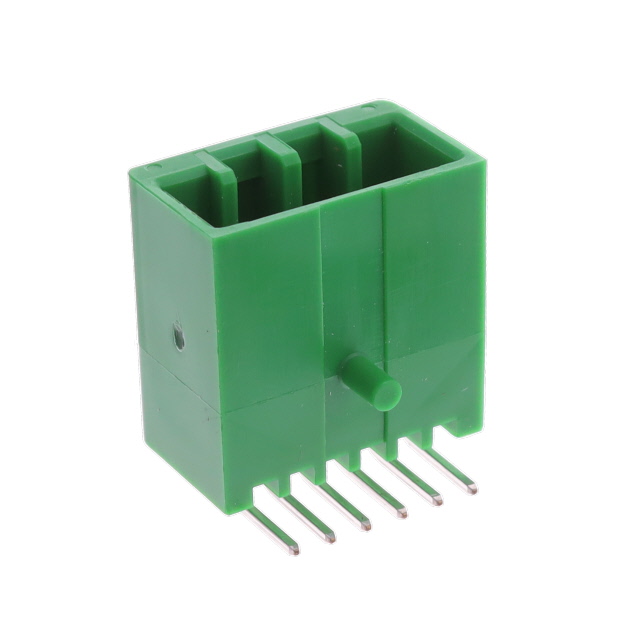

IL-AG5-6P-S3L2
ActiveJAE Electronics
CONN HEADER R/A 6POS 2.5MM
Deep-Dive with AI
Search across all available documentation for this part.
IL-AG5-6P-S3L2
ActiveJAE Electronics
CONN HEADER R/A 6POS 2.5MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IL-AG5-6P-S3L2 |
|---|---|
| Applications | Automotive |
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Length - Mating | 8.4 mm |
| Contact Length - Mating | 0.331 in |
| Contact Length - Post | 3.5 mm |
| Contact Length - Post | 0.138 in |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Features | Board Guide |
| Insulation Color | Green |
| Insulation Height | 0.433 in |
| Insulation Height | 11 mm |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 2.5 mm |
| Pitch - Mating | 0.098 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
IL-AG5-6 Series
| Part | Contact Finish - Post | Number of Rows | Applications | Contact Length - Post | Contact Length - Post | Mounting Type | Insulation Height | Insulation Height | Connector Type | Number of Positions Loaded | Insulation Color | Contact Shape | Current Rating (Amps) | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Shrouding | Fastening Type | Contact Type | Pitch - Mating | Pitch - Mating | Contact Material | Contact Length - Mating | Contact Length - Mating | Style | Insulation Material | Features | Mated Stacking Heights | Overall Contact Length | Overall Contact Length | Color | Note | Pitch [x] | Pitch [x] | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
JAE Electronics | Tin | 1 | Automotive | 3.5 mm | 0.138 in | Through Hole Right Angle | 0.591 in | 15 mm | Header | All | Gray | Square | 3 A | 6 | 85 °C | -40 °C | Solder | Shrouded - 4 Wall | Push-Pull | Male Pin | 2.5 mm | 0.098 in | Brass | 8.4 mm | 0.331 in | Board to Cable/Wire | Polybutylene Terephthalate (PBT) | Board Guide | ||||||||
JAE Electronics | Tin | 1 | Automotive | 3.5 mm | 0.138 in | Through Hole | 0.717 in | 18.2 mm | Header | All | Green | Square | 3 A | 6 | 85 °C | -40 °C | Solder | Shrouded - 4 Wall | Push-Pull | Male Pin | 2.5 mm | 0.098 in | Brass | 8.4 mm | 0.331 in | Board to Cable/Wire | Polybutylene Terephthalate (PBT) | 28.2 mm | 15.09 mm | 0.594 in | ||||||
JAE Electronics | 1 | Free Hanging (In-Line) | Receptacle | 6 | 85 °C | -40 °C | Latch Lock | Female Socket | Polybutylene Terephthalate (PBT) | Green | Contacts Not Included | 0.098 in | 2.5 mm | Crimp | ||||||||||||||||||||||
JAE Electronics | Tin | 1 | Automotive | 3.5 mm | 0.138 in | Through Hole Right Angle | 0.433 in | 11 mm | Header | All | Green | Square | 3 A | 6 | 85 °C | -40 °C | Solder | Shrouded - 4 Wall | Push-Pull | Male Pin | 2.5 mm | 0.098 in | Brass | 8.4 mm | 0.331 in | Board to Cable/Wire | Polybutylene Terephthalate (PBT) | Board Guide |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.85 | |
| 10 | $ 1.61 | |||
| 100 | $ 1.44 | |||
| 500 | $ 1.20 | |||
| 1000 | $ 1.03 | |||
| 5000 | $ 0.91 | |||
| 10000 | $ 0.89 | |||
Description
General part information
IL-AG5-6 Series
Connector Header Through Hole, Right Angle 6 position 0.098" (2.50mm)
