A6KV-104RF
ActiveOmron Electronics Inc-EMC Div
SWITCH ROTARY DIP BCD 0.025A 24V
Deep-Dive with AI
Search across all available documentation for this part.
A6KV-104RF
ActiveOmron Electronics Inc-EMC Div
SWITCH ROTARY DIP BCD 0.025A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A6KV-104RF | A6KV Series |
|---|---|---|
| Actuator Level | Flush, Recessed | Raised, Flush, Recessed |
| Actuator Type | Rotary for Tool | Rotary with Shaft, Rotary for Tool |
| Circuit | BCD | BCD, Hexadecimal |
| Contact Finish | Gold | Gold |
| Current Rating (Amps) | 25 mA | 25 mA |
| Electrical Life | 20000 Steps | 20000 Steps |
| Height Above Board [z] | 0.303 in | 0.303 in |
| Height Above Board [z] | 7.7 mm | 7.7 mm |
| Length [x] | 7.2 mm | 7.2 mm |
| Length [x] | 0.283 " | 0.283 " |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Number of Positions | 10 | 10 |
| Number of Positions | - | 16 |
| Operating Temperature [Max] | 80 C | 80 C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Pitch | - | Full |
| Pitch [x] | 0.05 in | 0.05 - 0.1 in |
| Pitch [x] | 1.27 mm | 1.27 - 2.54 mm |
| Termination Style | PC Pin | PC Pin |
| Voltage Rating | 24 VDC | 24 VDC |
| Washable | False | False |
A6KV Series
SWITCH ROTARY DIP BCD 0.025A 24V
| Part | Actuator Type | Actuator Level | Current Rating (Amps) | Circuit | Washable | Length [x] | Length [x] | Number of Positions | Pitch [x] | Pitch [x] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Height Above Board [z] | Height Above Board [z] | Termination Style | Electrical Life | Mounting Type | Voltage Rating | Number of Positions | Pitch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Omron Electronics Inc-EMC Div A6KV-104RS | Rotary with Shaft | Raised | 25 mA | BCD | 7.2 mm | 0.283 " | 10 | 0.05 in | 1.27 mm | -30 ░C | 80 C | Gold | 0.303 in | 7.7 mm | PC Pin | 20000 Steps | Through Hole, Right Angle | 24 VDC | |||
Omron Electronics Inc-EMC Div A6KV-104RF | Rotary for Tool | Flush, Recessed | 25 mA | BCD | 7.2 mm | 0.283 " | 10 | 0.05 in | 1.27 mm | -30 ░C | 80 C | Gold | 0.303 in | 7.7 mm | PC Pin | 20000 Steps | Through Hole, Right Angle | 24 VDC | |||
Omron Electronics Inc-EMC Div A6KV-164RS | Rotary with Shaft | Raised | 25 mA | Hexadecimal | 7.2 mm | 0.283 " | 0.05 in | 1.27 mm | -30 ░C | 80 C | Gold | 0.303 in | 7.7 mm | PC Pin | 20000 Steps | Through Hole, Right Angle | 24 VDC | 16 | |||
Omron Electronics Inc-EMC Div A6KV-102RS | Rotary with Shaft | Raised | 25 mA | BCD | 7.2 mm | 0.283 " | 10 | 0.1 in | 2.54 mm | -30 ░C | 80 C | Gold | 0.303 in | 7.7 mm | PC Pin | 20000 Steps | Through Hole, Right Angle | 24 VDC | Full | ||
Omron Electronics Inc-EMC Div A6KV-164RF | Rotary for Tool | Flush, Recessed | 25 mA | Hexadecimal | 7.2 mm | 0.283 " | 0.05 in | 1.27 mm | -30 ░C | 80 C | Gold | 0.303 in | 7.7 mm | PC Pin | 20000 Steps | Through Hole, Right Angle | 24 VDC | 16 | |||
Omron Electronics Inc-EMC Div A6KV-102RF | Rotary for Tool | Flush, Recessed | 25 mA | BCD | 7.2 mm | 0.283 " | 10 | 0.1 in | 2.54 mm | -30 ░C | 80 C | Gold | 0.303 in | 7.7 mm | PC Pin | 20000 Steps | Through Hole, Right Angle | 24 VDC | Full |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 9.10 | |
| 10 | $ 8.68 | |||
| 60 | $ 7.36 | |||
| 120 | $ 6.82 | |||
| 300 | $ 6.20 | |||
| 540 | $ 5.75 | |||
| 1020 | $ 5.33 | |||
Description
General part information
A6KV Series

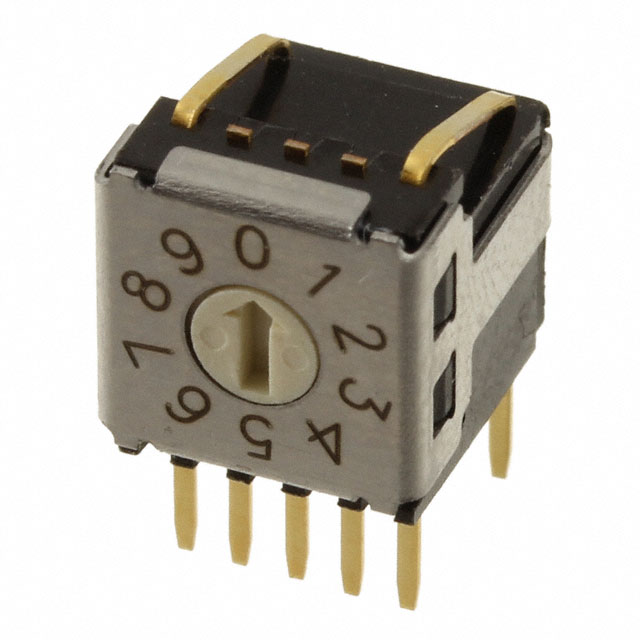

Dip Switch BCD 10 Position Through Hole, Right Angle Rotary for Tool Actuator 25mA 24VDC
