A6KV-102RS

Active

Omron Electronics Inc-EMC Div

SWITCH ROTARY DIP BCD 0.025A 24V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH ROTARY DIP BCD 0.025A 24V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

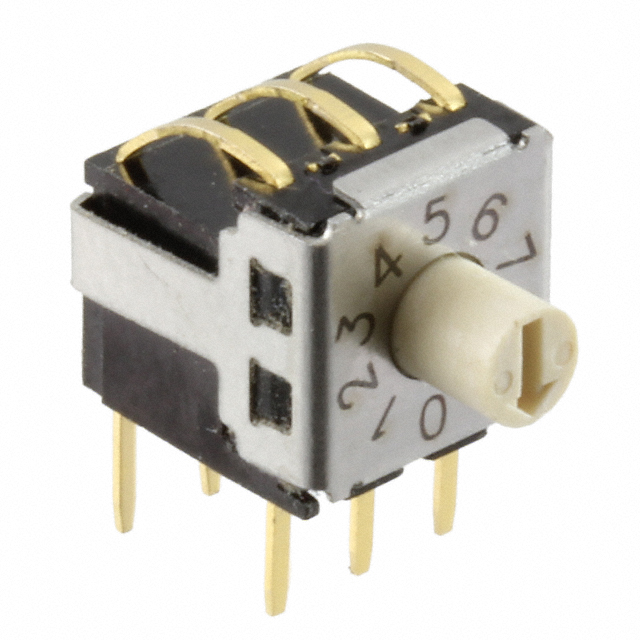

Dip Switch BCD 10 Position Through Hole, Right Angle Rotary with Shaft Actuator 25mA 24VDC

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	A6KV-102RS	A6KV Series

Actuator Level	Raised	Raised, Flush, Recessed
Actuator Type	Rotary with Shaft	Rotary with Shaft, Rotary for Tool
Circuit	BCD	BCD, Hexadecimal
Contact Finish	Gold	Gold
Current Rating (Amps)	25 mA	25 mA
Electrical Life	20000 Steps	20000 Steps
Height Above Board [z]	0.303 in	0.303 in
Height Above Board [z]	7.7 mm	7.7 mm
Length [x]	7.2 mm	7.2 mm
Length [x]	0.283 "	0.283 "
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	10	10
Number of Positions	-	16
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-30 ░C	-30 ░C
Pitch	Full	Full
Pitch [x]	0.1 in	0.05 - 0.1 in
Pitch [x]	2.54 mm	1.27 - 2.54 mm
Termination Style	PC Pin	PC Pin
Voltage Rating	24 VDC	24 VDC
Washable	False	False

SWITCH ROTARY DIP BCD 0.025A 24V

Part	Actuator Type	Actuator Level	Current Rating (Amps)	Circuit	Length [x]	Length [x]	Number of Positions	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Height Above Board [z]	Height Above Board [z]	Termination Style	Electrical Life	Mounting Type	Voltage Rating	Number of Positions	Pitch
Omron Electronics Inc-EMC Div A6KV-104RS	Rotary with Shaft	Raised	25 mA	BCD	7.2 mm	0.283 "	10	0.05 in	1.27 mm	-30 ░C	80 C	Gold	0.303 in	7.7 mm	PC Pin	20000 Steps	Through Hole, Right Angle	24 VDC
Omron Electronics Inc-EMC Div A6KV-104RF	Rotary for Tool	Flush, Recessed	25 mA	BCD	7.2 mm	0.283 "	10	0.05 in	1.27 mm	-30 ░C	80 C	Gold	0.303 in	7.7 mm	PC Pin	20000 Steps	Through Hole, Right Angle	24 VDC
Omron Electronics Inc-EMC Div A6KV-164RS	Rotary with Shaft	Raised	25 mA	Hexadecimal	7.2 mm	0.283 "		0.05 in	1.27 mm	-30 ░C	80 C	Gold	0.303 in	7.7 mm	PC Pin	20000 Steps	Through Hole, Right Angle	24 VDC	16
Omron Electronics Inc-EMC Div A6KV-102RS	Rotary with Shaft	Raised	25 mA	BCD	7.2 mm	0.283 "	10	0.1 in	2.54 mm	-30 ░C	80 C	Gold	0.303 in	7.7 mm	PC Pin	20000 Steps	Through Hole, Right Angle	24 VDC		Full
Omron Electronics Inc-EMC Div A6KV-164RF	Rotary for Tool	Flush, Recessed	25 mA	Hexadecimal	7.2 mm	0.283 "		0.05 in	1.27 mm	-30 ░C	80 C	Gold	0.303 in	7.7 mm	PC Pin	20000 Steps	Through Hole, Right Angle	24 VDC	16
Omron Electronics Inc-EMC Div A6KV-102RF	Rotary for Tool	Flush, Recessed	25 mA	BCD	7.2 mm	0.283 "	10	0.1 in	2.54 mm	-30 ░C	80 C	Gold	0.303 in	7.7 mm	PC Pin	20000 Steps	Through Hole, Right Angle	24 VDC		Full
