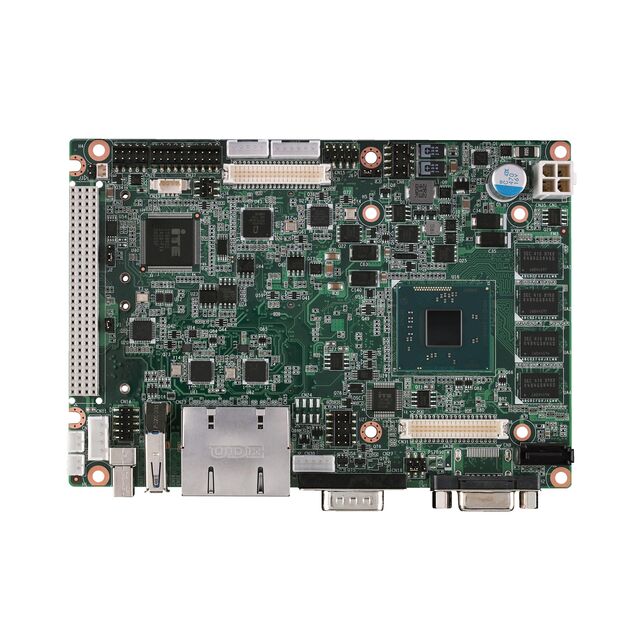

PCM-9365N-4GS8A1E

Active

Advantech Corp

SBC 1.83GHZ 4 CORE 4GB/4GB RAM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PCM-9365N-4GS8A1E

Active

Advantech Corp

SBC 1.83GHZ 4 CORE 4GB/4GB RAM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PCM-9365N-4GS8A1E

Cooling Type	Heat Sink
Core Processor	Intel Celeron N2930
Digital I/O Lines	8
Ethernet	10 Mbps, 1000 Mbps, 100 Mbps
Expansion Site/Bus	PCI-104, mPCIe
Form Factor	PC/104
Number of Cores	4
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	0 °C
Power (Watts)	6.108 W
RS-232 (422, 485)	4
Size / Dimension [x]	5.7 "
Size / Dimension [x]	144.78 mm
Size / Dimension [y]	101.6 mm
Size / Dimension [y]	4 "
Speed	1.83 GHz
Storage Interface	mSATA, SATA
USB	USB 2.0 (5), USB 3.0 (1)
Video Outputs	OpenGL, LVDS, HDMI, DirectX11, VGA, OpenCL, Multi-Display, DVI
Watchdog Timer	True

PCM-9365 Series

Part	Cooling Type	Speed	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Digital I/O Lines	Form Factor	Operating Temperature [Max]	Number of Cores	RS-232 (422, 485)	Ethernet	Expansion Site/Bus	Core Processor	Storage Interface	Video Outputs	USB	Power (Watts)	RAM Capacity/Installed [custom]	RAM Capacity/Installed [custom]
Advantech Corp PCM-9365NZ24GS8A1E	Heat Sink	1.83 GHz	101.6 mm	4 "	5.7 "	144.78 mm	8	PC/104	60 °C	4	4	10 Mbps 100 Mbps 1000 Mbps	mPCIe PCI-104	Intel Celeron N2930	mSATA SATA	DirectX11 DVI HDMI LVDS Multi-Display OpenCL OpenGL VGA	USB 2.0 (5) USB 3.0 (1)
Advantech Corp PCM-9365N-4GS8A1E	Heat Sink	1.83 GHz	101.6 mm	4 "	5.7 "	144.78 mm	8	PC/104	60 °C	4	4	10 Mbps 100 Mbps 1000 Mbps	mPCIe PCI-104	Intel Celeron N2930	mSATA SATA	DirectX11 DVI HDMI LVDS Multi-Display OpenCL OpenGL VGA	USB 2.0 (5) USB 3.0 (1)	6.108 W
Advantech Corp PCM-9365N-4GS8A1E	Heat Sink	1.83 GHz	101.6 mm	4 "	5.7 "	144.78 mm	8	PC/104	60 °C	4	4	10 Mbps 100 Mbps 1000 Mbps	mPCIe PCI-104	Intel Celeron N2930	mSATA SATA	DirectX11 DVI HDMI LVDS Multi-Display OpenCL OpenGL VGA	USB 2.0 (5) USB 3.0 (1)	6.108 W
Advantech Corp PCM-9365E-2GS3A1E	Heat Sink		101.6 mm	4 "	5.7 "	144.78 mm	8	PC/104	60 °C	2	4	10 Mbps 100 Mbps 1000 Mbps	mPCIe PCI-104	Intel Atom E3825	mSATA SATA	DirectX11 DVI HDMI LVDS Multi-Display OpenCL OpenGL VGA	USB 2.0 (5) USB 3.0 (1)	4.68 W	2 GB	4 GB
Advantech Corp PCM-9365EZ22GS3A1E	Heat Sink		101.6 mm	4 "	5.7 "	144.78 mm	8	PC/104	60 °C	2	4	10 Mbps 100 Mbps 1000 Mbps	mPCIe PCI-104	Intel Atom E3825	mSATA SATA	DirectX11 DVI HDMI LVDS Multi-Display OpenCL OpenGL VGA	USB 2.0 (5) USB 3.0 (1)		2 GB	4 GB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 660.11
		1	$ 660.11

Description

General part information

PCM-9365 Series

Single Board Computer 1.83GHz 4 Core 4GB/4GB RAM Intel Celeron N2930
