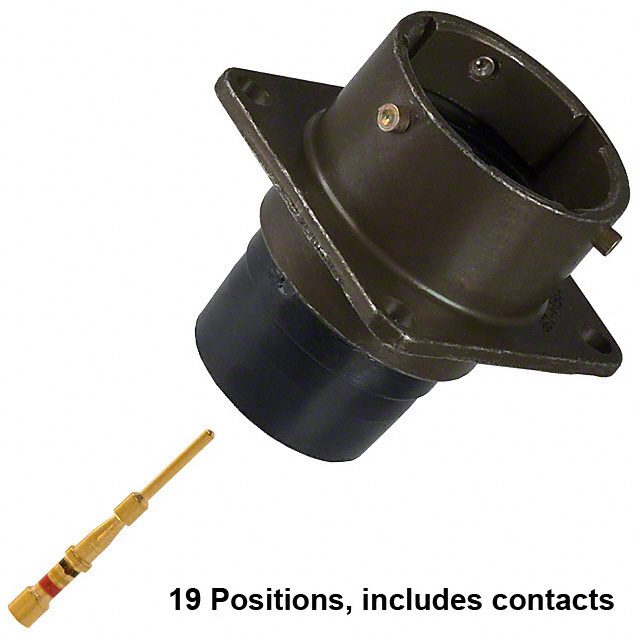

MS3122E14-19P

Active

Amphenol Aerospace Operations

CONN RCPT MALE 19POS GOLD CRIMP

Search across all available documentation for this part.

Active

Amphenol Aerospace Operations

CONN RCPT MALE 19POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	MS3122E14-19P

Applications	Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military
Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Fastening Type	Bayonet Lock
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Feature	Flange
Number of Positions	19
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-26482 Series I
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum
Shell Size - Insert [Max] [custom]	19
Shell Size - Insert [Min] [custom]	14
Shielding	Unshielded
Termination	Crimp

Part	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Contact Material	Shell Finish	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Number of Positions	Color	Termination	Primary Material	Shielding	Applications	Qualification	Ingress Protection	Insert Material	Connector Type	Orientation	Mounting Feature	Grade	Shell Material	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]
Amphenol Aerospace Operations MS3122E14-19S(LC)
Amphenol Aerospace Operations MS3122E14-18P	Bayonet Lock	-55 °C	125 °C	Gold	Copper Alloy	Olive Drab Chromate over Cadmium	14	18	18	Olive Drab	Crimp	Metal	Unshielded	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	MIL-DTL-26482 Series I	Environment Resistant	Neoprene	Male Pins Receptacle	N	Flange	Military	Aluminum
Amphenol Aerospace Operations MS3122E14-19P	Bayonet Lock	-55 °C	125 °C	Gold	Copper Alloy	Olive Drab Chromate over Cadmium			19	Olive Drab	Crimp	Metal	Unshielded	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	MIL-DTL-26482 Series I	Environment Resistant	Neoprene	Male Pins Receptacle	N	Flange	Military	Aluminum	19	14

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

19 Position Circular Connector Receptacle, Male Pins Crimp
