2FA53-73
ActiveCarling Technologies

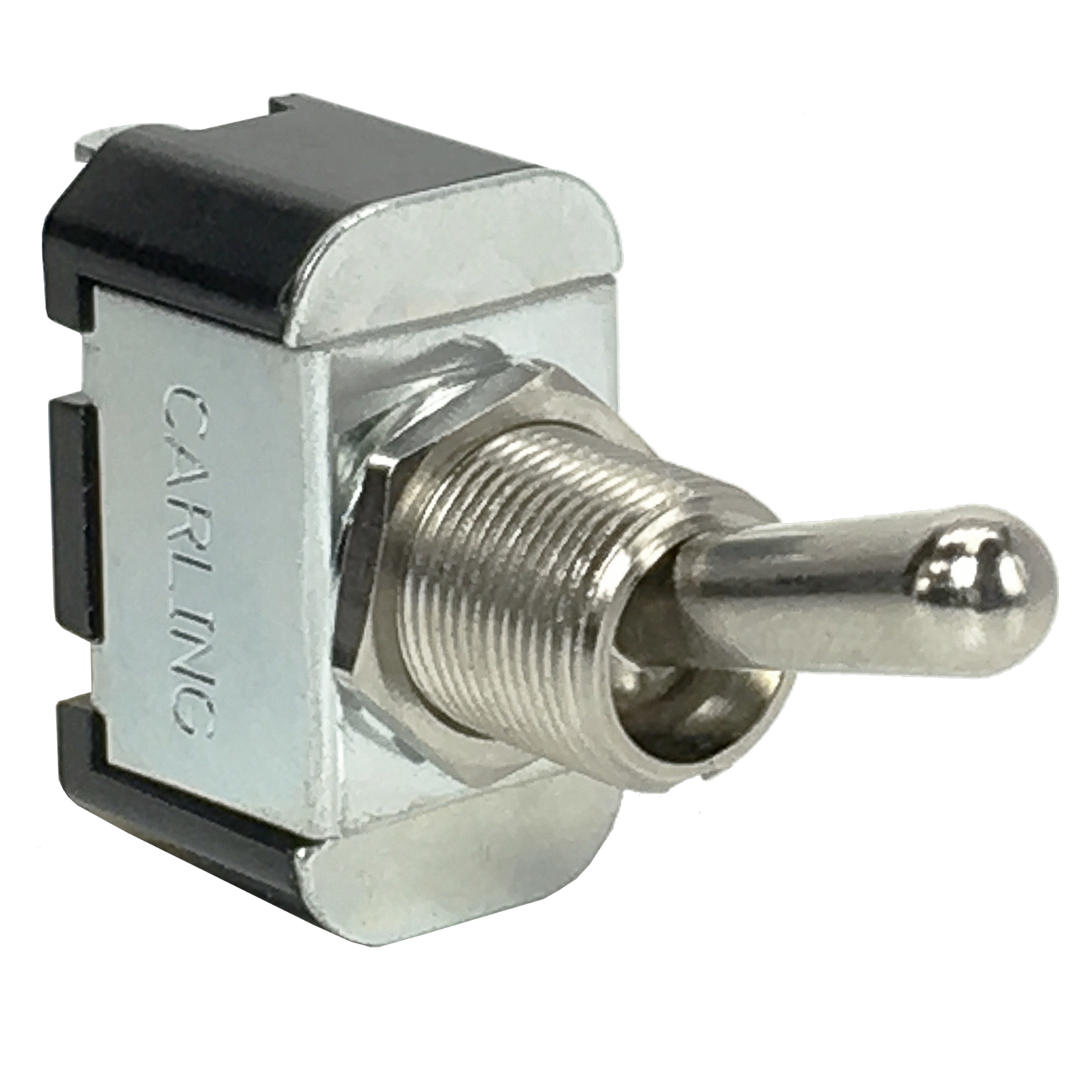

SWITCH TOGGLE SPST 15A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2FA53-73
ActiveCarling Technologies
SWITCH TOGGLE SPST 15A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2FA53-73 | 2FA53 Series |
|---|---|---|
| Actuator Length [x] | 17.45 mm | 10.31 - 50.8 mm |
| Actuator Type | Standard Round | Standard Round |
| Bushing Thread | 15/32-32 | 15/32-32 |
| Circuit | SPST | SPST |
| Current Rating (Amps) | 15 A | 15 A |
| Electrical Life | 50000 Cycles | 50000 Cycles |
| Illumination | Non-Illuminated | Non-Illuminated |
| Operating Temperature [Max] | 65.6 °C | 65.6 °C |
| Operating Temperature [Min] | -17.8 °C | -17.8 °C |
| Panel Cutout Dimensions [diameter] | 12.7 mm | 12.7 mm |
| Switch Function | On-Off | On-Off |
| Termination Style | Solder Lug | Quick Connect - 0.250" (6.3mm), Solder Lug |
| Voltage Rating - AC | 125 V | 125 V |
2FA53 Series
SWITCH TOGGLE SPST 15A 125V
| Part | Actuator Type | Electrical Life | Switch Function | Illumination | Panel Cutout Dimensions [diameter] | Current Rating (Amps) | Termination Style | Voltage Rating - AC | Circuit | Operating Temperature [Max] | Operating Temperature [Min] | Bushing Thread | Actuator Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Carling Technologies 2FA53-73/END TABS | Standard Round | 50000 Cycles | On-Off | Non-Illuminated | 12.7 mm | 15 A | Quick Connect - 0.250" (6.3mm) | 125 V | SPST | 65.6 °C | -17.8 °C | 15/32-32 | 17.45 mm |
Carling Technologies 2FA53-73/TABS/HDW ASSM | Standard Round | 50000 Cycles | On-Off | Non-Illuminated | 12.7 mm | 15 A | Quick Connect - 0.250" (6.3mm) | 125 V | SPST | 65.6 °C | -17.8 °C | 15/32-32 | 17.45 mm |
Carling Technologies 2FA53-73/2 HEX | Standard Round | 50000 Cycles | On-Off | Non-Illuminated | 12.7 mm | 15 A | Solder Lug | 125 V | SPST | 65.6 °C | -17.8 °C | 15/32-32 | 17.45 mm |
Carling Technologies 2FA53-78/.187 TABS | Standard Round | 50000 Cycles | On-Off | Non-Illuminated | 12.7 mm | 15 A | Quick Connect - 0.250" (6.3mm) | 125 V | SPST | 65.6 °C | -17.8 °C | 15/32-32 | 17.45 mm |
Carling Technologies 2FA53-78/TABS | Standard Round | 50000 Cycles | On-Off | Non-Illuminated | 12.7 mm | 15 A | Quick Connect - 0.250" (6.3mm) | 125 V | SPST | 65.6 °C | -17.8 °C | 15/32-32 | 17.45 mm |
Carling Technologies 2FA53-63/TABS | Standard Round | 50000 Cycles | On-Off | Non-Illuminated | 12.7 mm | 15 A | Quick Connect - 0.250" (6.3mm) | 125 V | SPST | 65.6 °C | -17.8 °C | 15/32-32 | 14.28 mm |
Carling Technologies 2FA53-63 | Standard Round | 50000 Cycles | On-Off | Non-Illuminated | 12.7 mm | 15 A | Solder Lug | 125 V | SPST | 65.6 °C | -17.8 °C | 15/32-32 | 14.28 mm |
Carling Technologies 2FA53-73/.187 TABS | Standard Round | 50000 Cycles | On-Off | Non-Illuminated | 12.7 mm | 15 A | Quick Connect - 0.250" (6.3mm) | 125 V | SPST | 65.6 °C | -17.8 °C | 15/32-32 | 17.45 mm |
Carling Technologies 2FA53-73 | Standard Round | 50000 Cycles | On-Off | Non-Illuminated | 12.7 mm | 15 A | Solder Lug | 125 V | SPST | 65.6 °C | -17.8 °C | 15/32-32 | 17.45 mm |
Carling Technologies 2FA53-73/TABS/272-06747 | Standard Round | 50000 Cycles | On-Off | Non-Illuminated | 12.7 mm | 15 A | Quick Connect - 0.250" (6.3mm) | 125 V | SPST | 65.6 °C | -17.8 °C | 15/32-32 | 17.45 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 14 | $ 7.86 | |
Description
General part information
2FA53 Series
Toggle Switch SPST Panel Mount
