2FA53-78/TABS

Active

Carling Technologies

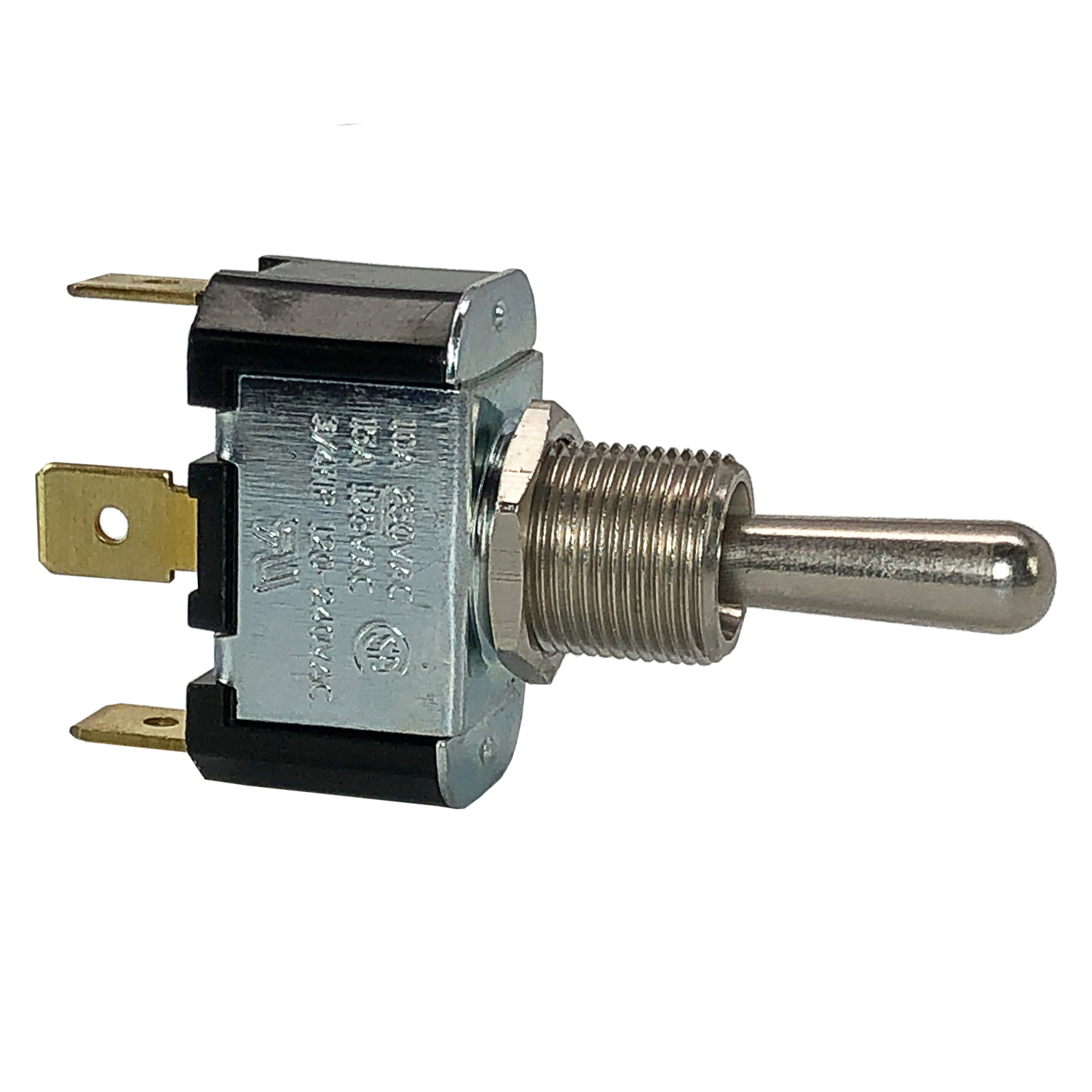

TOGGLE SWITCH, SEALED, ON-NONE-OFF, SPST, NON ILLUMINATED, F SERIES, PANEL MOUNT, 15 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

2FA53-78/TABS

Active

Carling Technologies

TOGGLE SWITCH, SEALED, ON-NONE-OFF, SPST, NON ILLUMINATED, F SERIES, PANEL MOUNT, 15 A

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	13	$ 8.66
Newark	Each	10	$ 9.26
		25	$ 8.13
		50	$ 7.41
		100	$ 7.01
		250	$ 6.83

Description

General part information

2FA53 Series

Toggle Switch SPST Panel Mount

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet

Specification	2FA53-78/TABS	2FA53 Series

Actuator Length [x]	17.45 mm	10.31 - 50.8 mm
Actuator Type	Standard Round	Standard Round
Bushing Thread	15/32-32	15/32-32
Circuit	SPST	SPST
Current Rating (Amps)	15 A	15 A
Electrical Life	50000 Cycles	50000 Cycles
Illumination	Non-Illuminated	Non-Illuminated
Operating Temperature [Max]	65.6 °C	65.6 °C
Operating Temperature [Min]	-17.8 °C	-17.8 °C
Panel Cutout Dimensions [diameter]	12.7 mm	12.7 mm
Switch Function	On-Off	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.250" (6.3mm), Solder Lug
Voltage Rating - AC	125 V	125 V

Part	Actuator Type	Electrical Life	Switch Function	Illumination	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Termination Style	Voltage Rating - AC	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Bushing Thread	Actuator Length [x]
Carling Technologies 2FA53-73/END TABS	Standard Round	50000 Cycles	On-Off	Non-Illuminated	12.7 mm	15 A	Quick Connect - 0.250" (6.3mm)	125 V	SPST	65.6 °C	-17.8 °C	15/32-32	17.45 mm
Carling Technologies 2FA53-73/TABS/HDW ASSM	Standard Round	50000 Cycles	On-Off	Non-Illuminated	12.7 mm	15 A	Quick Connect - 0.250" (6.3mm)	125 V	SPST	65.6 °C	-17.8 °C	15/32-32	17.45 mm
Carling Technologies 2FA53-73/2 HEX	Standard Round	50000 Cycles	On-Off	Non-Illuminated	12.7 mm	15 A	Solder Lug	125 V	SPST	65.6 °C	-17.8 °C	15/32-32	17.45 mm
Carling Technologies 2FA53-78/.187 TABS	Standard Round	50000 Cycles	On-Off	Non-Illuminated	12.7 mm	15 A	Quick Connect - 0.250" (6.3mm)	125 V	SPST	65.6 °C	-17.8 °C	15/32-32	17.45 mm
Carling Technologies 2FA53-78/TABS	Standard Round	50000 Cycles	On-Off	Non-Illuminated	12.7 mm	15 A	Quick Connect - 0.250" (6.3mm)	125 V	SPST	65.6 °C	-17.8 °C	15/32-32	17.45 mm
Carling Technologies 2FA53-63/TABS	Standard Round	50000 Cycles	On-Off	Non-Illuminated	12.7 mm	15 A	Quick Connect - 0.250" (6.3mm)	125 V	SPST	65.6 °C	-17.8 °C	15/32-32	14.28 mm
Carling Technologies 2FA53-63	Standard Round	50000 Cycles	On-Off	Non-Illuminated	12.7 mm	15 A	Solder Lug	125 V	SPST	65.6 °C	-17.8 °C	15/32-32	14.28 mm
Carling Technologies 2FA53-73/.187 TABS	Standard Round	50000 Cycles	On-Off	Non-Illuminated	12.7 mm	15 A	Quick Connect - 0.250" (6.3mm)	125 V	SPST	65.6 °C	-17.8 °C	15/32-32	17.45 mm
Carling Technologies 2FA53-73	Standard Round	50000 Cycles	On-Off	Non-Illuminated	12.7 mm	15 A	Solder Lug	125 V	SPST	65.6 °C	-17.8 °C	15/32-32	17.45 mm
Carling Technologies 2FA53-73/TABS/272-06747	Standard Round	50000 Cycles	On-Off	Non-Illuminated	12.7 mm	15 A	Quick Connect - 0.250" (6.3mm)	125 V	SPST	65.6 °C	-17.8 °C	15/32-32	17.45 mm
