6385G1
ActiveAnderson Power Products, Inc.

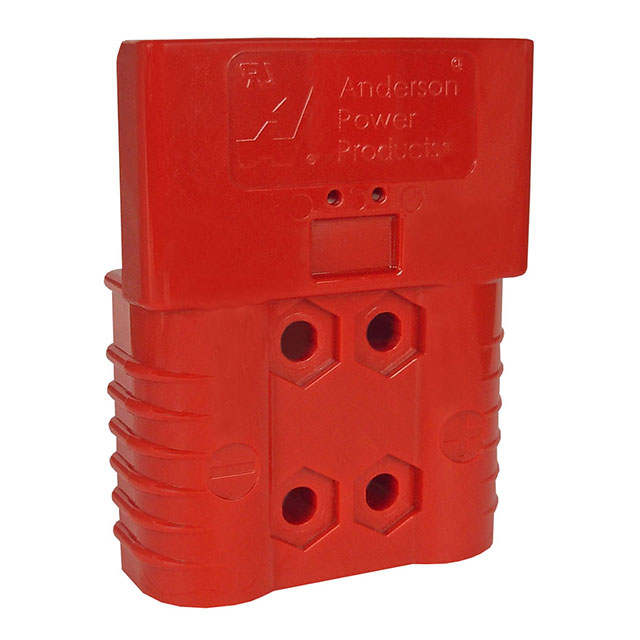

HEAVY DUTY POWER CONNECTORS SBX175 HOUSING ONLY RED
6385G1
ActiveAnderson Power Products, Inc.
HEAVY DUTY POWER CONNECTORS SBX175 HOUSING ONLY RED
Description
General part information
SBX175 Series
2 Position Blade Type Power Housing Connector Non-Gendered Red
Technical Specifications
Parameters and characteristics for this part
| Specification | 6385G1 |
|---|---|
| Color | Red |
| Connector Type | Non-Gendered |
| Contact Termination | Crimp |
| Contact Type | Non-Gendered |
| Current Rating | 175 A |
| Fastening Type | Spring Retention |
| Material - Insulation | PC, Polycarbonate |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -20 °C |
| Stacking Direction | Side to Side |
| Voltage Rating | 600 V |
